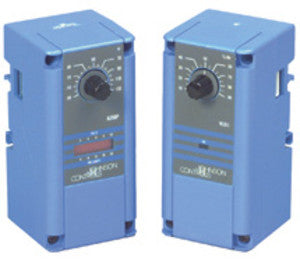

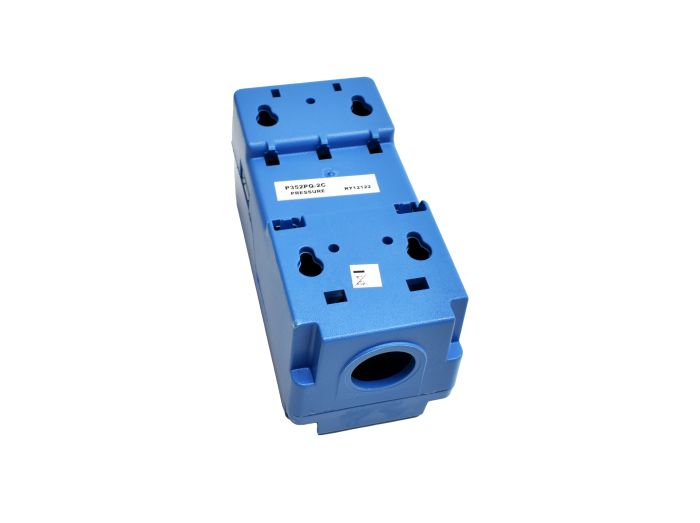

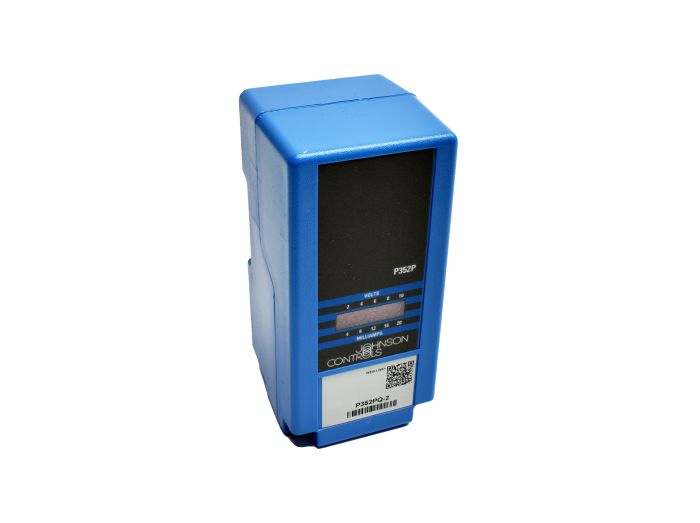

Johnson Controls P352PQ-2 Proportional Pressure Control

Product Description

The Johnson Controls P352PQ-2 is a reliable proportional pressure control device. It operates with a twenty-four VAC input voltage and delivers 0-10 VDC and 0-20 mA control outputs. This product is specifically designed for HVAC and Building Automation Systems (BAS). It is compatible with plug-in accessory modules for both single-stage and multi-stage applications.

• Pressure range from 0.025 to 0.25 inches of water column
• Proportional plus Integral (PI) control functionality
• Control outputs of 0-10 VDC and 0-20 mA

Product Highlights

This control device is ideal for maintaining optimal pressure levels in HVAC systems. It features a user-friendly interface and can adapt to various control needs.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: P352PQ-2

Technical Specifications

• Type: Stand-Alone
• Supply Voltage (Nominal): 24 VAC
• Control Outputs: 0-10 VDC, 0-20 mA
• Net Weight: 0.425 lbs
• Gross Weight: 0.795 lbs
• Description: Proportional Pressure Control; Range 0.025 - 0.25 in. Wc
