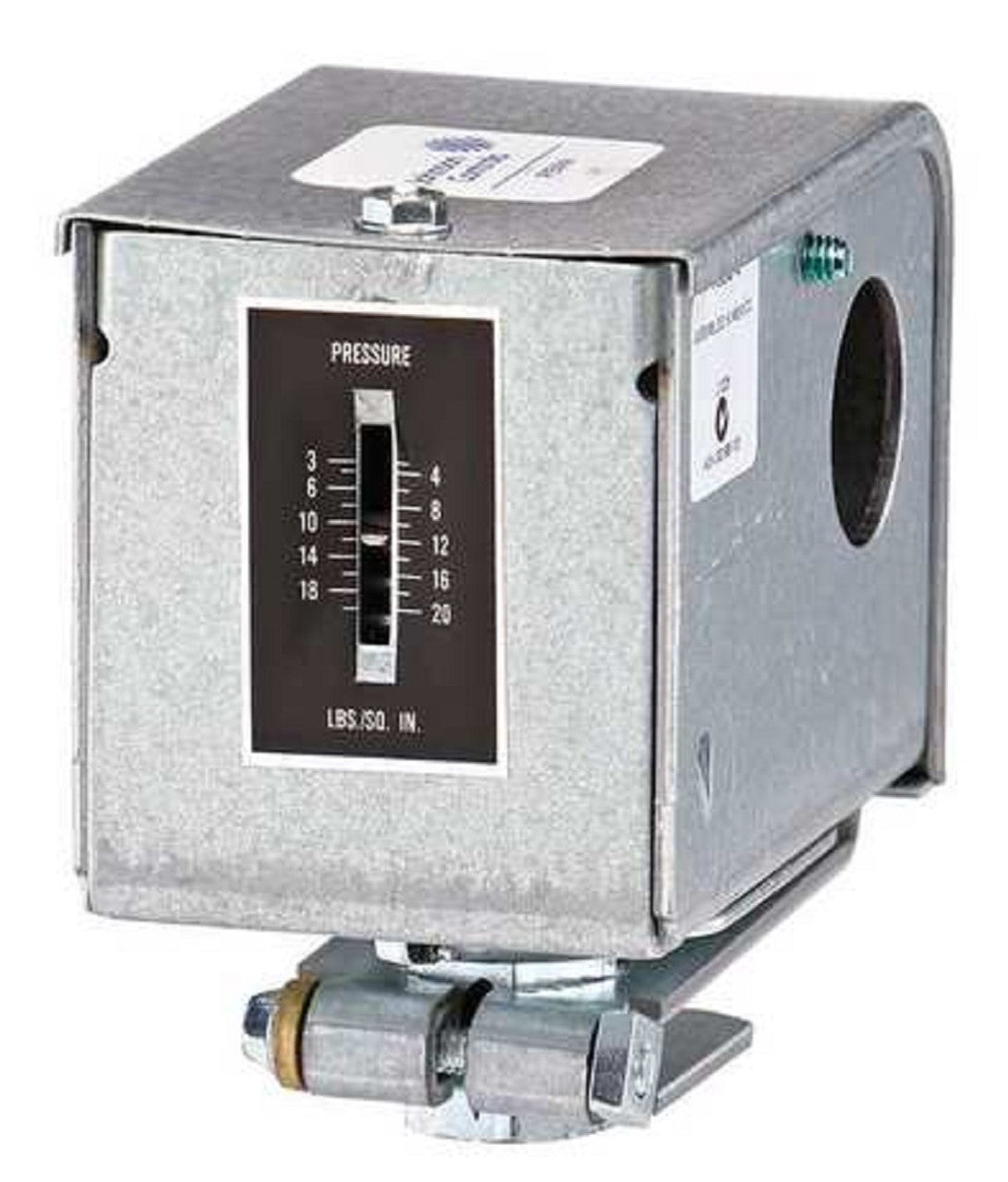

Johnson Controls P10PA-11C Penn Series P10 Low Pressure Control, 3 Stages, SPST Contact, 3-20 psi, 1/8 Barbed Fitting

Product Description

The Johnson Controls P10PA-11C is a low pressure control device designed to regulate air pressure within a system. This model operates within a range of three to twenty psi and features three stages of control with single pole single throw (SPST) contacts. It includes a one-eighth inch barbed fitting for easy installation with compatible tubing.

• Operates within a range of 3 to 20 psi.
• Features SPST contact for straightforward functionality.
• Compact size for easy placement.

Product Highlights

The P10PA-11C is ideal for HVAC applications where precise control of air pressure is necessary, making it suitable for various pneumatic control scenarios within heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model Number: P10PA-11C

Technical Specifications

• Number of Stages: 3
• Control Air Pressure: 3 to 20 psi
• Differential Pressure: Stage 1 - 3 psi, Stages 2 and 3 - 0.4 psi
• Contact Action: 3 SPST
• Barbed Air Connections: 1/8 inch
• Max Ambient Temperature: 140 degrees F
• Voltage: 120-277V AC
• Dimensions: Height - 3 7/8 inches, Width - 4 3/32 inches, Depth - 3 3/16 inches
• Standards: UL / CSA
• Country of Origin: Mexico
