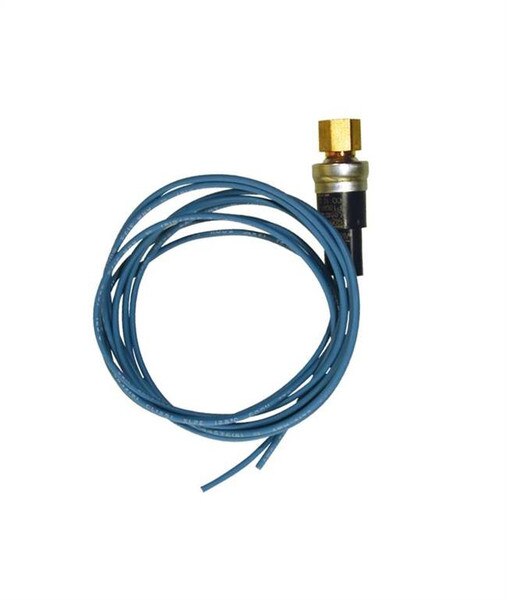

Johnson Controls P100AP-354C Encapsulated Pressure Control

Product Description

The Johnson Controls P100AP-354C is a compact encapsulated pressure control designed for direct-mount applications. This product features an On/Off switch with a non-adjustable setpoint. It is suitable for cycling condenser fans and has an automatic reset function.

• Compact and economical design
• Direct-mount installation
• Factory-calibrated pressure setpoints

Product Highlights

This device offers reliable pressure control for HVAC systems.

Product Information

Standard Information

• Type: Fan Cycling
• Style: Encapsulated

Technical Specifications

• Connection: 1/4 F Flare
• Range: Open 210 Close 275
• Switching: SPST
• Close Pressure: 275 psig
• Connection Size: 1/4 in
• Lead Length: 48 in
• Mounting Type: Direct
• Open Pressure: 210 psig
• Reset Type: Automatic
• Voltage Rating: 120/240 VAC
• Temperature Rating: -20 to 150 deg F Ambient
