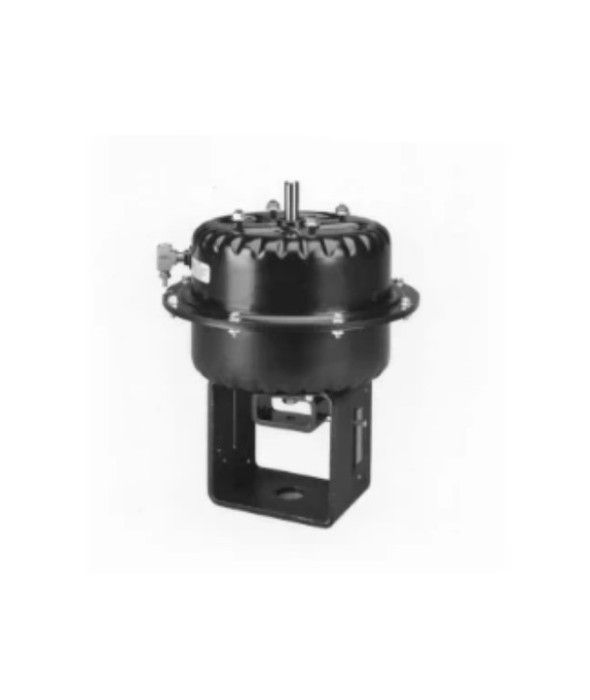

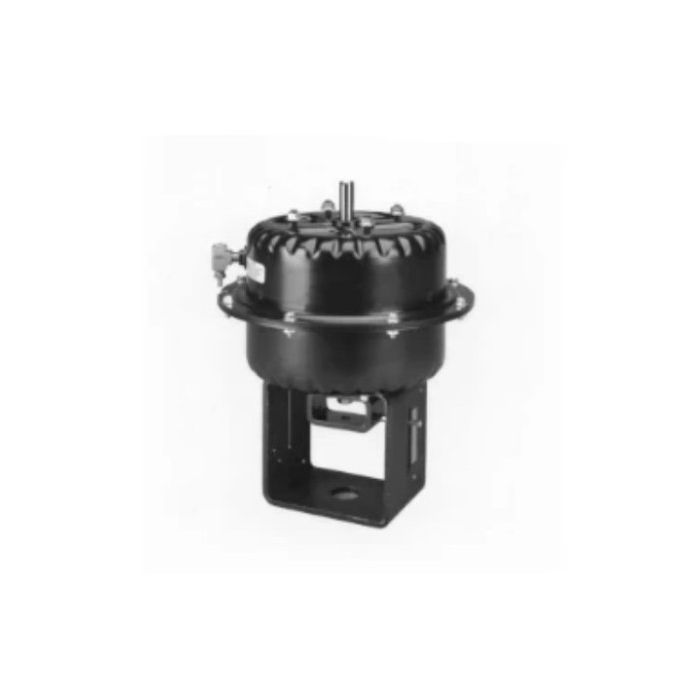

Johnson Controls MP843C001C Pneumatic Valve Actuator Spring Return

Product Description

The Johnson Controls MP843C001C is a pneumatic valve actuator designed for reliable operation in various HVAC applications. This actuator features a spring return mechanism that ensures effective valve control. It includes a barbed fitting for one-fourth inch outer diameter polytubing air connection. The actuator functions in reverse acting mode and is normally open, with a three-quarter inch stroke and operates between three to seven pounds per square inch gauge.

• Universal design for hot water, chilled water, and steam applications.
• Reversible action for selectable spring-return-up or spring-return-down capabilities.
• Strong, corrosion-resistant housing for longevity.

Product Highlights

The actuator is equipped with a position indicator for easy monitoring of the valve stem position. The MP8000-6703 mounting kit is included for installation convenience.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: MP843C001C

Technical Specifications

• Housing: Die-formed carbon steel, coated with corrosion-resistant finish
• Operating Conditions: -20 degrees Fahrenheit to 150 degrees Fahrenheit (-29 degrees Celsius to 66 degrees Celsius)
