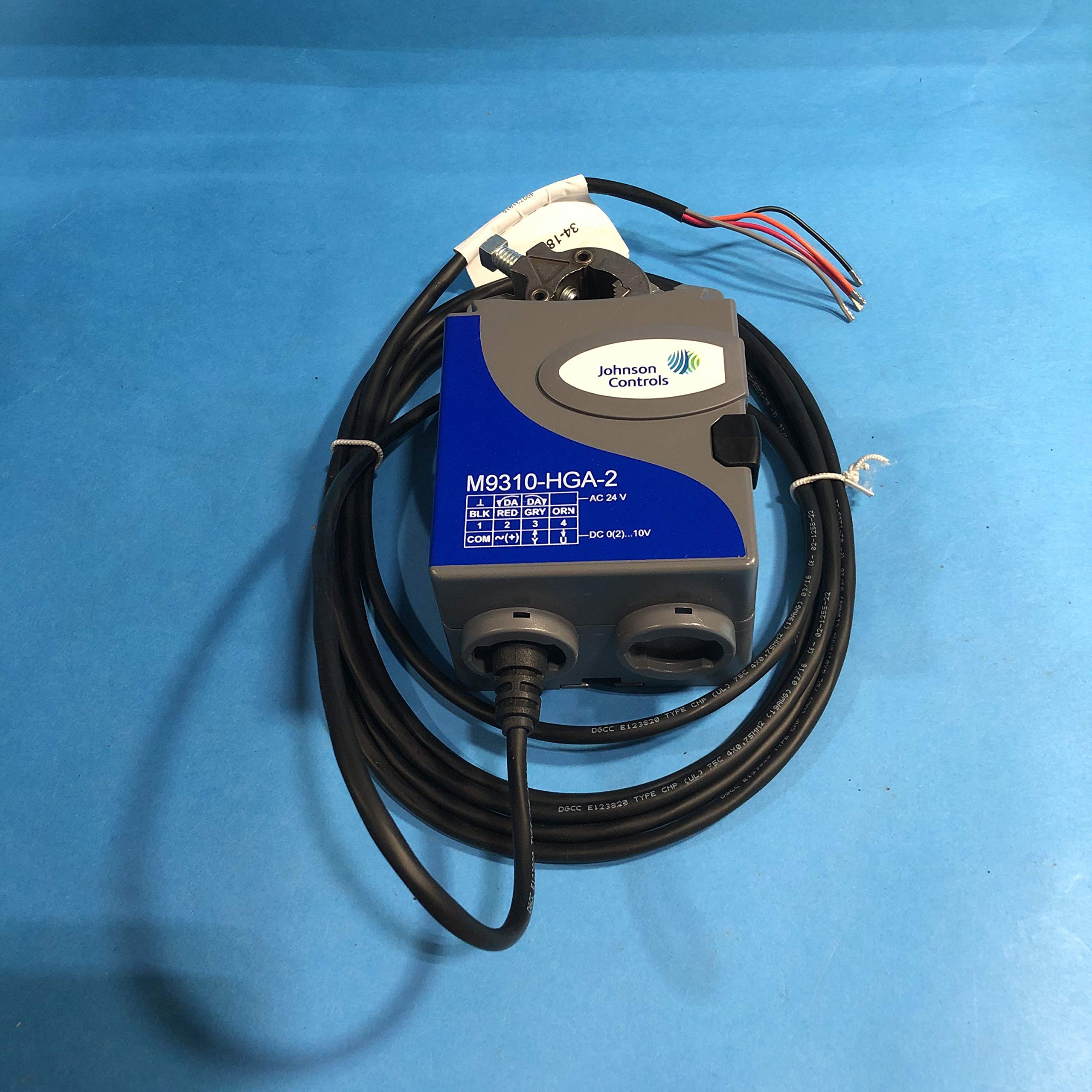

Johnson Controls M9310-HGA-2 Damper Actuator, 89 in-lb. Running Torque

Product Description

The Johnson Controls M9310-HGA-2 Damper Actuator is an essential component for HVAC systems, designed to provide precise control of dampers. This actuator offers 89 in-lb of running torque, ensuring reliable operation and control.

• 24V powered actuator
• 89 in-lb running torque
• Non-spring return design

Product Highlights

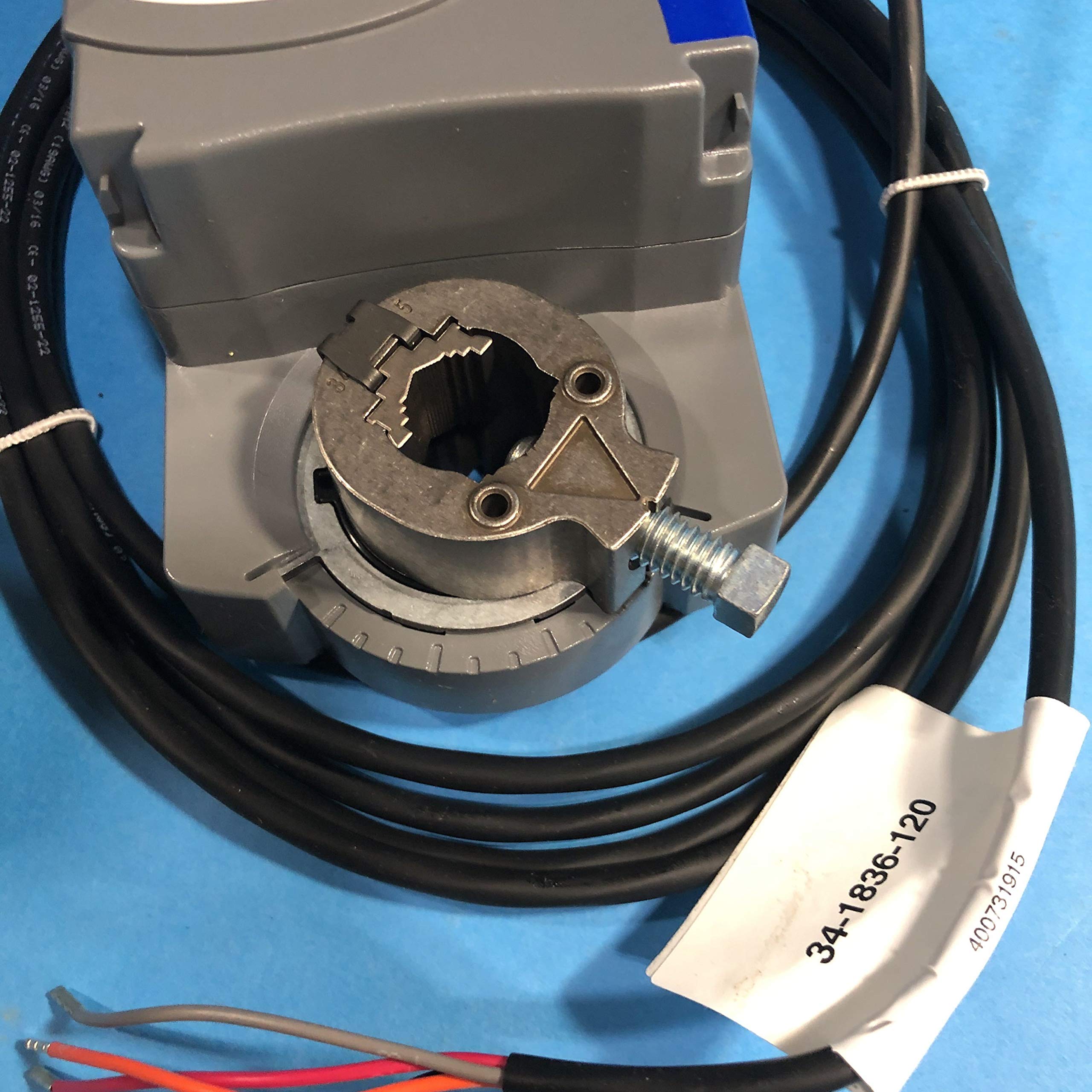

This damper actuator boasts on/off and floating control models with adjustable stroke and electronic stall detection. It includes a non-spring return mechanism and features a high-speed operation mode. It is well-suited for applications requiring accurate damper positioning without additional linkages, using a universal clamp for round or square damper shafts.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: M9310-HGA-2

Technical Specifications

• Torque: 89 in-lb
• Voltage: 24V AC/DC
• Signal Type: Floating
• Stroke Degrees: 35 to 95
• Switch Type: 1 SPDT or 2 SPDT
• Power Rating: 1.3W
• Mounting Type: Direct Mount
• Dimensions: Depth 2.44 inches, Width 3.19 inches, Height 5.41 inches
• Ambient Temp. Range: -22 to 140 degrees F
• Electrical Connections: 120-inch 19 AWG Plenum Cable
• Country of Origin: Mexico
