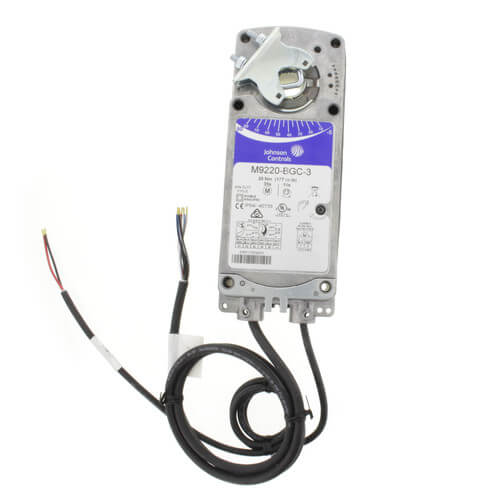

Johnson Controls M9220-BGC-3 Direct Coupled, 177 lb-in Spring Return

Product Description

The Johnson Controls M9220-BGC-3 is a 24 VAC actuator designed for efficient control in HVAC systems. It features a reversible mounting design that simplifies installation, allowing for spring return in either direction. The actuator is equipped with electronic stall detection, extending its life by deactivating the motor during overload conditions. Additionally, it includes a removable coupler for adapting to various damper shaft lengths.

• Reversible mounting design simplifies installation.
• Electronic stall detection enhances actuator life.
• Locking manual override with auto release for manual positioning.

Product Highlights

This actuator is ideal for HVAC applications, providing reliable performance in various environments. With a torque rating of 177 lb-in, it can handle demanding tasks efficiently.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: M9220-BGC-3

Technical Specifications

• Power Consumption: 24.6 VA Running, 7.7 VA Holding
• Operating Conditions: -40 F to 131 F (-40 C to 55 C)
• Electrical Connection: 48 inches, 18 AWG wire leads
• Auxiliary Switch: 2 x SPDT
• Housing Rating: NEMA 2, IP54
