JOHNSON CONTROLS HT-69020NW-0 Wall Mount RH Transmitter

Product Description

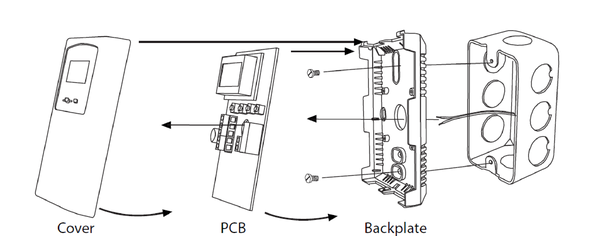

The JOHNSON CONTROLS HT-69020NW-0 is a wall mount relative humidity transmitter that effectively monitors room humidity levels. Designed for accuracy, it uses a reliable RH sensor proven in the field. The device features a low-profile housing, making it suitable for various environments. It provides three selectable linear output options including 4 mA to 20 mA, 0 VDC to 5 VDC, and 0 VDC to 10 VDC. Users should refer to the installation instructions to ensure proper setup and prevent damage.

• Monitors room relative humidity levels
• Features a highly accurate and field-proven RH sensor
• Offers selectable linear RH output signals

Product Highlights

This humidity transmitter is essential for HVAC applications where precise humidity measurement is crucial.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• MPN: HT-69020NW-0

Technical Specifications

• Sensor type: Thermoset polymer-based capacitive
• Accuracy: ±2% RH or ±3% RH from 5% RH to 95% RH
• Measurement range: 0% RH to 100% RH, non-condensing
• Resolution: 0.01% RH
• Hysteresis: ±0.8% RH at 77°F (25°C)
• Response time: 8 seconds
