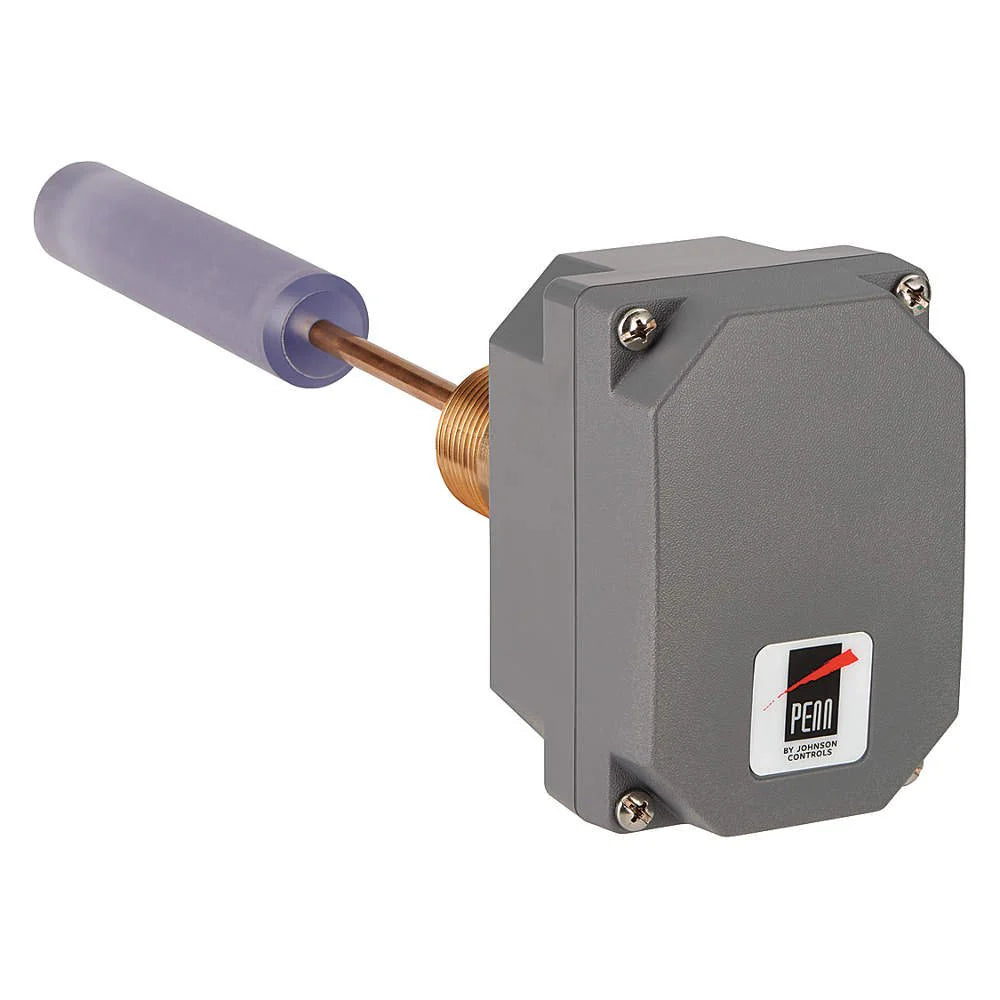

Johnson Controls F263MAC-V01C SPDT Float Switch for Liquid Level Control

Product Description

The Johnson Controls F263MAC-V01C SPDT Float Switch is expertly designed to manage the liquid level within indoor or outdoor contained systems. Suitable for non-hazardous liquids like water, this control unit is pivotal for maintaining optimal operational conditions.

• Efficient operation across a temperature range from 32 to 250 degrees Fahrenheit.
• Dual voltage compatibility, functioning at both 120V and 230V.
• Rugged design, housed in a Type 3R (NEMA)/IP 43 rated enclosure for durability in various environments.

Product Highlights

Equipped with a single-pole, double-throw (SPDT) switch, this device provides reliable control by closing one circuit and opening another as liquid levels fluctuate. Its solid polycarbonate float offers substantial corrosion resistance, making it a long-lasting addition to any system.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: F263MAC-V01C

Technical Specifications

• Material: Body made of plastic with a copper float
• Connection Type: 1 inch NPT threading
• Maximum Pressure: 100 psi
• Voltage: Operates on either 120V or 230V
• Enclosure Type: Type 3R (NEMA)/IP 43
• Size: Dimensions of 12.25 inches in length by 4.5 inches width and height
• Weight: 2.02 pounds
• Compliance: C-Tick, CE, UL certified
