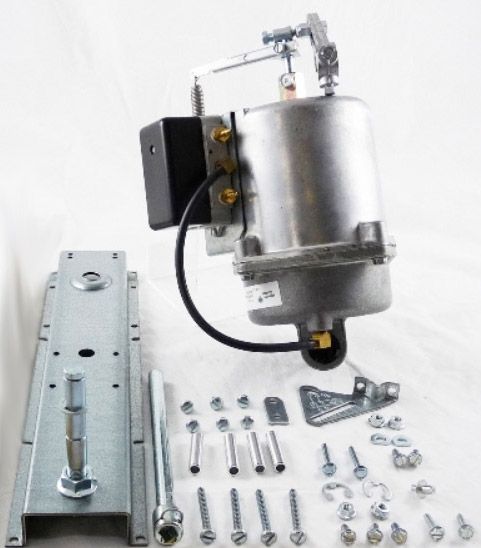

Johnson Controls D-3153-3 Linear Pneumatic Actuator 5 to 10 psi

Product Description

Johnson Controls D-3153-3 is a linear pneumatic actuator designed for reliable control of dampers in HVAC applications. It operates within a pressure range of 5 to 10 psi. The actuator supports a maximum air pressure of thirty psi and features a three-inch stroke length. This model integrates with pneumatic controllers or electro-pneumatic transducers for optimized performance.

• Operating PSI Range: 0 to 20
• Net Force Exerted at Eighteen PSI: 150 lb
• Mounting Type: Pivot

Product Highlights

This actuator translates electrical control signals into precise mechanical movements, enabling effective airflow management.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: D-3153-3

Technical Specifications

• Length: 12 inches
• Width: 6 inches
• Height: 6 inches
• Stroke: 3 inches
• Max Air Pressure: 30 psi
• Nominal Spring Range: 5 to 10 psi
• Net Force Exerted @ 18 PSI: 150 lb
• Includes: Mounting bracket
• For Use With: Medium to large dampers
