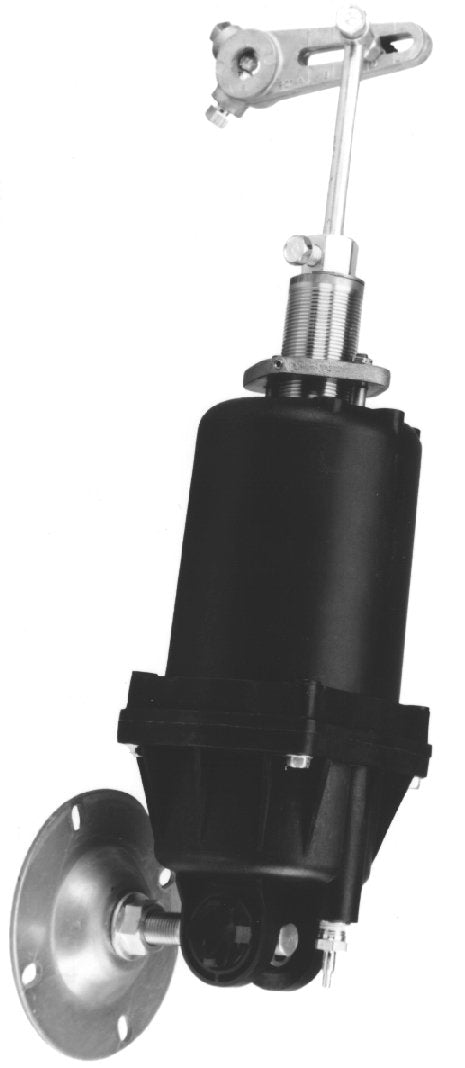

Johnson Controls D-4073-3 Pneumatic Piston Damper Actuator 5 to 10 PSIG Universal Mounting Bracket

Product Description

The Johnson Controls D-4073-3 Pneumatic Piston Damper Actuator is engineered for precise airflow management within HVAC systems. It is suitable for unit ventilators, variable air volume systems, and small ventilating dampers. This model directly replaces the D-3073 and serves as a functional substitute for the D-251 actuators.

• Supports dampers up to 11.7 square feet for two-position actuation
• Constructed with glass-reinforced polymer for durability and chemical resistance
• Features a universal mounting bracket facilitating easy and versatile installations

Product Highlights

This actuator is designed for efficient operation with a nominal spring range of 5 to 10 psi, ensuring reliable performance and energy efficiency.

Product Information

Standard Information

• Model: D-4075
• Origin: United States

Technical Specifications

• Stroke: 3 inches
• Maximum Air Pressure: 25 psi
• Operating PSI Range: 0 to 20 psi
• Length: 11 inches
• Width: 3.875 inches
• Height: 3.875 inches
