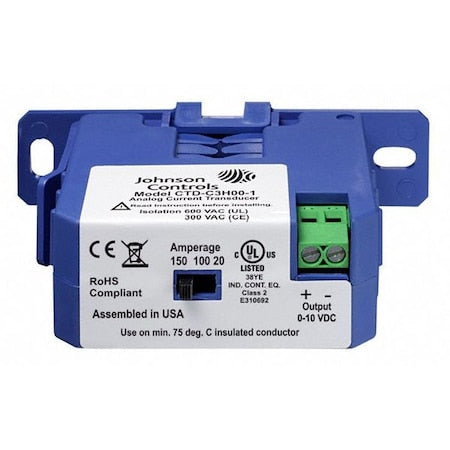

Johnson Controls CTD-C3H00-1 Current Transducer 30/60/120A Multi Range 0 to 10V DC Output

Product Description

The Johnson Controls Current Transducer Device, model CTD-C3H00-1, is engineered to deliver precise monitoring of electrical current across a variety of applications. Its nonintrusive, split core design facilitates seamless integration into existing setups without the need to halt system operations.

• Clamped/split core design for easy installation
• Multiple output options including 4 to 20 mA, 0 to 5 VDC, and 0 to 10 VDC
• Optional snap-on power relay for enhanced functionality

Product Highlights

The Johnson Controls CTD-C3H00-1 is essential for real-time current monitoring, facilitating crucial tasks such as energy management, system troubleshooting, and workflow optimization. Configurable to different amperage settings via a simple slide switch, it serves as a versatile tool for industrial environments.

Product Information

Standard Information

• Brand: Johnson Controls
• Output Range: 0 to 10 VDC

Technical Specifications

• Current Measurement Ranges: 30/60/120 A
• Output Signal: 0 to 10 VDC
• Mounting Type: Split, Foot Mounted
• Self-Powered: Yes
• Dimensions: Length 1.0625 inches, Width 2.5625 inches, Height 2.7188 inches
• Rated Insulation Voltage: 600V AC
• Frequency: 50/60 Hz
