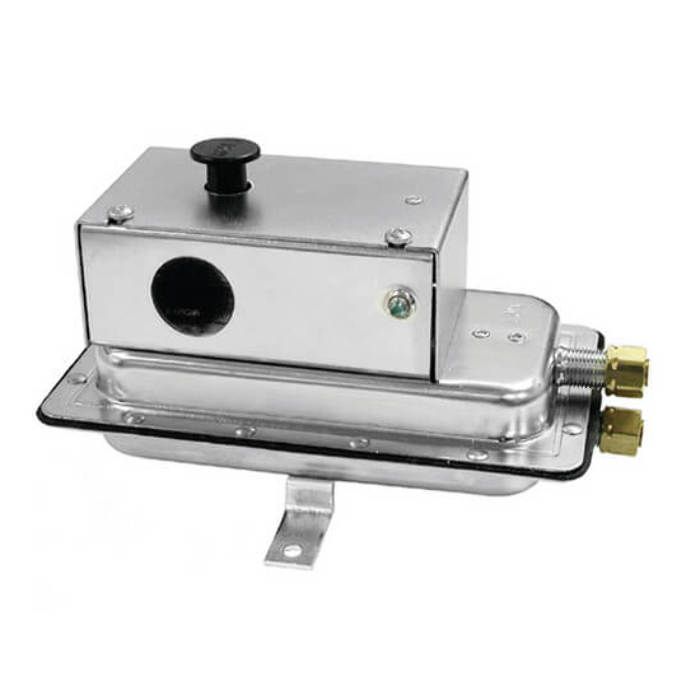

Johnson Controls AFS-305 Air Pressure Sensing Switch

Product Description

The Johnson Controls AFS-305 is an air pressure sensing switch designed for general-purpose applications. It features a field-adjustable range of zero point four inches of water column to twelve inches of water column with a manual reset. The switch utilizes a single pole double throw contact arrangement and includes a quarter-inch outer diameter sample line connection.

• Field adjustable range of 0.40 in to 12 in w.c.
• Manual reset functionality for added control.
• SPDT contact arrangement for versatile applications.

Product Highlights

Ideal for sensing positive, negative, or differential air pressure in HVAC and energy management applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: AFS-305

Technical Specifications

• Shipping Weight: 1.01 lbs
• Dimensions: 4.35 in (L) x 6.25 in (W) x 3.55 in (H)
• Pressure Range: 0.40 in +/- 0.06 in - 12 in w.c.
• Connection Type: 1/4 in O.D. sample line
• Maximum Pressure: 1/2 psi
• Features: Manual reset, SPDT contact arrangement
