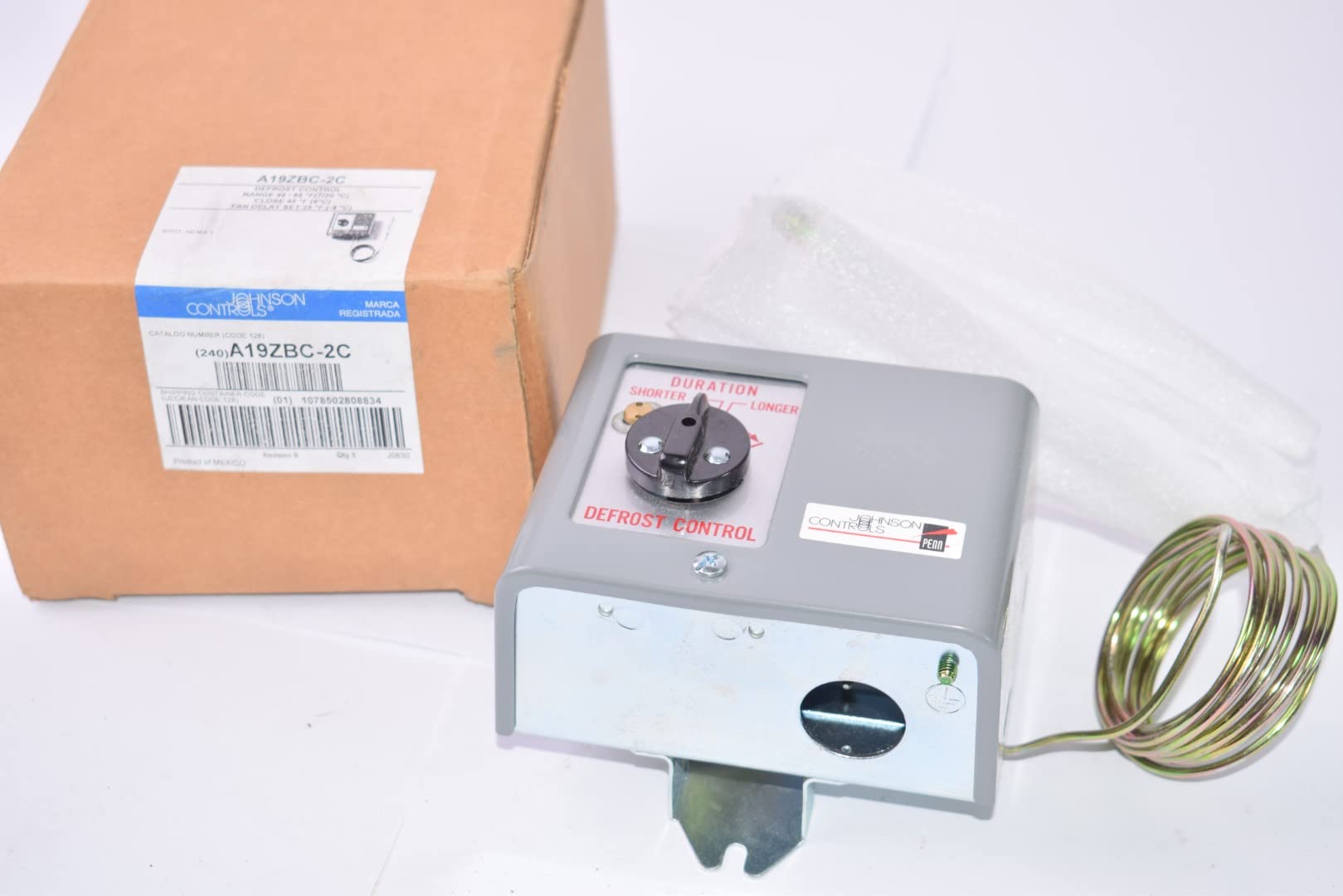

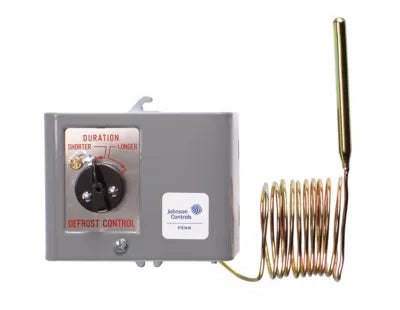

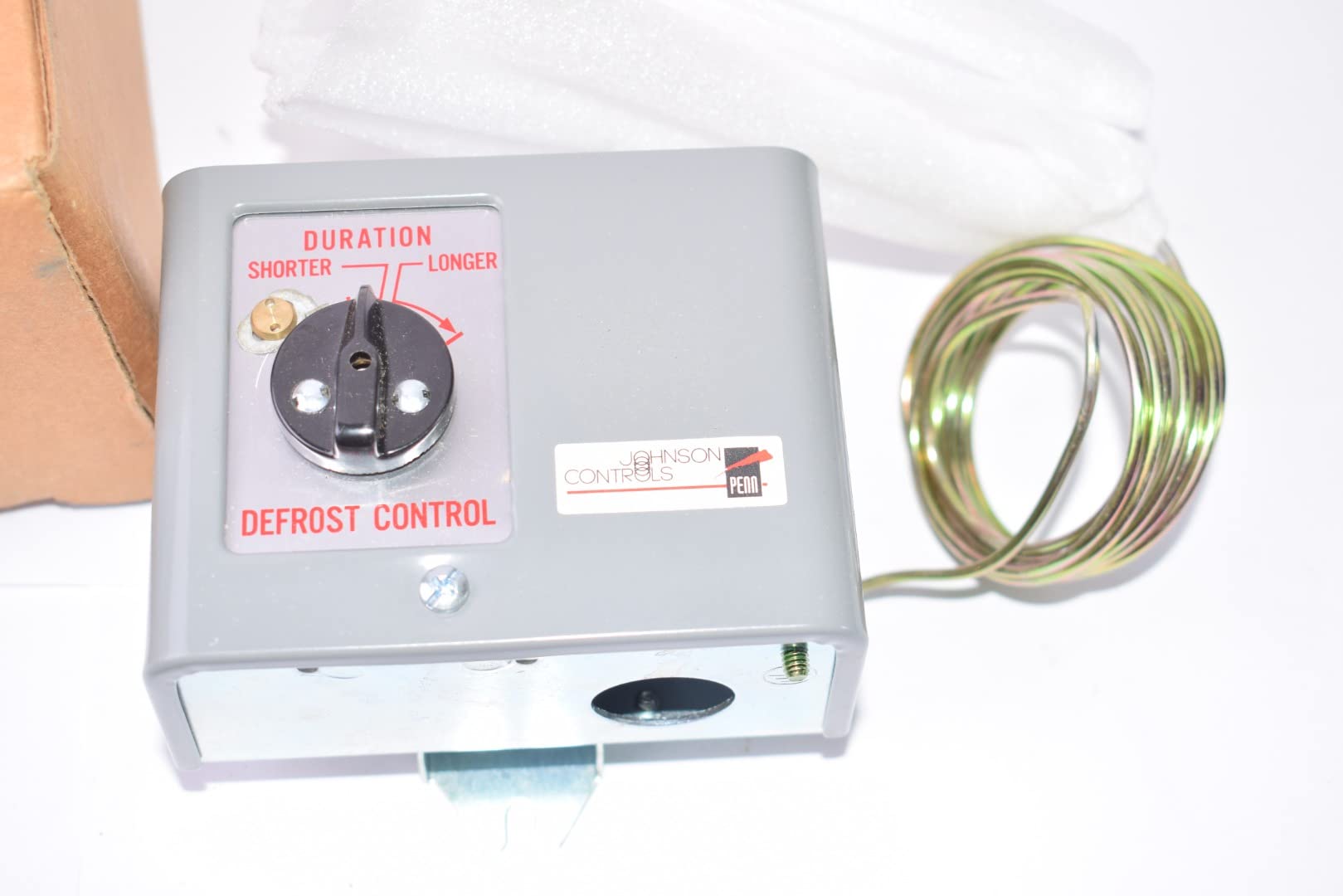

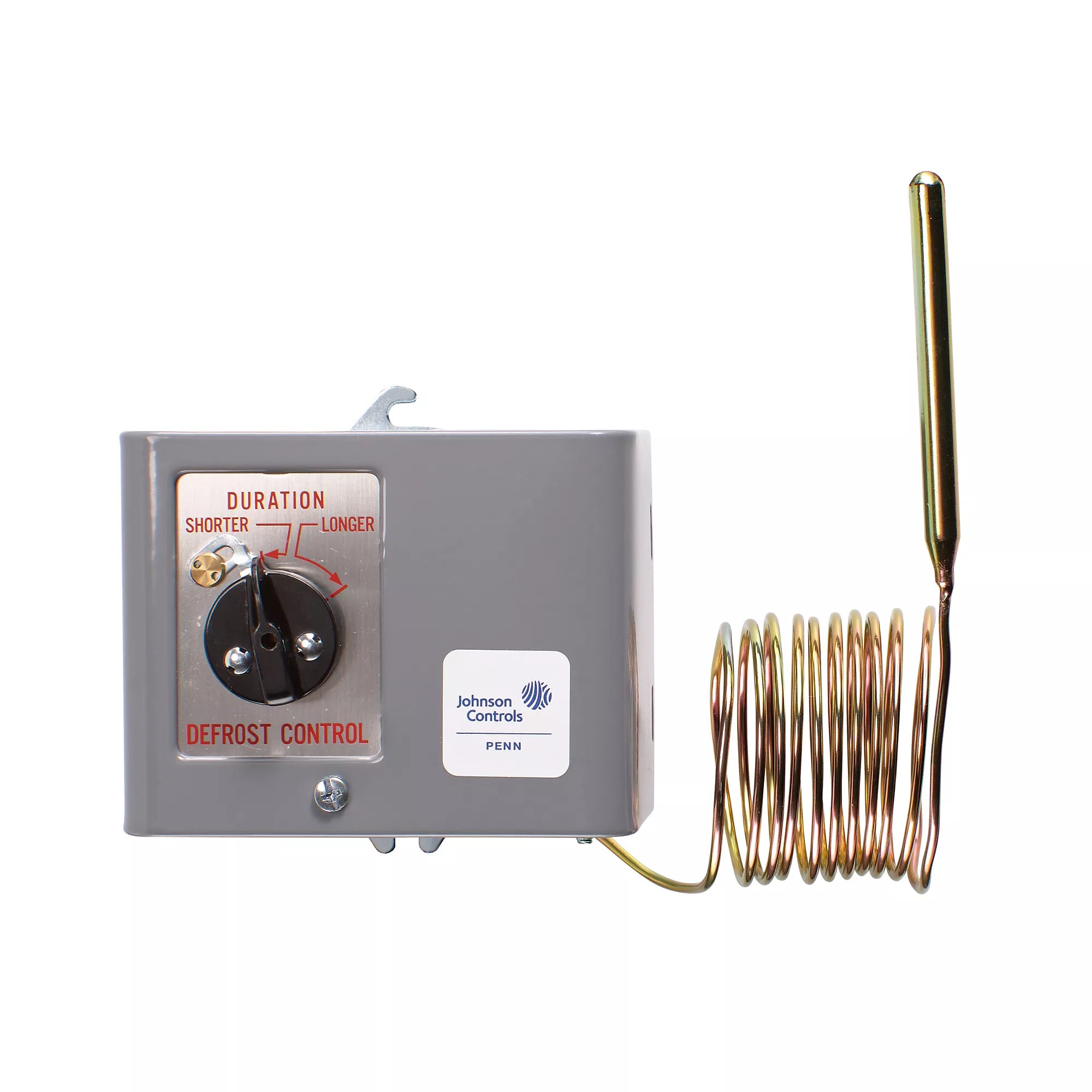

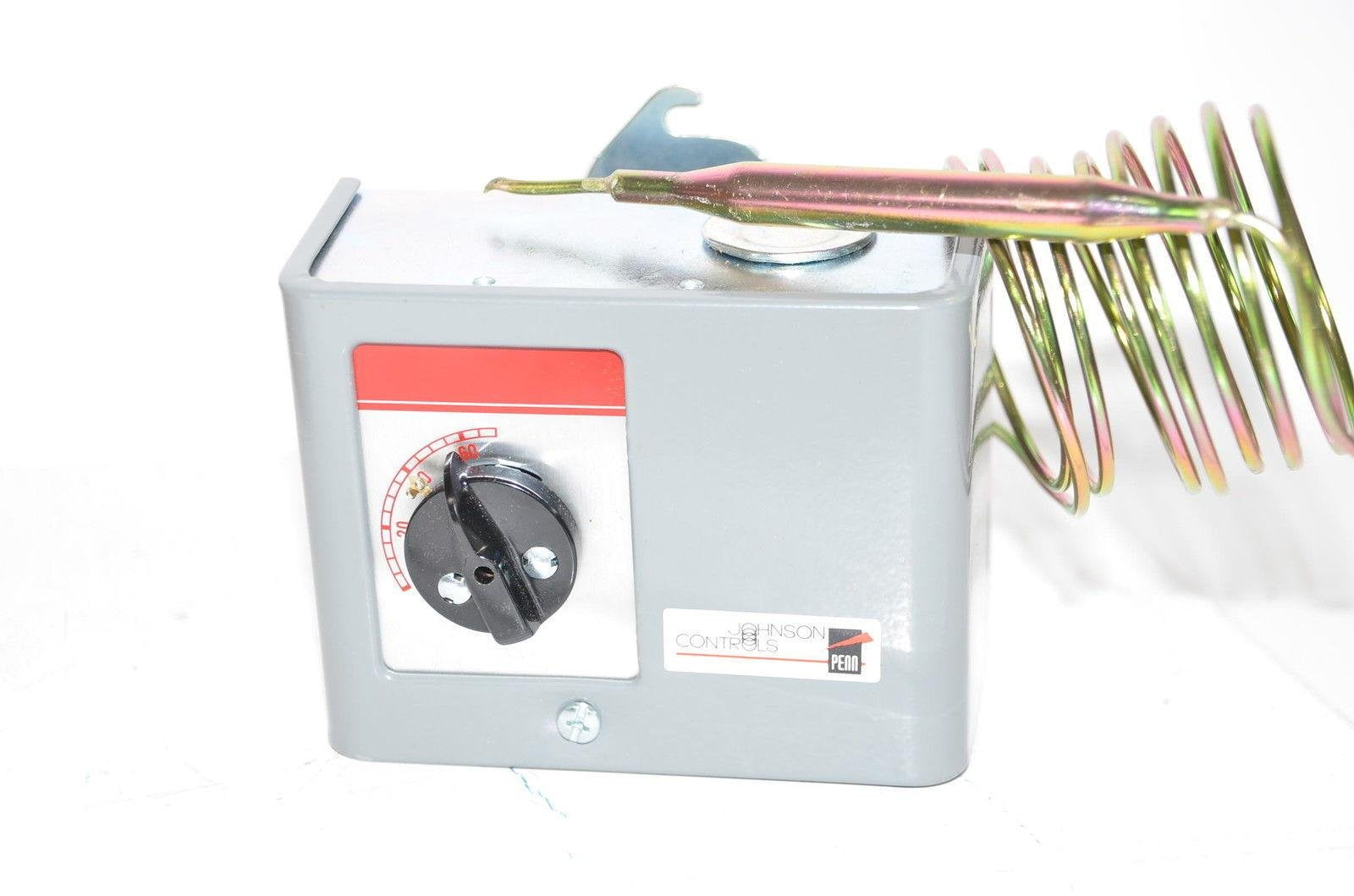

Johnson Controls A19ZBC-2C remote bulb temp control 120/240 VAC

Product Description

The Johnson Controls A19ZBC-2C is a remote bulb temperature control designed for low energy circuits. It operates on 120/240 VAC at 50/60 Hz, featuring single phase and two-stage operation. These compact controls are supplied with a fixed or adjustable differential, indicated by an internal scale plate in Fahrenheit degrees for adjustable models. They are suitable for low energy electrical loads, operating small relays, solenoid valves, and electronic control circuits.

• Snap-acting contacts in a dust-protected enclosure with a liquid-filled sensing element ensure dependability.
• Maintains repeat accuracy, unaffected by barometric pressure or cross-ambient temperature issues.
• Features "Dry Circuit" switches with gold-plated contacts for enhanced performance in low voltage, low current applications.

Product Highlights

This temperature control is ideal for managing low energy electrical loads in various control circuits.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: A19ZBC-2C
• Country of Origin: Mexico

Technical Specifications

• Operating Frequency: 50/60 Hz
• Phase: Single
• Number of Stages: Two
• Input Voltage: 120/240 VAC
• Product Type: HVAC Control Thermostat
• Control Type: Line Voltage
• Series: A19
• Sensor Type: Bulb
• Switch Type: SPDT
• Differential: 4 deg F
• Control Range: 45 - 85 deg F
• Mounting Type: Flat Surface
• Switch Action: Open/Close On Rise
• Enclosure Type: Galvanized Steel
• Current Rating: 16 A
• Sensing Bulb Size: 19/64 Inch Dia x 3-1/8 Inch L
• Number of Switches: 1
• Number of Relay Inputs: 1
• Number of Relay Outputs: 1
• Application Type: Remote Bulb Temperature
• Capillary Length: 72 inches
• System Switching: No
• Fan Switching: No
