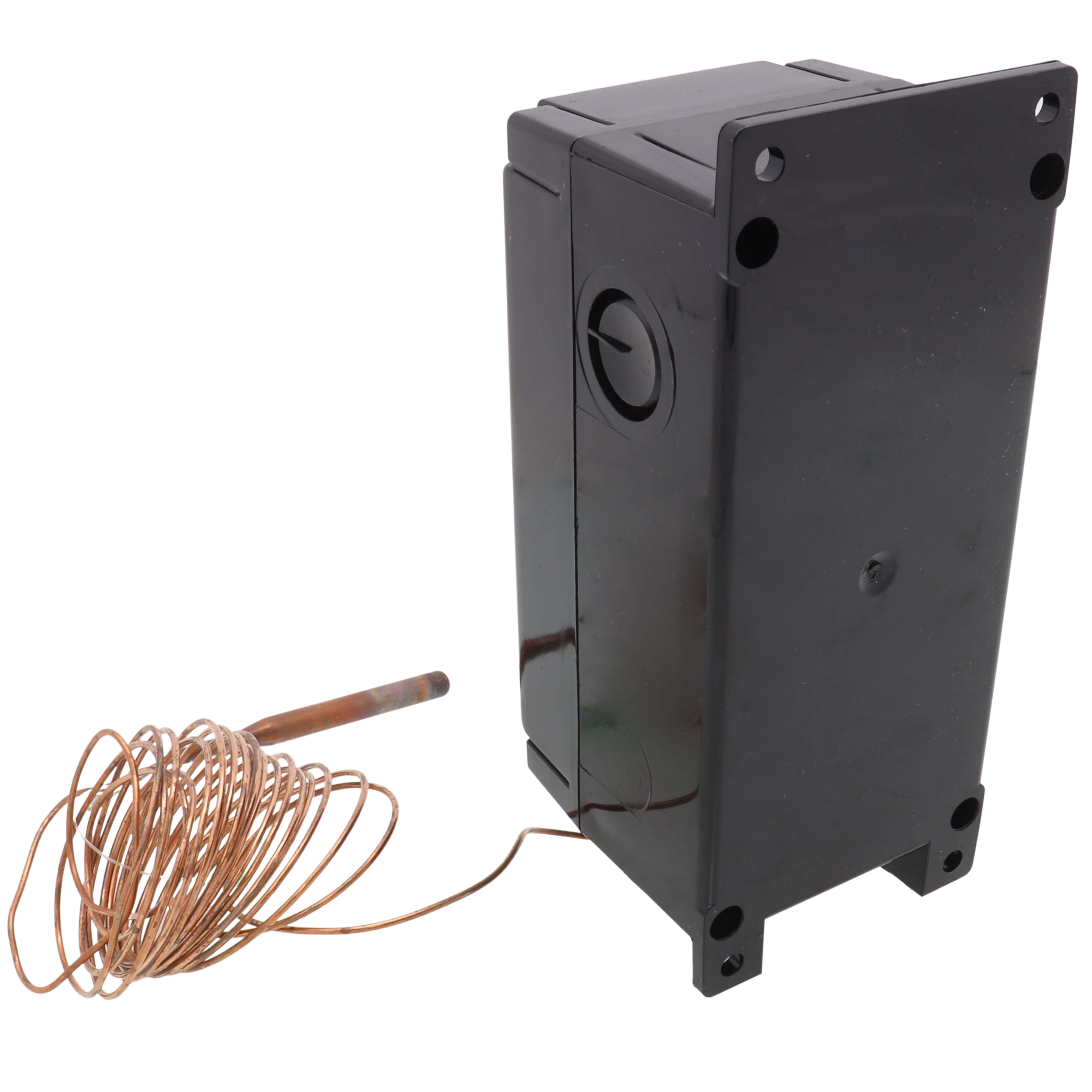

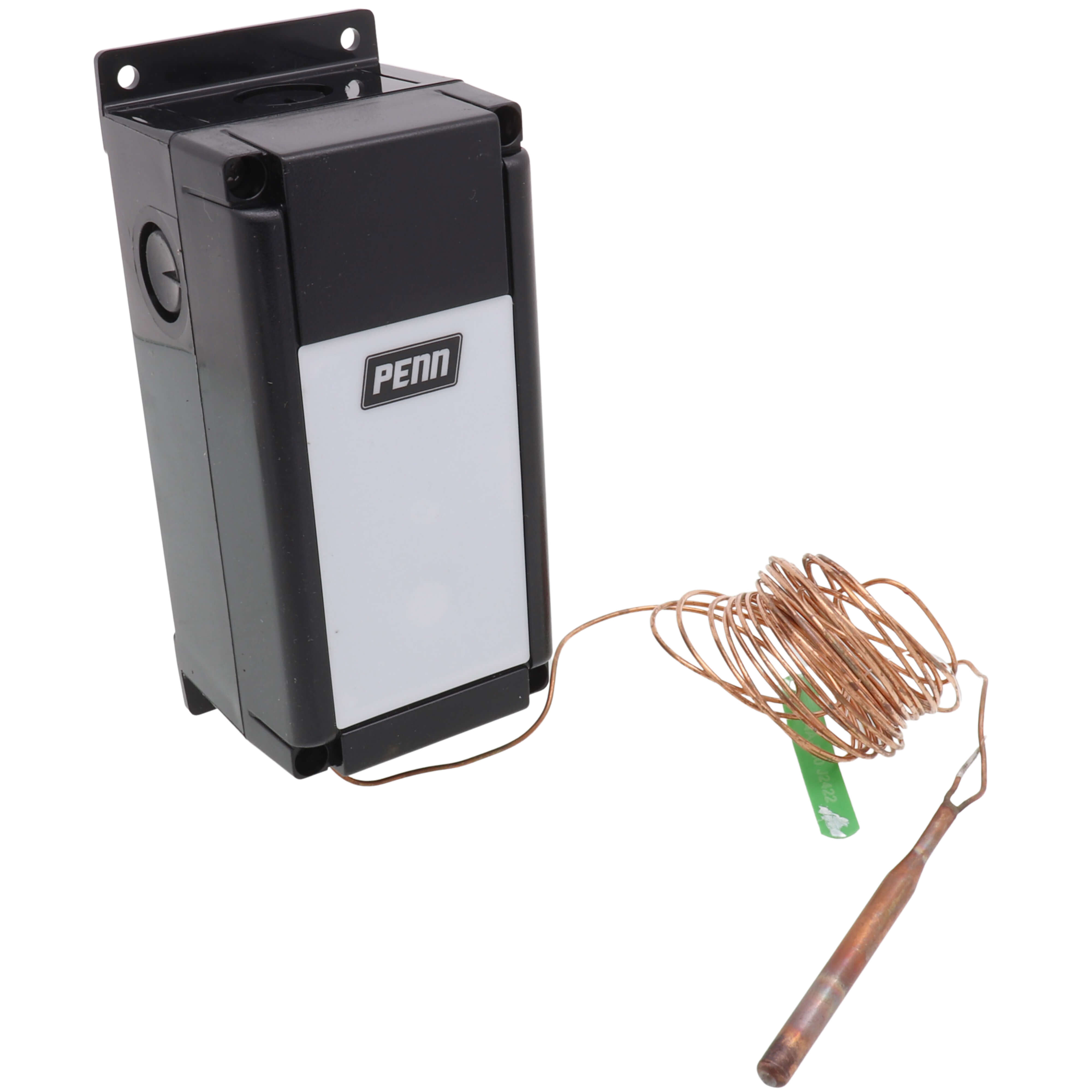

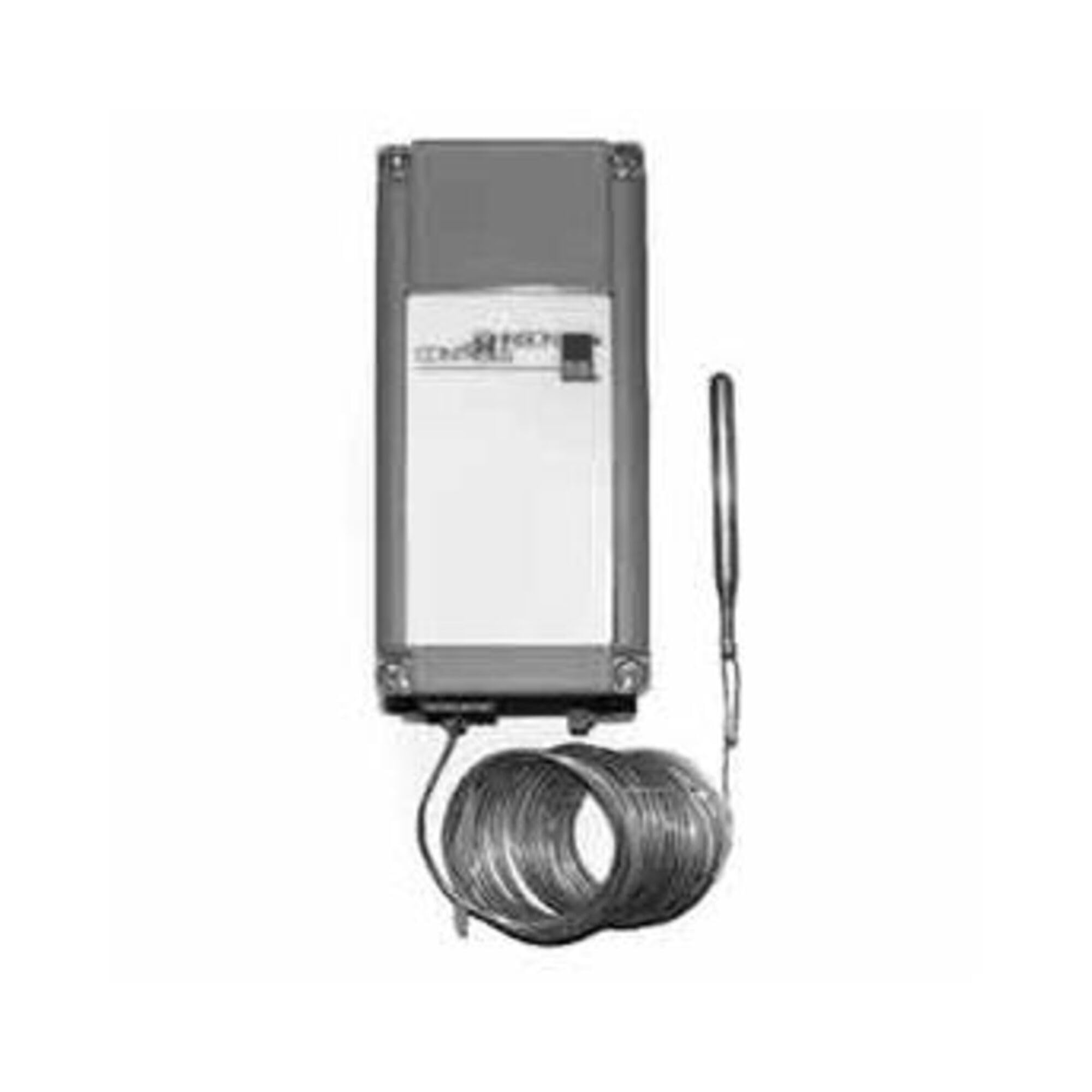

Johnson Controls A19QSC-1C Temperature Controller Remote Bulb with Nema 4X Enclosure

Product Description

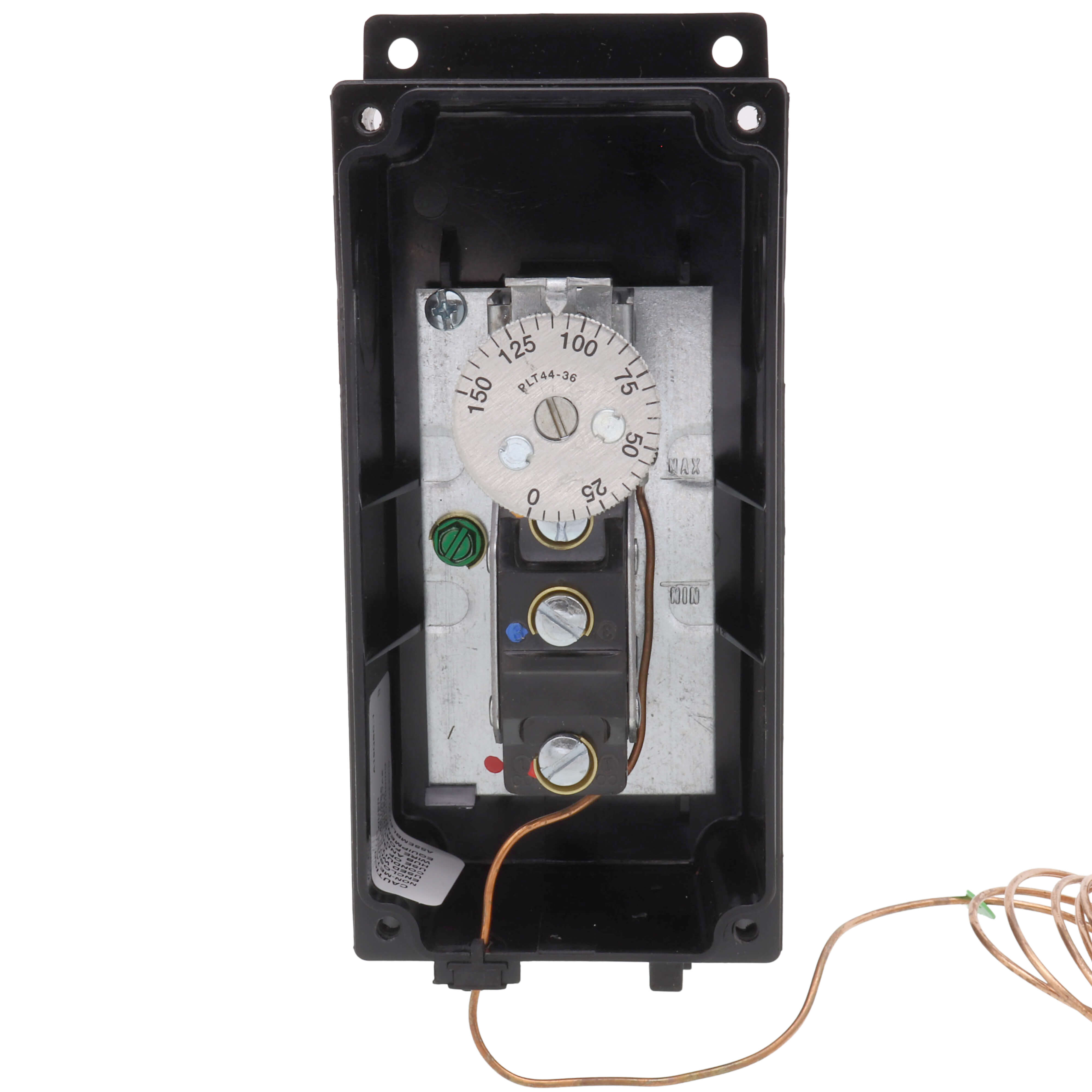

The Johnson Controls A19QSC-1C is a remote bulb temperature controller with a watertight NEMA 4X enclosure. It features SPDT switching and a concealed setpoint adjustment. Suitable for cooling tower sump heaters and control of heating or ventilating equipment.

• Remote bulb temperature control
• Watertight NEMA 4X enclosure
• SPDT switching

Product Highlights

The A19QSC-1C temperature controller offers reliable temperature control in demanding environments.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: A19QSC-1C
• Country of Origin: United States

Technical Specifications

• Type: Mechanical
• Brand: Johnson Controls
• Stages: Single
• Voltage: 240 / 120 V
• For Use With: Heat & Cool
• Switch Action: SPDT
• Bulb Size: 0.290 x 2-1/2 in
• Max Bulb Temperature: 190 (88)
• Capillary Length: 10 ft
• NEMA Rating: 4x
• Differential Temperature: 5 2 (2.82 1.11) Fixed F
• Manufacturers Part Number: A19QSC-1C
• Temperature Control Range: 0 to 150 F
• Certifications: UL Listed
• Product Type: Electronic Component
• Action [Features]: Opens on rise
• Voltage [Features]: 120v
• Application [Features]: Portable Heater
• Max Temp (F) [Features]: 150 F
• Min Temp (F) [Features]: 0 F
• Capillary Length [Features]: None
• Temperature Range (F) [Features]: 0 F to 150 F
• Shipping Depth [Dimensions]: 6.5
• Shipping Width [Dimensions]: 5.0
• Shipping Height [Dimensions]: 3.0
• System Switching: No
• Fan Switching: No
• Operating Temperature: 190 °F
• AC Voltage: 120 V, 240 V
• Output: 1 SPDT
• Setpoint Temp Range: 0-150 °F
• Length: 10 '
• Net Weight: 1.05 lbs
• Gross Weight: 1.33 lbs
• MPN: A19QSC-1C
• Manufacturer: Johnson Controls
• Product Series: A19 Control with 4X Enclosure
• Family Series: Johnson Controls Controllers, A19 Control with 4X Enclosure Series
• Description: Temperature Control; Temperature Control
