John Guest PI301612S-US Reducing Tee 1/2 in x 3/8 in x 1/2 in

Brand: JOHN GUEST
SKU: PI301612S-US
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

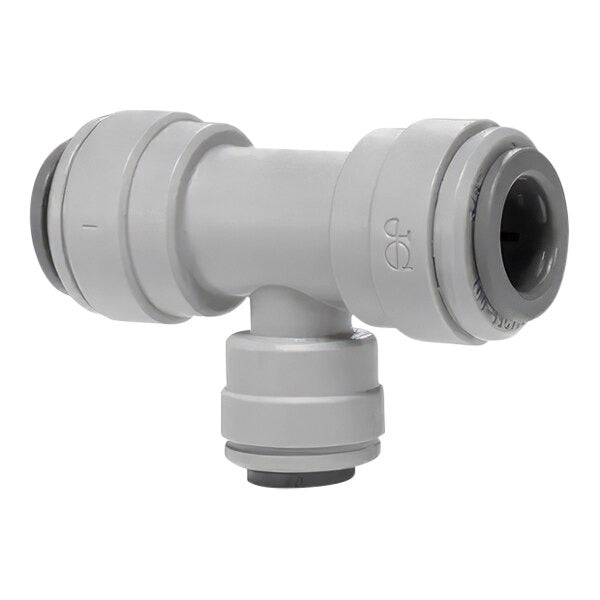

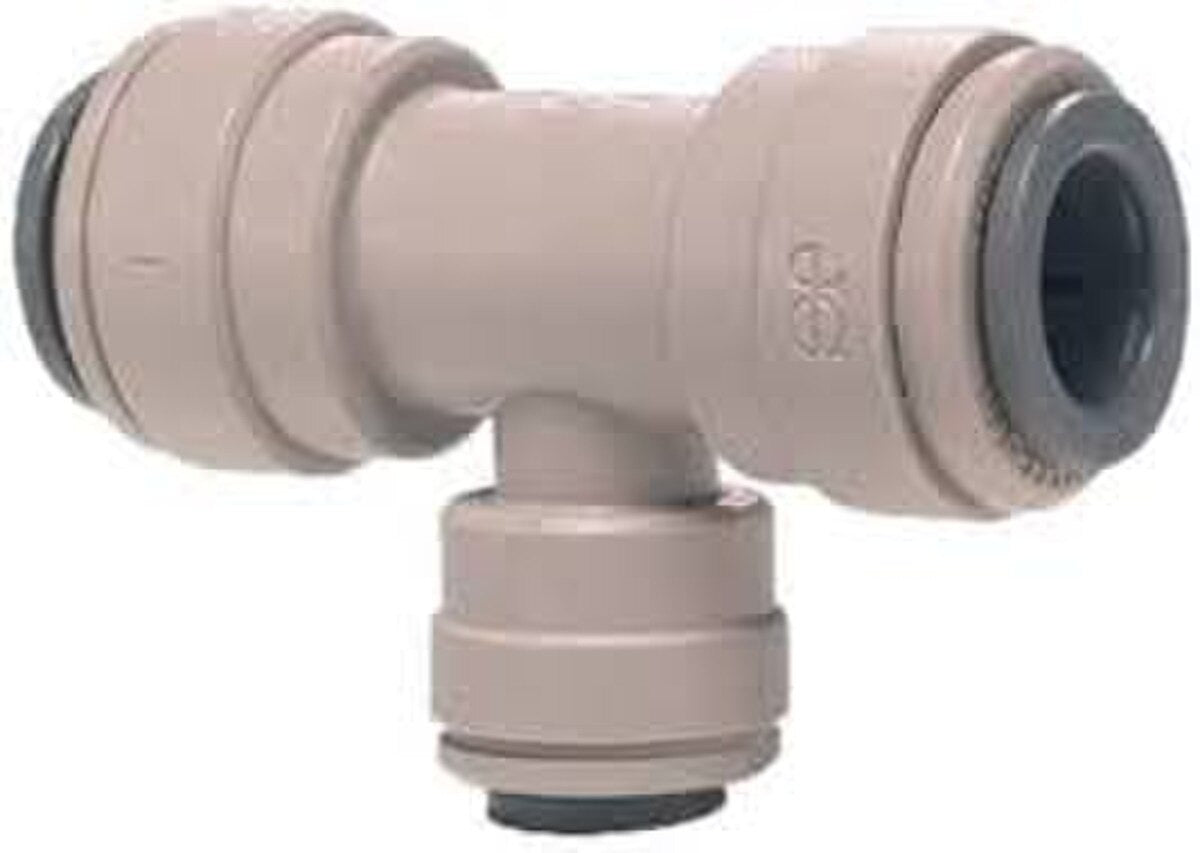

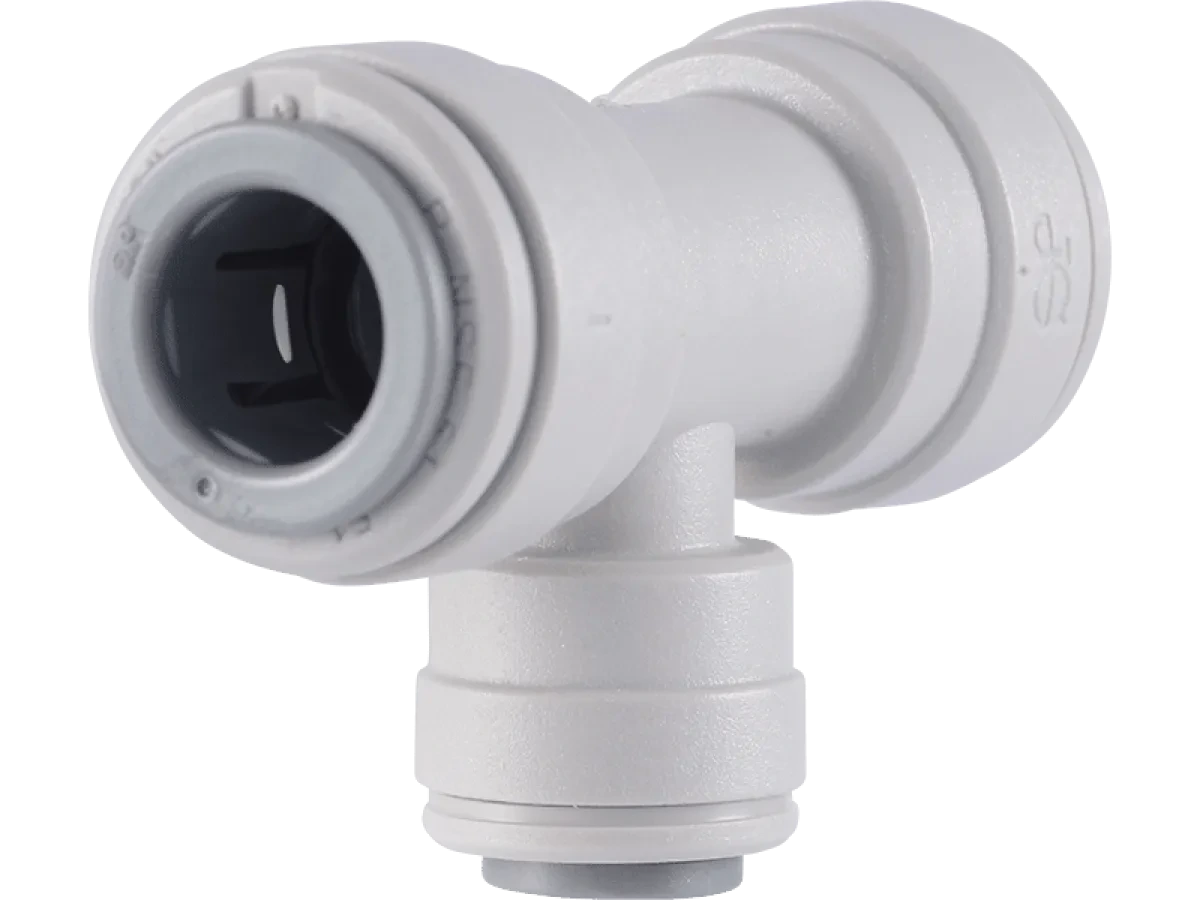

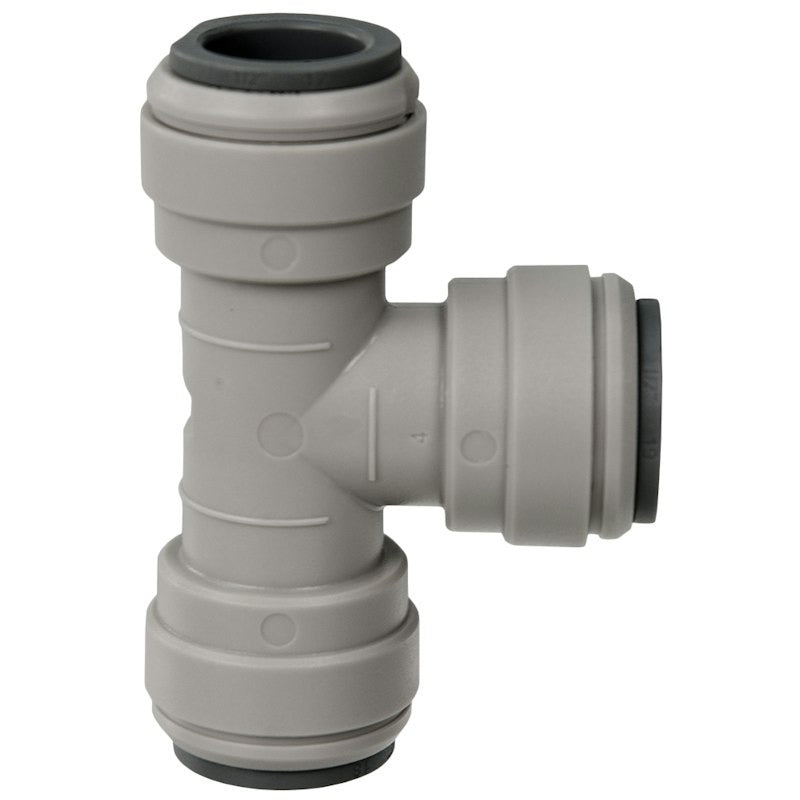

John Guest PI301612S-US is a gray acetal reducing tee that provides a push-fit connection between 1/2 in. and 3/8 in. OD tubing. The fitting uses a food-grade nitrile O-ring and stainless steel teeth with an acetal/SS collet to secure tubing and form a leak-resistant seal. It is suitable for potable liquids, foodstuffs, air, inert gases and vacuum service with a working pressure up to 150 psi at 68 F.

  • Push-fit (Speedfit) connection for tool-free installation and quick disconnection
  • Gray acetal copolymer body with food-grade nitrile O-ring and 301 stainless steel teeth
  • Suitable for potable water, food applications, air, inert gases, vacuum; max working pressure 150 psi at 68 F

Product Highlights

Push-fit reducing tee for 1/2 in. and 3/8 in. OD tubing; acetal body; food-grade nitrile O-ring; NSF/FDA compliant; vacuum capable.

Product Information

Standard Information

  • Brand: JOHN GUEST
  • Manufacturer Part Number: PI301612S-US
  • Country of Origin: England
Technical Specifications
Manufacturer Part Number
PI301612S-US
Brand
John Guest
Product Type
Reducing tee (OD tube fitting)
Size
1/2 in. x 3/8 in. x 1/2 in.
Tube OD (run)
1/2 in.
Tube OD (branch)
3/8 in.
Material
Gray acetal copolymer (acetal)
O-ring
Nitrile (food grade / Buna-N)
Collet
Acetal/SS collet with 301 stainless steel teeth
Connection Type
Push-fit (Speedfit)
Compatible tubing
Plastic or soft metal (copper) OD tubing
Applications
Foodstuffs, potable liquids, pure water, air/pneumatics, inert gases (CO2, nitrogen), vacuum, beverage gas lines
Max Working Pressure (sizes 3/8 - 1/2 in.)
150 psi at 68 F; 100 psi at 150 F
Temperature Range
33 F to 158 F
Vacuum Rating
Will withstand a full vacuum
Certifications / Approvals
FDA approved materials; NSF51; NSF61; NSF/ANSI/CAN listed
Lead Content
Lead free materials
Flow Characteristics
Superior flow characteristics
Connection Configuration
Push-Connect x Push-Connect x Push-Connect
Country of Origin
England
UPC
400016990843
