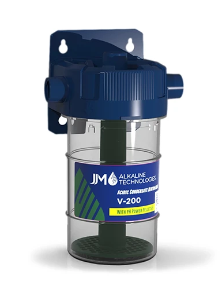

Jjm Alkaline v-200 Condensate Neutralizer 200 Mbh

Product Description

The JJM ALKALINE v-200 is a condensate neutralizer rated for heating appliances up to 200 MBH, designed for residential wall-hung installations including tankless water heaters and high-efficiency condensing boilers. Acidic condensate from condensing appliances must be neutralized before drain discharge to meet local plumbing codes, and the v-200 handles that function at a flow rate of 1.6 gallons per hour. The unit ships with two outlet ports, allowing flexible drain piping configurations to suit different installation layouts. pH Power Pellets inside the neutralizer vessel treat the condensate as it passes through, raising pH to an acceptable discharge level.

The v-200 is intended for residential condensing gas appliances, primarily tankless water heaters and wall-hung condensing boilers rated up to 200 MBH. It mounts directly to the wall near the appliance, keeping the condensate drain line short and accessible. The dual-outlet design gives the installer options when routing drain piping in tight mechanical spaces or when tying into an existing drain line. Plumbers and HVAC technicians installing high-efficiency condensing equipment will find this unit appropriate for new construction and retrofit applications where a neutralizer is required by local code.

Key Features

• Rated for condensing appliances up to 200 MBH
• 1.6 GPH flow rate handles typical residential condensate output
• Dual 3/4-inch outlet ports allow versatile drain piping configurations
• Wall-mount design keeps unit close to the appliance and off the floor
• pH Power Pellets replaceable with one hand, no fittings or connections to disconnect during service

Compatibility

Designed as an OEM-style condensate neutralizer for residential wall-hung condensing gas appliances, including tankless water heaters, rated up to 200 MBH.

Installation Notes

Installation is typically performed by a licensed plumber or HVAC technician. Shut off the appliance and isolate the condensate drain line before connecting or servicing the neutralizer. Local plumbing codes, including the IPC, may require condensate neutralization for condensing appliances draining to a sanitary sewer — verify requirements with the authority having jurisdiction before roughing in the drain line. Replace the pH Power Pellets at intervals recommended by the manufacturer to maintain effective neutralization.

Technical Specifications

• Maximum Capacity: 200 MBH
• Flow Rate: 1.6 GPH
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches
• Number of Outlet Ports: 2
• Mounting Type: Wall

Standard Information

• Brand: JJM ALKALINE
• Manufacturer Part Number: v-200
