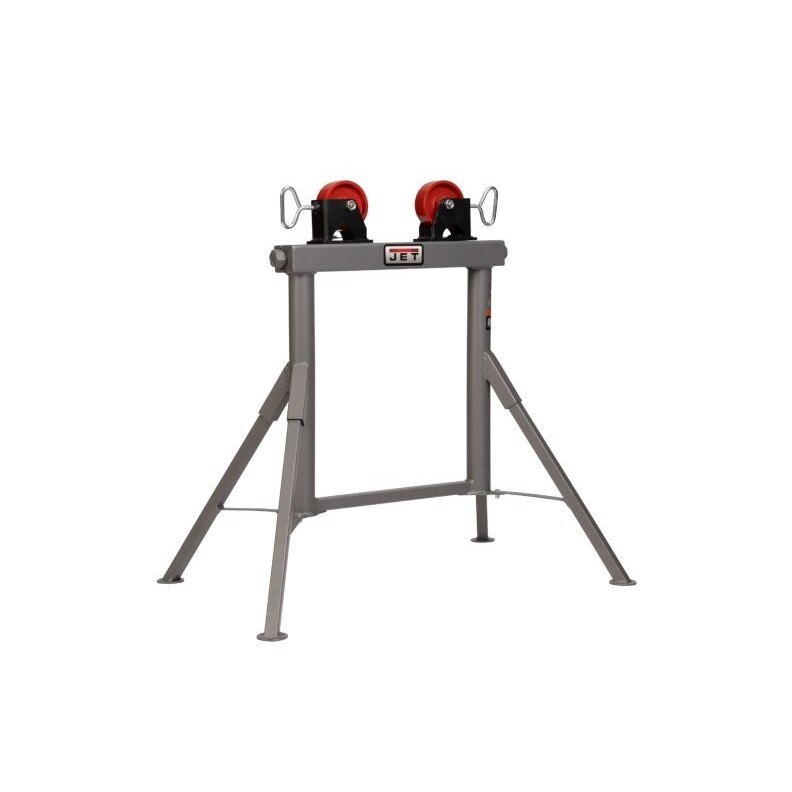

Jet JT1-2403 Adjustable Roller Stand 2500 Lbs

Product Description

The JET JT1-2403 is a fixed-height adjustable roller stand designed to support pipe and workpieces during layout, fit-up, cutting, alignment, and welding operations. The stand handles a maximum load of 2,500 lbs and accepts pipe up to 36 inches in diameter, making it a practical choice for heavy fabrication work. The frame is built from 1-inch square tube steel and sits on a wide 33-inch by 23-inch base for stability under load. An integrated brake system locks pipe rotation when precise positioning is required. Oversized steel rollers ride on grease zerk axles, and the roller wheels are replaceable, reducing long-term maintenance cost.

This roller stand is suited for industrial and commercial fabrication shops, pipe fitting operations, and welding stations where heavy cylindrical workpieces need controlled support. The adjustable roller spacing accommodates a broad range of pipe diameters, allowing a single stand to serve multiple job configurations. A working height of 33 inches positions pipe at a comfortable level for extended tasks, reducing operator fatigue during long fit-up or welding runs. Licensed pipefitters, welders, and fabricators typically deploy this stand as part of a multi-stand support system for long pipe runs or structural members.

Key Features

• 2,500 lb maximum load capacity for heavy-duty fabrication applications
• Accepts pipe up to 36 inches in diameter with adjustable roller spacing
• Integrated brake system locks pipe rotation for precise cutting, alignment, or welding
• 1-inch square tube steel frame with 33-inch by 23-inch base for maximum stability
• Oversized steel rollers with grease zerk axles for consistent, smooth pipe movement
• Replaceable roller wheels for cost-effective field maintenance
• 33-inch working height reduces operator strain during extended use

Compatibility

Designed as an OEM-style roller support stand for use with pipe, tube, and cylindrical stock in industrial fabrication and welding environments.

Installation Notes

Positioning and setup is performed by welders, pipefitters, or fabricators. Place the stand on a firm, level surface before loading any workpiece. Engage the integrated brake before cutting or welding to prevent unintended pipe movement. Inspect roller wheels and grease axles periodically and relubricate through the grease zerk fittings according to the manufacturer service schedule.

Technical Specifications

• Maximum Load Capacity: 2,500 lbs
• Maximum Pipe Diameter: 36 inches
• Working Height: 33 inches
• Base Dimensions: 33 inches x 23 inches
• Frame Material: 1-inch square tube steel
• Roller Axle Type: Grease zerk
• Brake System: Integrated pipe rotation lock
• Warranty: 2 years
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: JT1-2403
