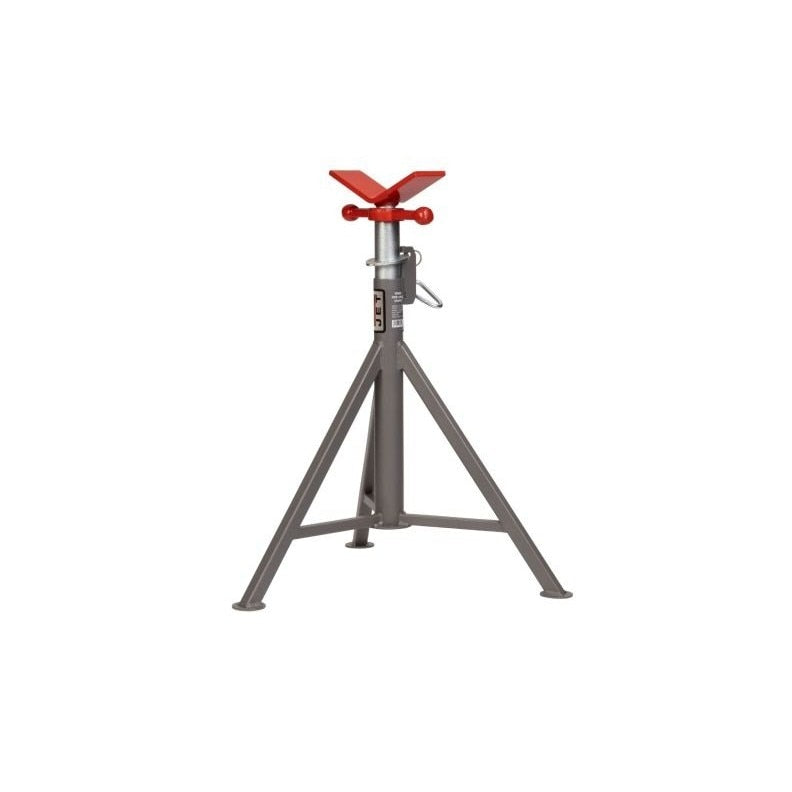

Jet JT1-2402 Fixed Height Pipe Jack Stand 2500 Lb

Product Description

The JET JT1-2402 is a fixed-height pipe jack stand designed for heavy-duty pipe support in shop and field environments. It handles a 2,500 lb load capacity and accepts pipe up to 18 inches in diameter, making it suited for industrial welding, pipe alignment, and fabrication work. The stand adjusts from 27 inches to 46 inches in height via a captive lock ring mechanism. Fully welded leg sockets and base eliminate assembly and contribute to long-term structural integrity. A large 10-inch V-head with high-visibility markings positions pipe securely and improves operator accuracy during layout and fit-up.

This pipe jack stand is built for use by pipefitters, welders, and fabricators working on heavy pipe runs in both shop and field settings. The rigid fixed-leg base and broad stance make it appropriate for use on level shop floors and stabilized field surfaces. It is well suited for tasks requiring consistent pipe elevation over extended work periods, including pipe spool assembly, circumferential welding, and horizontal alignment work. The over-extension protection feature with a max-height sight hole supports safe operation during repeated height adjustments.

Key Features

• 2,500 lb load capacity supports demanding industrial pipe work
• Accepts pipe up to 18 inches in diameter across a wide range of applications
• Height adjusts from 27 inches to 46 inches with captive lock ring and over-extension protection
• Fully welded construction requires no assembly and maximizes durability
• Large 10-inch V-head with high-visibility head and spanner improves positioning accuracy
• Rigid fixed-leg base delivers stable footing during heavy-load use
• Backed by a 2-year JET warranty

Compatibility

Designed as an OEM-style fixed-height pipe jack stand suitable for general pipefitting, welding, and fabrication applications requiring adjustable pipe support between 27 and 46 inches in height.

Installation Notes

Place the stand on a firm, level surface before loading. Confirm the lock ring is fully engaged at the desired height before applying load. Do not exceed the rated 2,500 lb capacity. Inspect welds and the lock ring mechanism for wear or damage before each use session.

Technical Specifications

• Load Capacity: 2,500 lb
• Maximum Pipe Diameter: 18 inches
• Height Range: 27 inches to 46 inches
• V-Head Size: 10 inches
• Construction: Fully welded steel
• Warranty: 2 years
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: JT1-2402
