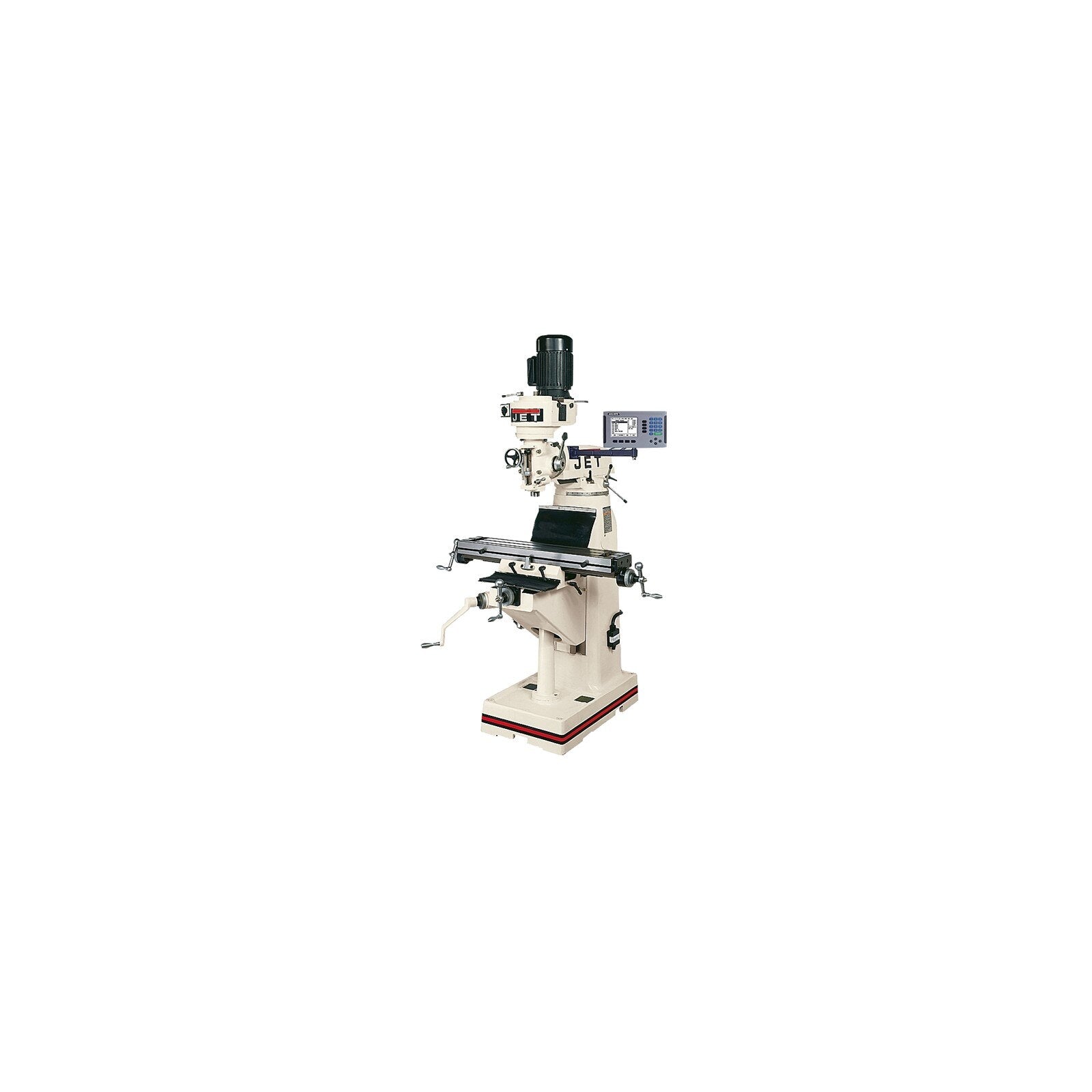

Jet 691175 Vertical Mill Newall C80 Dro Xy Powerfeed

Product Description

The JET 691175 is a vertical milling machine configured with a Newall C80 digital readout (DRO) and X/Y-axis powerfeed, designed for precision metalworking operations in machine shops and tool rooms. The Newall C80 DRO provides real-time axis position feedback, reducing setup time and improving repeatability on milling, drilling, and boring operations. The integrated X/Y powerfeed drives the table automatically along two axes, reducing operator fatigue during extended cuts. This unit is installed and serviced by machinist trades and industrial maintenance professionals.

The JET 691175 is suited for job shop, production, and vocational training environments where a full-featured knee mill is required. The factory-installed DRO and powerfeed combination means the machine arrives ready for production use without additional retrofit work. Typical applications include face milling, end milling, slotting, and drilling on ferrous and non-ferrous workpiece materials.

Key Features

• Newall C80 digital readout provides real-time X and Y axis position display for repeatable setups
• Factory-installed X/Y powerfeed drives the milling table automatically along two axes
• Vertical knee mill configuration supports a wide range of milling, drilling, and boring operations
• Ships as a complete, production-ready unit with DRO and powerfeed pre-installed
• Machine weight of 1630 pounds indicates a heavy-duty cast iron construction typical of full-size knee mills

Compatibility

Designed as a complete OEM-configured vertical knee milling machine. Consult JET documentation for compatible tooling, collets, and accessory specifications appropriate to the JVM-836-1 spindle and table configuration.

Installation Notes

At 1630 pounds, this machine requires a forklift or overhead crane for positioning and must be anchored to a concrete floor rated for the load per local building and machinery installation codes. Electrical connection should be performed by a licensed electrician in accordance with NEC requirements for the specified voltage and phase. Power down and lock out the main disconnect before performing any service on the DRO wiring, powerfeed components, or spindle drive. Level the machine carefully using a precision machinist level before initial operation.

Technical Specifications

• Machine Weight: 1630 pounds
• DRO: Newall C80
• Powerfeed Axes: X and Y
• Unit of Measure: Each
• Minimum Order Quantity: 1
• UPC: 662755530739

Standard Information

• Brand: JET
• Manufacturer Part Number: 691175
