Jet 691173 Vertical Milling Machine Newall C80 Dro

Product Description

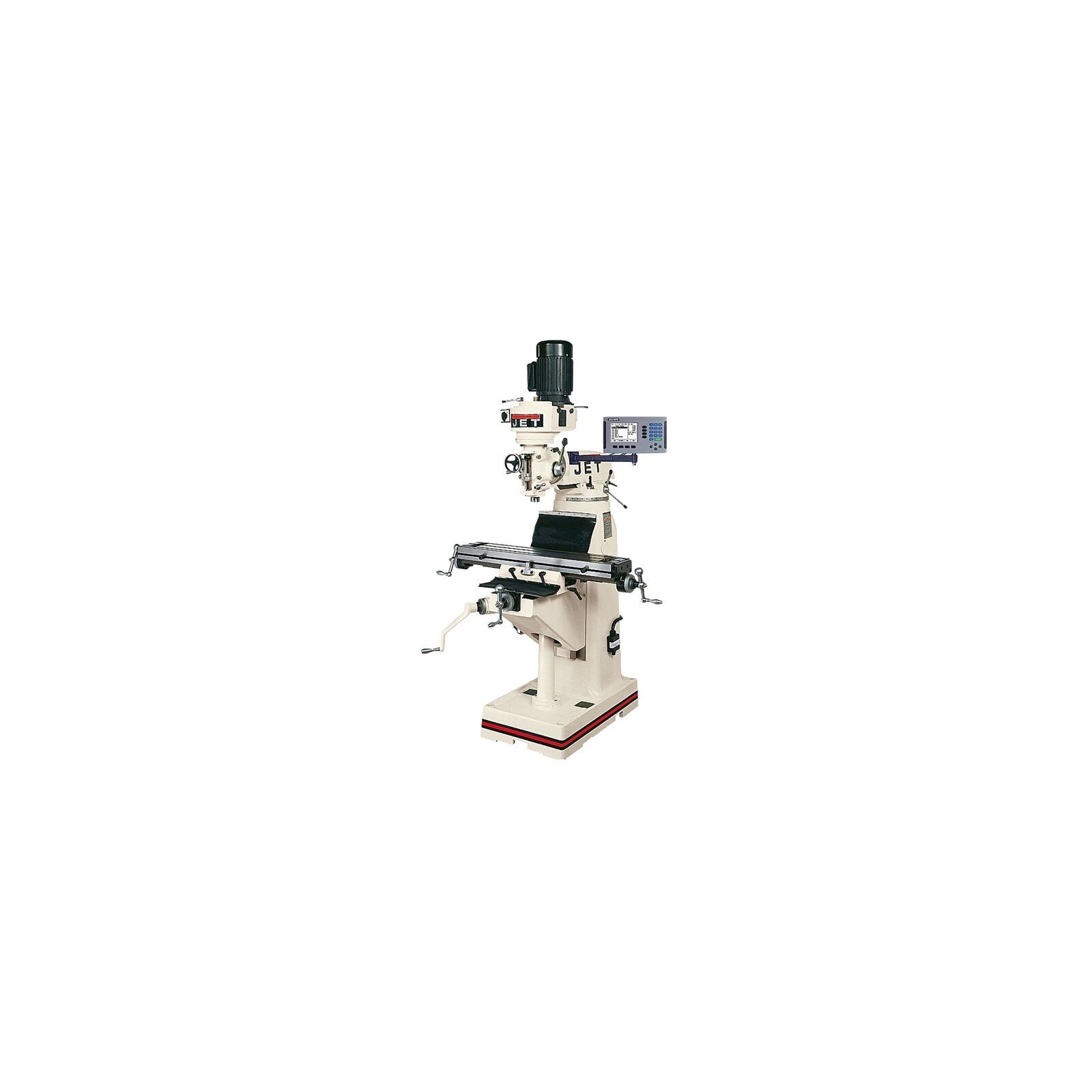

The JET 691173 is a vertical milling machine configured with a Newall C80 digital readout (DRO) system. The C80 DRO provides real-time axis position feedback, reducing manual calculation and improving repeatability on milling operations. This machine is designed for precision metal removal work in job shops, tool rooms, and production environments. It is typically installed and operated by machinists, tool-and-die makers, and skilled trades professionals who require accurate, repeatable results on ferrous and non-ferrous materials. At 1,630 pounds, this is a floor-standing unit that requires proper rigging and a level, reinforced floor surface before commissioning.

The JET 691173 suits job shop and tool room applications where a vertical knee mill with integrated DRO is preferred over manual hand-wheel operation alone. The Newall C80 DRO adds axis position display capability to standard milling operations including face milling, end milling, drilling, and boring. This configuration is common in maintenance shops, vocational training facilities, and small-batch production environments where setup time and dimensional accuracy are both priorities.

Key Features

• Integrated Newall C80 DRO system for real-time axis position readout
• Vertical knee mill configuration suitable for a wide range of milling and drilling operations
• Heavy-duty construction at 1,630 pounds for rigidity and vibration damping during cutting
• Designed for job shop, tool room, and production floor use

Compatibility

Designed as an OEM-configured vertical milling machine unit sold complete with the Newall C80 DRO; consult JET documentation for compatible accessories, tooling arbors, and collet systems appropriate to this mill model.

Installation Notes

At 1,630 pounds, this machine must be rigged and positioned using appropriate lifting equipment by qualified personnel before any electrical connection is made. The installation site should have a level, reinforced concrete floor capable of supporting the full machine weight plus workpiece and operator loads. All electrical connections must comply with applicable NEC requirements and should be performed by a licensed electrician. Power must be fully de-energized and locked out before any service, tooling changes, or DRO wiring work is performed.

Technical Specifications

• Weight: 1630 pounds
• DRO System: Newall C80
• UOM: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JET
• Manufacturer Part Number: 691173
