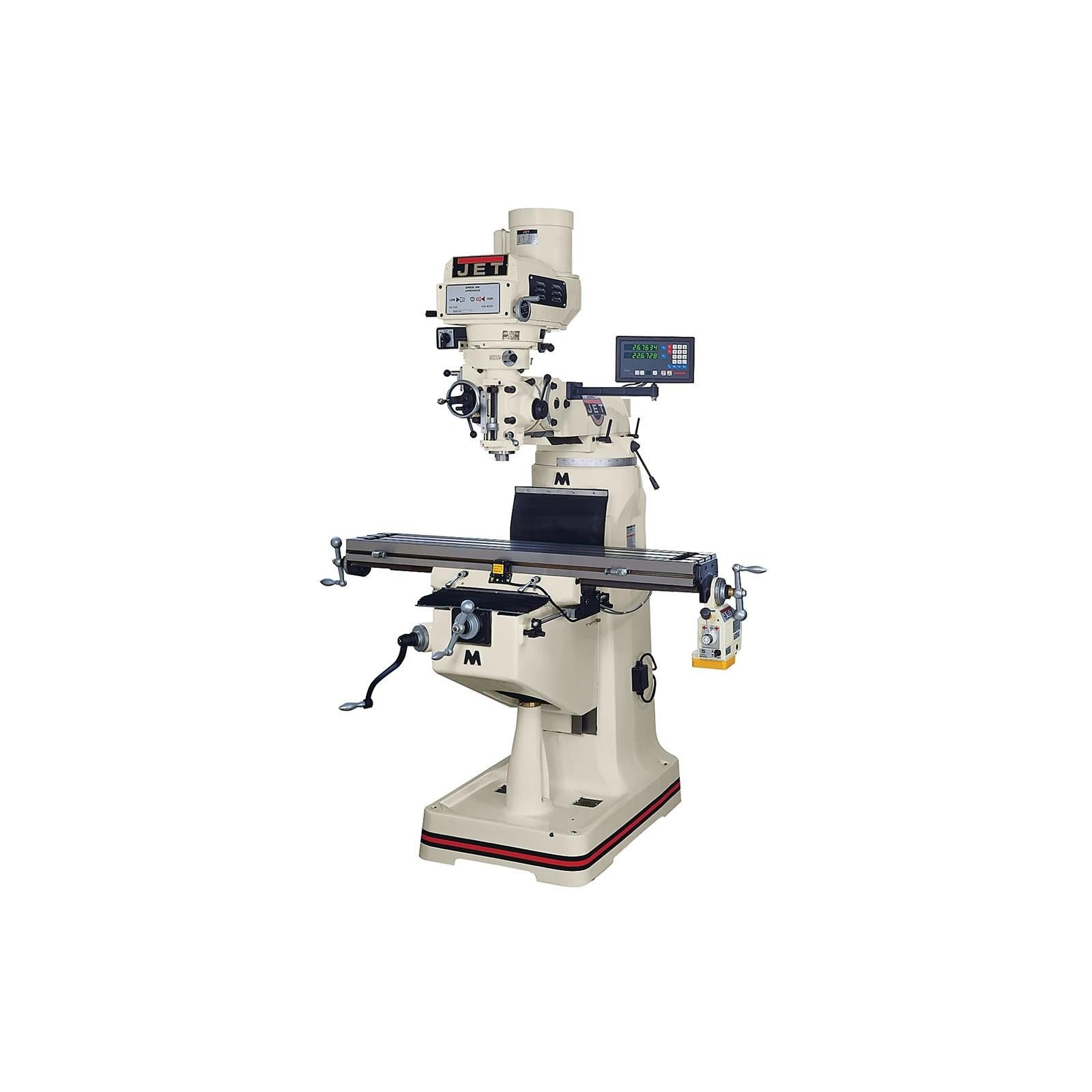

Jet 690097 Milling Machine X Powerfeed Y Powerfeed

Product Description

The JET 690097 is a knee-style vertical milling machine configured with both X-axis and Y-axis powerfeed units installed. Powerfeeds automate table travel along the designated axes, allowing the operator to maintain consistent feed rates during milling operations without manual handwheel input. This reduces operator fatigue on long cuts and improves surface finish repeatability. The unit ships as a complete, ready-to-commission assembly. At 2,125 pounds, this is a full-size industrial machine requiring appropriate rigging and a prepared shop floor. Installation is typically performed by a millwright or experienced machinist with access to a forklift or overhead crane.

The JET 690097 is suited for job shop and production environments requiring general-purpose vertical milling. Typical applications include face milling, end milling, drilling, and boring on ferrous and non-ferrous materials. The factory-installed X and Y powerfeed configuration eliminates the field installation step, making commissioning more straightforward. This machine is appropriate for machine shops, tool-and-die operations, and vocational training facilities.

Key Features

• Factory-installed X-axis and Y-axis powerfeed units for automated table travel
• Full-size knee mill construction at 2,125 pounds shipping weight
• Sold as a complete, pre-configured assembly — no separate powerfeed installation required
• Supports general-purpose milling, drilling, and boring operations

Compatibility

Designed as an OEM-configured JET JTM-1 vertical knee milling machine with factory-installed powerfeed accessories. Powerfeeds are matched to the JTM-1 table dimensions at the factory.

Installation Notes

Rigging and placement of this machine requires a forklift or overhead crane rated for loads exceeding 2,125 pounds and should be performed by a qualified millwright. The machine must be leveled on a reinforced concrete floor before commissioning. Disconnect and lock out all electrical power before making any wiring connections to the powerfeed controls. Electrical hookup must comply with applicable local codes and the NEC.

Technical Specifications

• Weight: 2125 pounds
• UOM: Each
• Minimum Order Quantity: 1
• UPC: 662755515927

Standard Information

• Brand: JET
• Manufacturer Part Number: 690097
