Jet 690019 Vertical Milling Machine X-axis Powerfeed

Product Description

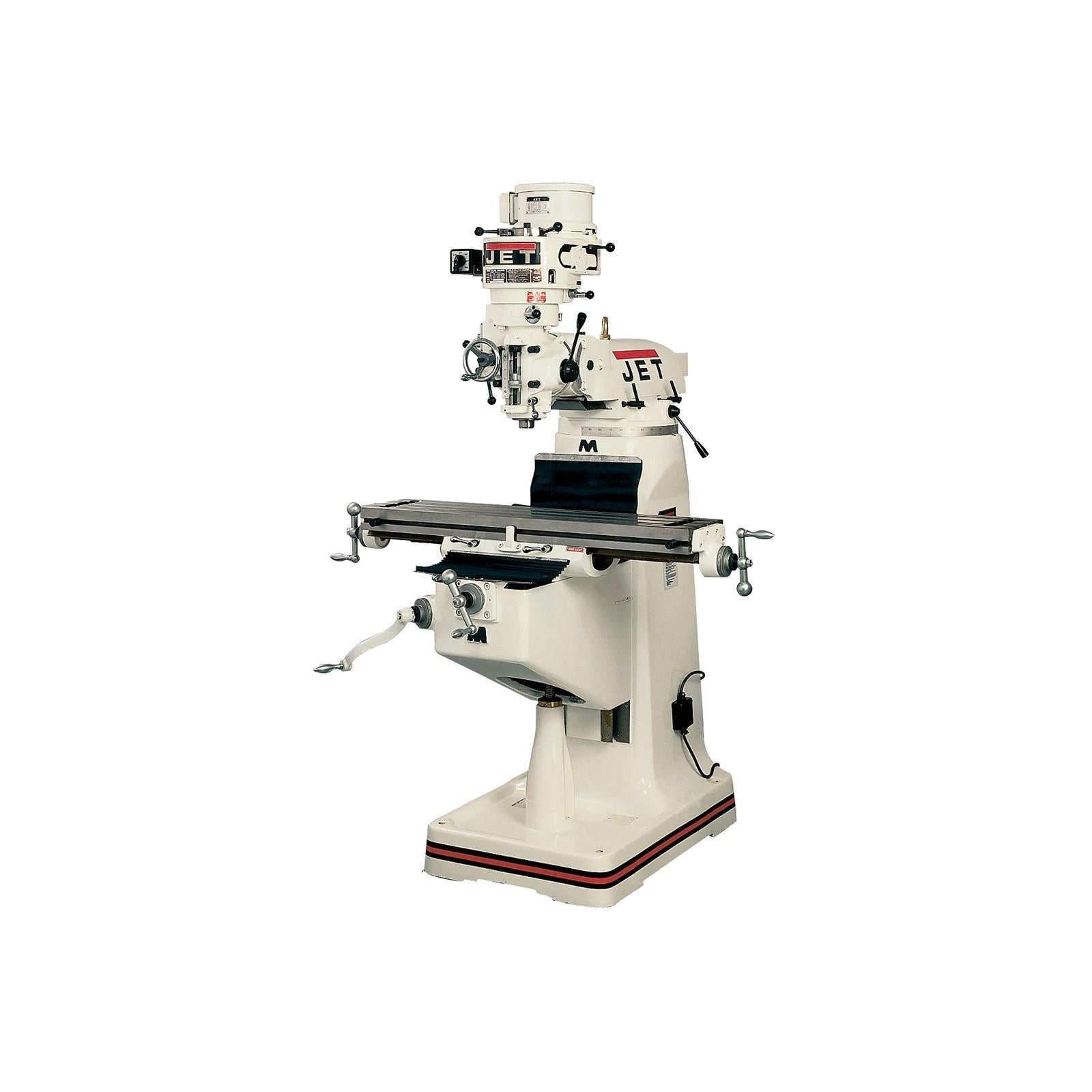

The JET 690019 is a vertical knee milling machine with an X-axis powerfeed unit pre-installed at the factory. The JTM-1 mill is a full-size manual knee mill designed for precision milling, drilling, and boring operations in machine shops, tool rooms, and industrial maintenance environments. At 2,100 pounds, this is a heavy-duty floor-standing machine intended for permanent installation. The integrated X-axis powerfeed automates table travel along the longitudinal axis, reducing operator fatigue during extended cutting operations and improving feed-rate consistency.

The JET JTM-1 is suited for job shops, vocational training facilities, and industrial maintenance departments that require a reliable general-purpose knee mill. The factory-installed X-axis powerfeed makes this configuration ready for production use without requiring a separate powerfeed retrofit. Typical applications include face milling, end milling, slotting, and drilling on ferrous and non-ferrous workpieces.

Key Features

• X-axis powerfeed installed at factory — no retrofit required
• Full-size vertical knee mill platform suitable for production and toolroom work
• Heavy cast iron construction at 2,100 pounds for rigidity and vibration damping
• Manual knee adjustment with powered longitudinal table feed
• Designed for precision milling, drilling, and boring operations

Compatibility

Designed as an OEM-configured vertical knee milling machine. Consult JET documentation for compatible tooling, collet systems, and accessory specifications appropriate to the JTM-1 spindle taper.

Installation Notes

Installation of a machine this size requires rigging equipment rated for a minimum of 2,100 pounds and should be performed by qualified millwrights or machinery movers. The machine must be leveled on a reinforced concrete floor using precision machinist levels and leveling mounts or grout pads before operation. Electrical connection should be performed by a licensed electrician in accordance with NEC requirements for the specified motor voltage and phase. Verify local electrical service capacity before installation.

Technical Specifications

• Weight: 2100 pounds
• Configuration: X-Axis Powerfeed Installed
• Unit of Measure: Each

Standard Information

• Brand: JET
• Manufacturer Part Number: 690019
