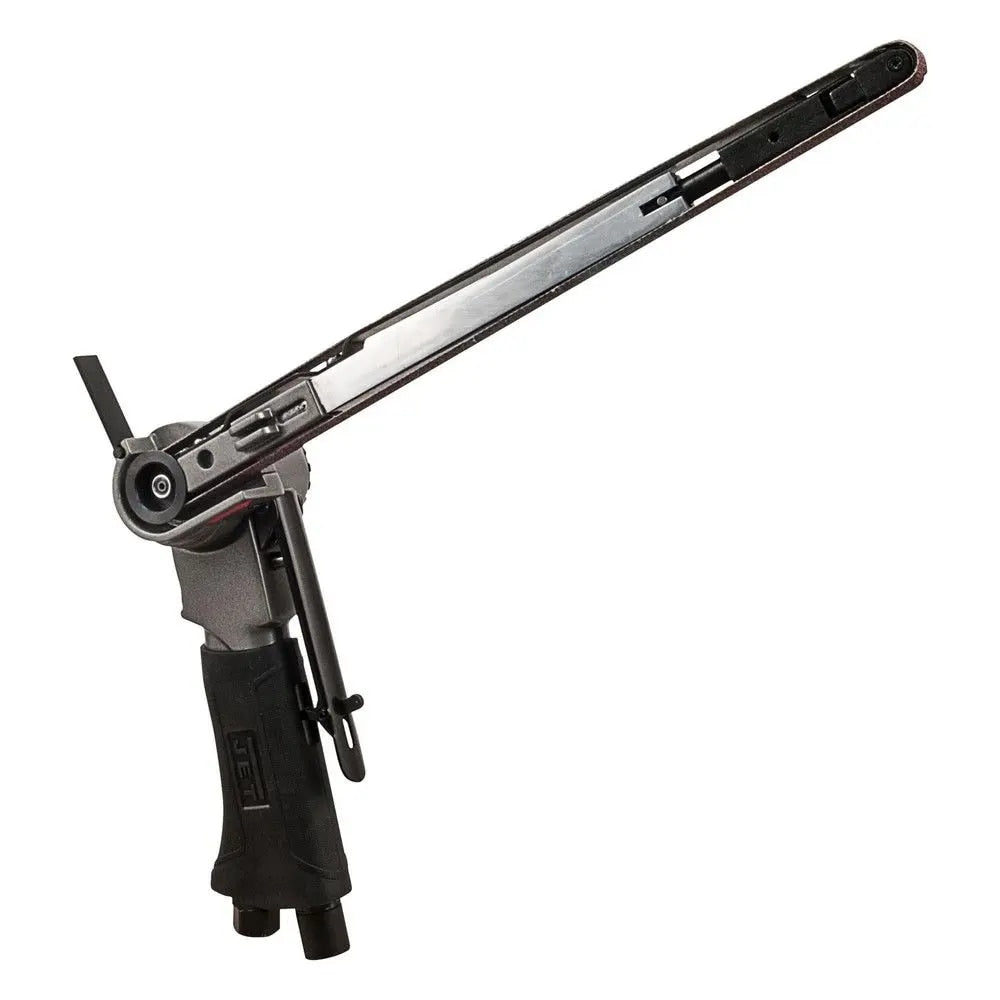

Jet 505752 Mini Pneumatic Belt Sander 0.5 Hp

Product Description

The JET 505752 is a compact pneumatic mini belt sander designed for precision material removal, deburring, and finishing in tight spaces. Powered by compressed air at 0.5 HP and running at 20,000 RPM, it delivers consistent sanding performance without the heat and fatigue associated with electric tools. The aluminum body keeps the tool lightweight for extended use. Accepting a 1/2 inch x 24 inch sanding belt, this tool is built for metalworkers, fabricators, maintenance technicians, and other trade professionals who need controlled, high-speed abrasive action in confined or contoured areas.

This mini belt sander is suited for use in fabrication shops, maintenance facilities, and production environments where pneumatic tools are the standard. Its 360-degree rotating head allows the operator to reach difficult angles on pipe, tubing, weldments, castings, and structural components. The 1/4 inch air inlet connects to standard shop air lines via a 3/8 inch air hose, making integration into an existing compressed air system straightforward.

Key Features

• Pneumatic drive at 0.5 HP with 20,000 RPM for fast, consistent material removal
• 1/2 inch x 24 inch belt size for compatibility with widely available abrasive belts
• 360-degree rotating head for access to contoured, angular, and tight work surfaces
• Aluminum construction reduces tool weight for extended-use comfort
• 1/4 inch air inlet with 3/8 inch hose connection fits standard shop air setups
• Weighs 2 pounds for easy one-handed maneuverability

Compatibility

Designed to accept standard 1/2 inch x 24 inch sanding belts. Compatible with compressed air systems using a 3/8 inch air hose and 1/4 inch inlet fittings. Referenced as model JAT-752 in JET tooling documentation.

Installation Notes

Pneumatic tool installation and operation should follow the air system manufacturer guidelines and applicable OSHA compressed air safety standards. Ensure the air supply is depressurized before connecting or disconnecting the tool, and verify that the air supply pressure matches the tool rating before use. Use appropriate personal protective equipment including eye protection and hearing protection when operating belt sanders. Abrasive belt changes should be performed with air supply disconnected.

Technical Specifications

• Drive Type: Pneumatic
• Power: 0.5 HP
• Speed: 20,000 RPM
• Belt Size: 1/2 inch x 24 inches
• Air Inlet: 1/4 inch
• Air Hose: 3/8 inches
• Head Rotation: 360 degrees
• Body Material: Aluminum
• Weight: 2 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 505752
