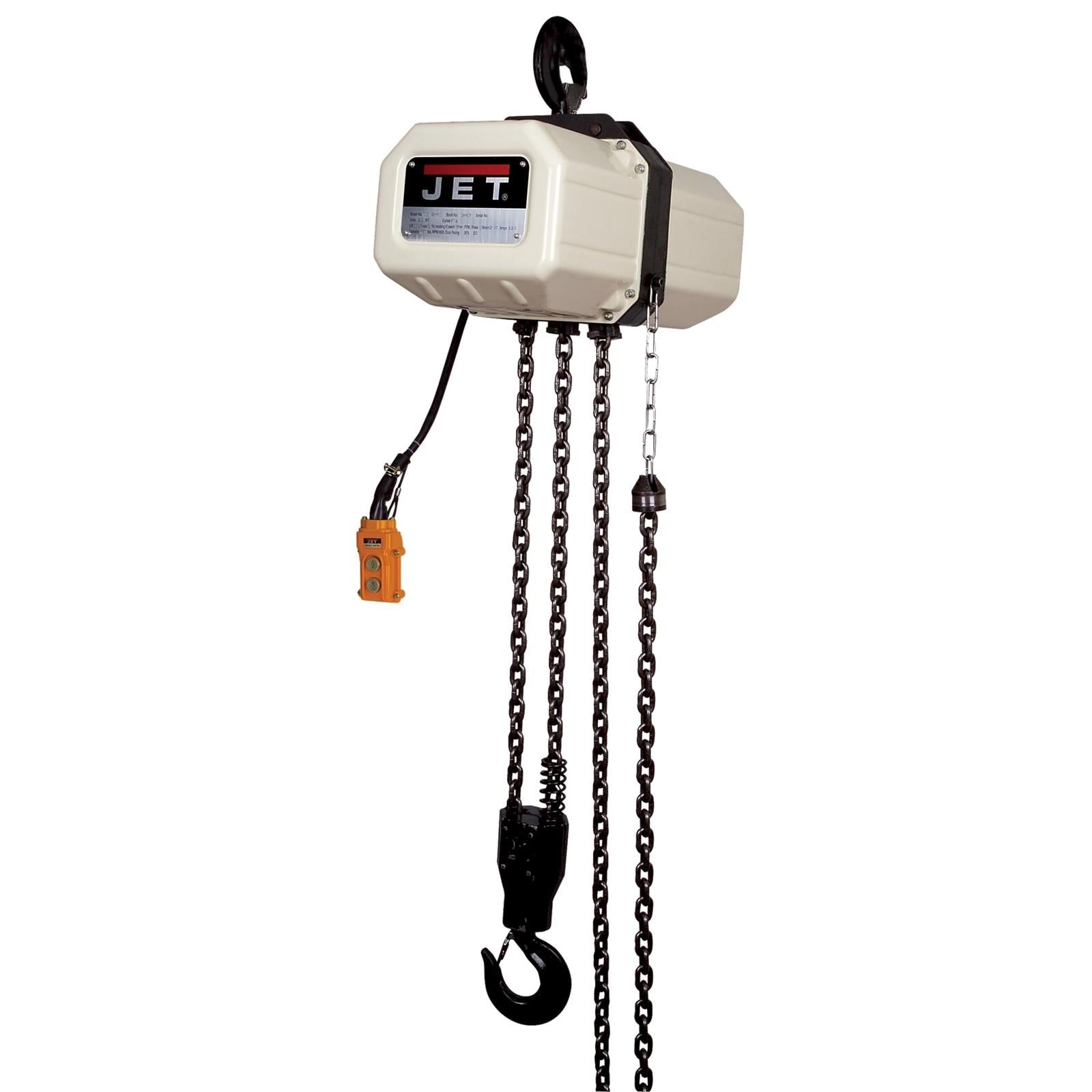

Jet 131000 Electric Chain Hoist 1 Ton 3-phase 10 Ft

Product Description

The JET 131000 is a single-speed electric chain hoist rated at 1 ton (2,000 pounds) capacity with a 10-foot lift range. Built for three-phase power, it ships prewired for 460 volts and is field-convertible to 230 volts, giving facilities flexibility when matching existing service. The unit weighs 159 pounds and is designed for overhead lifting in industrial and commercial environments. Licensed electricians and millwrights typically handle installation to ensure proper power connection and load rating compliance. This hoist is built for demanding lift cycles in manufacturing, warehousing, maintenance bays, and similar heavy-trade applications.

The JET 131000 suits commercial and industrial overhead lifting installations where reliable three-phase electric chain hoists are required. The 10-foot lift range covers standard ceiling heights in most shop and plant environments. With dual-voltage capability at 230 and 460 volts, it integrates into a wide range of existing three-phase electrical systems without requiring additional transformers in most cases. It is typically installed on a fixed trolley beam or freestanding gantry crane system.

Key Features

• 1 ton (2,000 pound) rated lifting capacity
• 10-foot lift range for standard industrial ceiling heights
• Three-phase motor compatible with 230 and 460 volt service
• Ships prewired for 460 volts, field-convertible to 230 volts
• Compact and robust construction at 159 pounds unit weight

Compatibility

Designed as an OEM-style overhead lifting unit for use with compatible three-phase beam trolley or gantry crane systems rated at 1 ton or greater capacity.

Installation Notes

Installation should be performed by a licensed electrician and qualified rigging or millwright professional in accordance with ASME B30.16 standards for overhead hoists and applicable NEC requirements for three-phase motor branch circuits. Disconnect and lock out all power before making any electrical connections or mounting the unit to the support structure. Confirm the supporting beam or trolley system is rated at or above the 1-ton hoist capacity before placing the unit into service. Do not operate the hoist outside its rated load capacity.

Technical Specifications

• Lifting Capacity: 1 ton (2,000 pounds)
• Lift: 10 feet
• Phase: 3-Phase
• Voltage: 230 volts / 460 volts
• Prewired Voltage: 460 volts
• Unit Weight: 159 pounds
• UPC: 662755906299

Standard Information

• Brand: JET
• Manufacturer Part Number: 131000
