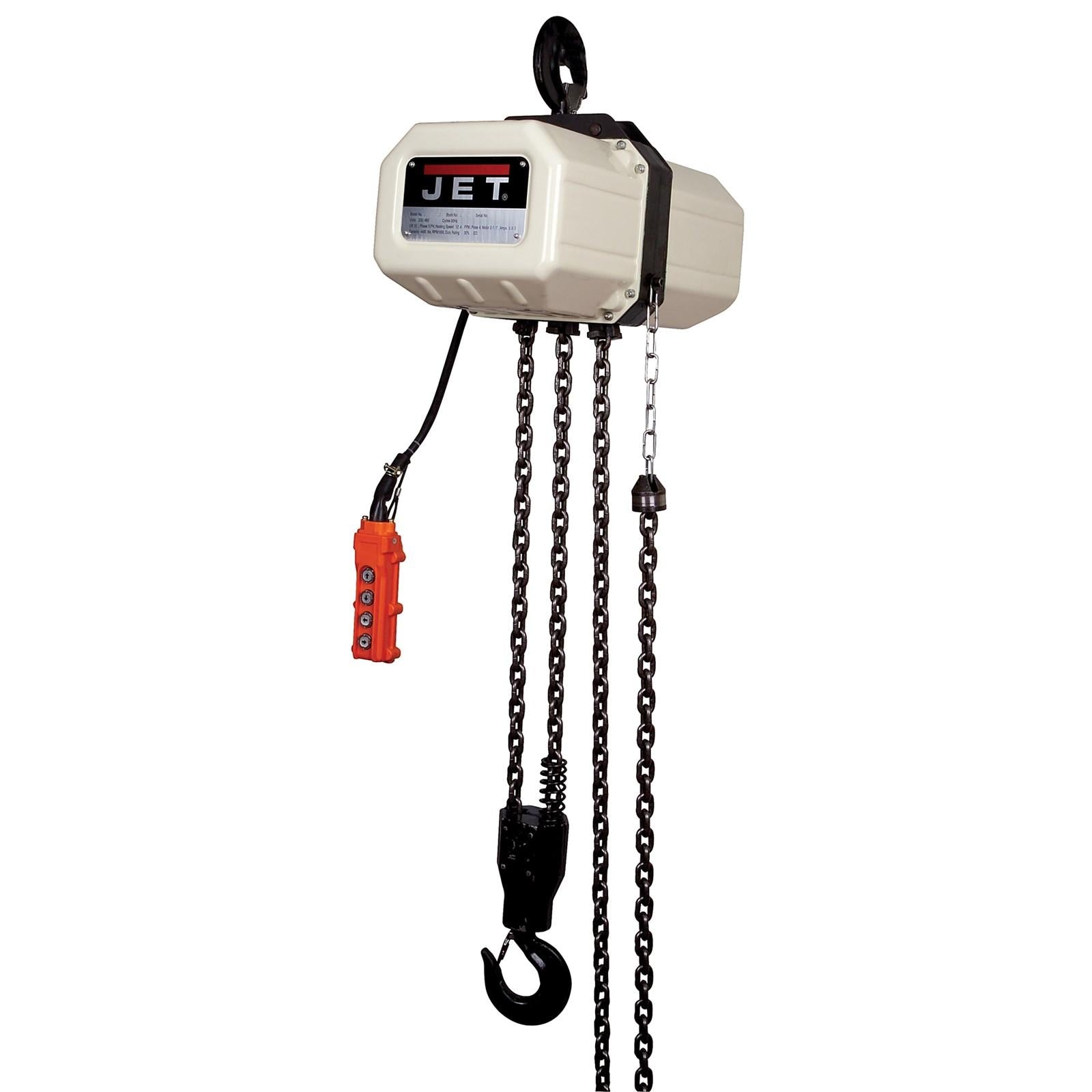

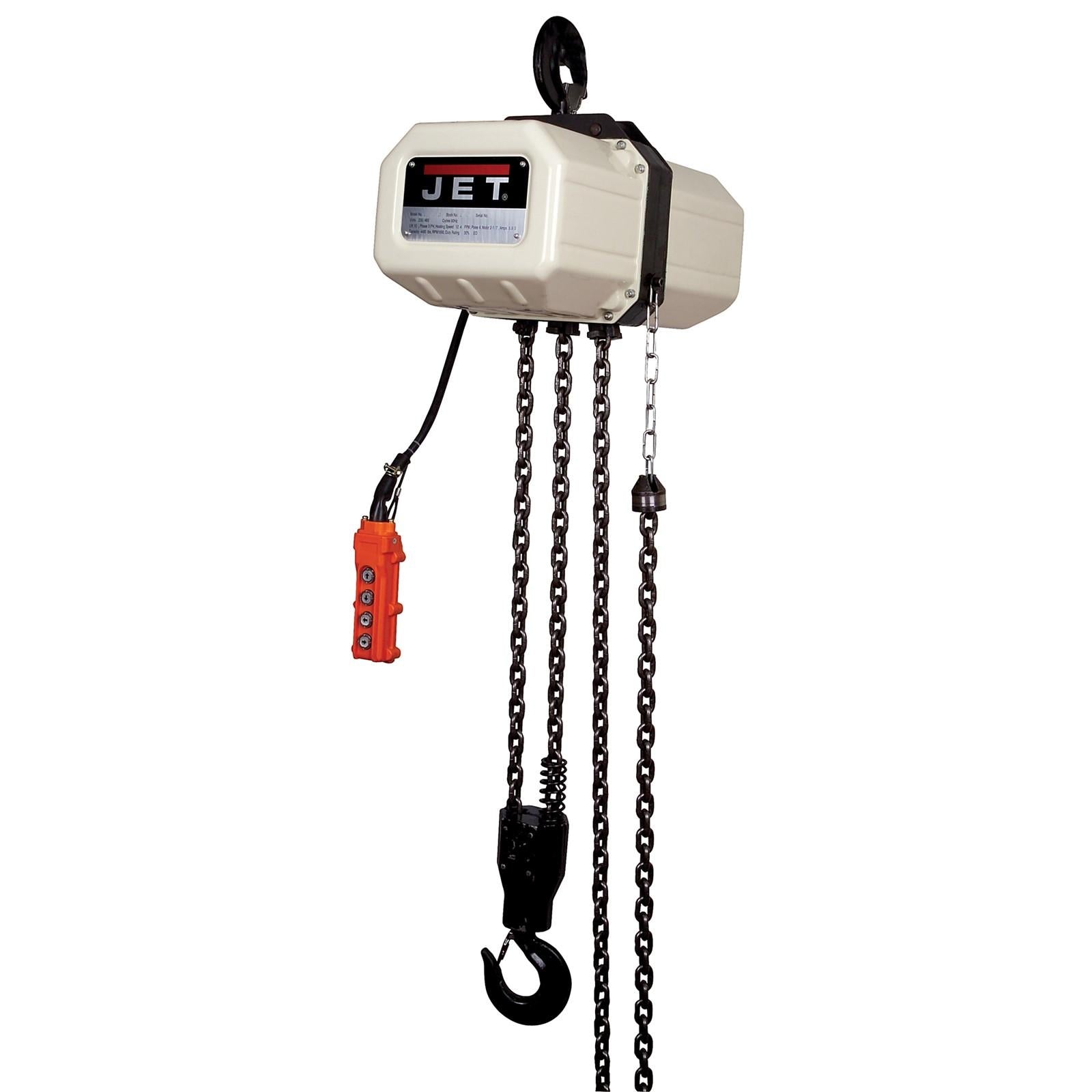

Jet 112000 Electric Chain Hoist 1 Ton 20 Inch Lift

Product Description

The JET 112000 is a single-phase electric chain hoist rated at 1 ton (2,000 pounds) capacity with a 20-inch lift. It operates on 115/230 volt power and comes prewired for 230 volts, making it ready for immediate installation in most industrial and commercial settings. Designed for overhead lifting applications, this hoist delivers controlled, powered chain movement for repetitive or heavy lifting tasks. At 181 pounds, it is a substantial unit built for fixed-installation use on trolleys, I-beams, or jib arms. Licensed rigging professionals and industrial electricians are the typical trades involved in installation and commissioning.

This hoist is suited for manufacturing facilities, warehouses, machine shops, and mechanical rooms where a durable, single-phase overhead lift solution is required. The 115/230-volt dual-voltage capability gives installers flexibility when matching to available service. The prewired 230-volt configuration reduces field setup time. Applications include lifting motors, compressors, HVAC equipment, and other heavy loads within the rated capacity.

Key Features

• 1 ton (2,000 pound) rated lifting capacity
• 20-inch lift range suitable for low-headroom installations
• Dual-voltage 115/230V motor, prewired for 230V operation
• Single-phase power supply for facilities without three-phase service
• Substantial 181-pound construction indicating heavy-duty build quality

Compatibility

Designed as an OEM-style electric chain hoist for overhead lifting installations on compatible I-beam trolleys, monorail systems, and fixed suspension points rated for the load capacity.

Installation Notes

Installation should be performed by a qualified rigger or licensed electrician familiar with ASME B30.16 overhead hoist standards and applicable NEC requirements for motor branch circuits. Verify that the supporting structure, beam, or trolley is rated for the combined weight of the hoist and maximum intended load before suspending the unit. De-energize and lock out the power supply before making any electrical connections or performing maintenance. Do not exceed the rated 1-ton capacity under any operating condition.

Technical Specifications

• Capacity: 1 ton (2,000 pounds)
• Lift: 20 inches
• Voltage: 115/230 volts
• Phase: Single phase
• Prewired Voltage: 230 volts
• Weight: 181 pounds

Standard Information

• Brand: JET
• Manufacturer Part Number: 112000
