Jergens 801020 T-handle Quick-release Pin 1/4 in 17-4 Ss

Product Description

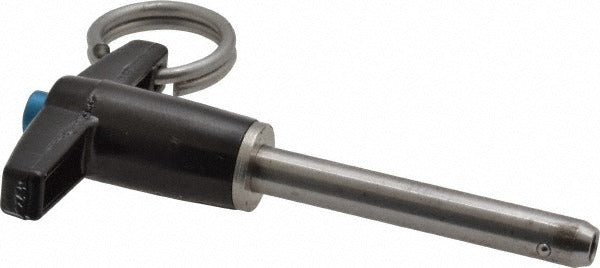

The JERGENS 801020 is a T-handle push-button quick-release pin designed for fast, tool-free pin insertion and removal in structural, jig, fixture, and assembly applications. The pin body is 17-4 stainless steel with a passivated finish, giving it strong corrosion resistance in demanding environments. The aluminum T-handle provides a secure grip for rapid cycling. With a 1/4 inch pin diameter and 1-1/2 inch usable length, this pin handles high-load applications with a double-shear breaking strength rated at 9,200 pounds. The 440C stainless steel balls are hardened to Rockwell C40, ensuring consistent locking action over repeated use cycles. Manufactured to multiple military and aerospace fastener standards.

This quick-release pin is suited for use in industrial fixtures, aerospace ground support equipment, military assemblies, marine hardware, and general fabrication setups where frequent disassembly is required. The push-button release mechanism allows one-handed operation, making it a practical choice for production lines, tooling rigs, and field service applications where speed and reliability are priorities. The passivated 17-4 stainless steel construction holds up in corrosive or high-cycle environments where carbon steel pins would not be appropriate.

Key Features

• Push-button quick-release mechanism enables fast, tool-free pin removal
• 17-4 stainless steel pin body with passivated finish for corrosion resistance
• 440C stainless steel locking balls hardened to Rockwell C40
• Double-shear breaking strength of 9,200 pounds
• Aluminum T-handle for positive one-handed grip and operation
• Meets AMS-QQ-P-35, MIL-A-8625, MIL-C-5541, MIL-H-6875, and QQ-P-416 standards

Compatibility

Designed as a standard inch-series push-button quick-release pin for use in fixtures, assemblies, and equipment requiring a 1/4 inch diameter pin with 1-1/2 inch usable length and 3 inch overall length.

Installation Notes

Installation and removal require no tools - depress the push button to retract the locking balls, insert or withdraw the pin, then release. Ensure the mating hole diameter and material are appropriate for the rated load before use. Verify pin orientation and locking ball engagement before applying load. Follow applicable facility or equipment safety procedures when working on pinned assemblies under tension or compression.
