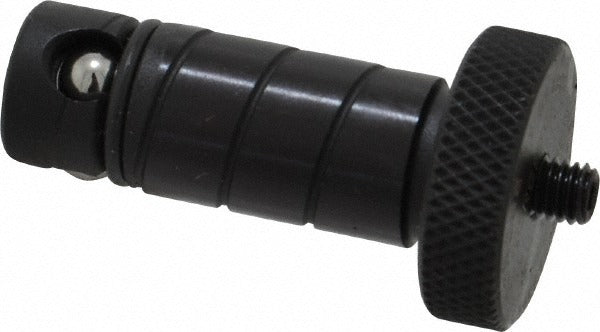

Jergens 49606 Ball Lock Modular Fixturing Shank Steel

Product Description

The JERGENS 49606 is a Ball Lock modular fixturing shank designed for use in quick-change workholding systems on machine tools and fixture plates. Machined from steel with a black finish, this shank features a 13 mm shank diameter and a shank length of 1.33 inches, with an overall length of 1.58 inches. The Ball Lock interface delivers up to 750 pounds of maximum holding force, providing repeatable and secure positioning for machining operations. Licensed machinists, toolroom technicians, and fixturing specialists install this component as part of a modular workholding setup where fast changeover and precise part location are required.

This shank is suited for use in production machining environments, toolroom applications, and fixture-intensive setups where consistent part location and rapid plate swaps reduce downtime. It is compatible with 0.75-inch-thick fixture plates and is designed to work within the Ball Lock modular fixturing system. A 3/32-inch key size is used for installation and removal. The compact head diameter of 0.875 inches and head height of 0.25 inches allow integration into tight fixture layouts without interference.

Key Features

• Ball Lock interface provides up to 750 pounds of holding force for secure, repeatable positioning
• 13 mm shank diameter with 1.33-inch shank length fits standard Ball Lock fixture plate bores
• Compatible with 0.75-inch-thick fixture plates
• Steel construction with black finish for durability and corrosion resistance in shop environments
• 3/32-inch key size for controlled installation and removal
• Compact overall length of 1.58 inches suits space-constrained fixture layouts

Compatibility

Designed for use with Ball Lock modular fixturing systems using 0.75-inch-thick fixture plates with a 13 mm shank bore.

Installation Notes

Installation is typically performed by a machinist or toolroom technician familiar with modular fixturing systems. Ensure the fixture plate and receiver are free of chips and debris before inserting the shank. Use the specified 3/32-inch key for proper engagement and removal. Always confirm the machine tool is powered down and all axes are at rest before servicing fixture components.
