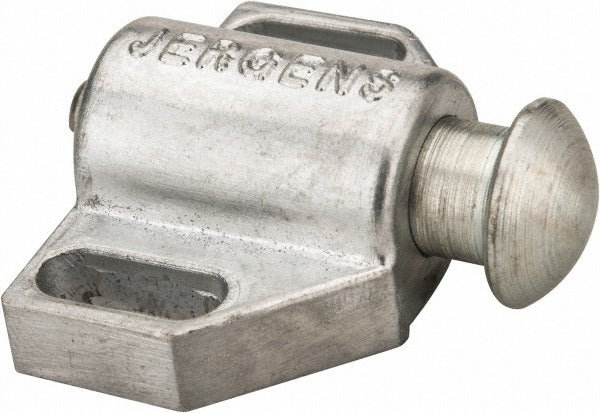

Jergens 36102 Round Spring Locating Stop

Product Description

The JERGENS 36102 is a round spring locating stop designed for workholding and fixture applications in machining and manufacturing environments. The stop features a spring-loaded steel head that retracts under load and returns to position, providing repeatable part location without manual adjustment. The body is constructed from a zinc aluminum alloy for corrosion resistance and dimensional stability. Key dimensions include a 1-1/2 inch base width, a 3/16 inch stroke length, and a 9/16 inch stop head outside diameter. Toolmakers, fixture builders, and machinists install this component when setting up jigs, fixtures, and automated transfer lines requiring consistent part seating.

The JERGENS 36102 is suited for light-duty workholding fixtures in production machining cells, assembly fixtures, and transfer tooling. Its compact footprint and standard slot-mount base allow integration into new fixture builds or drop-in replacement of worn stops on existing tooling. The 14-pound initial end force rating is appropriate for locating small-to-medium workpieces where gentle, repeatable engagement is required. Installation is typical in machine shops, tool rooms, and precision assembly environments.

Key Features

• Spring-loaded steel stop head with 3/16 inch stroke for repeatable workpiece location
• 9/16 inch stop head outside diameter with 5/8 inch flat button ID
• Zinc aluminum alloy body construction for durability and corrosion resistance
• 14-pound initial end force for controlled, gentle part engagement
• Slot-mount base with 1-1/8 inch center-to-center hole spacing for secure fixture mounting
• Compact profile: 1 inch body length by 1-1/2 inch body width, 5/8 inch overall height

Compatibility

Designed as an OEM-style replacement or new-build component for standard spring locating stop applications in machining jigs and fixtures requiring a round-head, slot-mount configuration.

Installation Notes

Installation is performed by toolmakers or fixture technicians using standard hand tools. Secure the base through the mounting slots before torquing fasteners to fixture plate specifications. Ensure the fixture plate is free of chips and burrs at the mounting surface to maintain accurate stop position. Verify stop head travel is unobstructed after installation and that the spring returns freely before placing the fixture into production.
