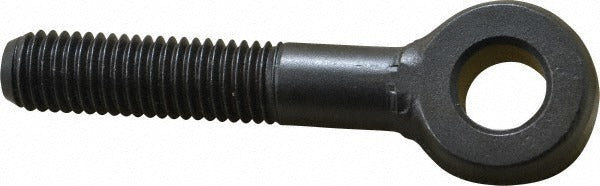

Jergens 35311 Eye Hole Rod End 5/8-11 Alloy Steel

Product Description

The JERGENS 35311 is a male-threaded eye hole rod end designed for use in mechanical linkage, actuator, and motion-control assemblies. Machined from Grade 4142 alloy steel with a black oxide finish, it delivers solid corrosion resistance and durability under load. The 5/8-11 external thread and 0.625-inch shank diameter make it a direct-fit component for standard rod end applications. With a hole center-to-end measurement of 3.6875 inches and a thread length of 2.9 inches, it fits common clevis and pivot configurations used in industrial and commercial mechanical systems. Licensed machinists and millwrights are the typical installers.

This rod end is suited for mechanical linkage systems, cylinder clevises, and pivot-point assemblies in industrial, agricultural, and commercial equipment. The eye hole head design allows for a clevis pin or bolt to pass through, creating a pivoting connection point. It is used wherever a threaded male rod end with a fixed eye is needed to transfer linear or rotational motion between components.

Key Features

• 5/8-11 external male thread for standard compatibility in inch-series linkage systems
• Grade 4142 alloy steel construction for high tensile strength and wear resistance
• Black oxide finish provides corrosion resistance in moderate-duty environments
• Eye hole head accepts a pin or bolt for pivoting clevis-style connections
• 0.625-inch shank diameter and 2.9-inch thread length suit common rod end applications
• Head outside diameter of 1.25 inches and head thickness of 1.3125 inches for solid load-bearing geometry

Compatibility

Designed as a direct-replacement or new-installation male eye hole rod end for inch-series mechanical linkage systems requiring a 5/8-11 threaded connection.

Installation Notes

Installation is performed by qualified machinists, millwrights, or maintenance mechanics. De-energize and lock out all power sources and relieve any hydraulic or pneumatic pressure before servicing connected components. Use a properly sized clevis pin through the eye hole and secure with an appropriate retaining clip or cotter pin. Verify thread engagement depth meets the load requirements of the assembly before returning the system to service.
