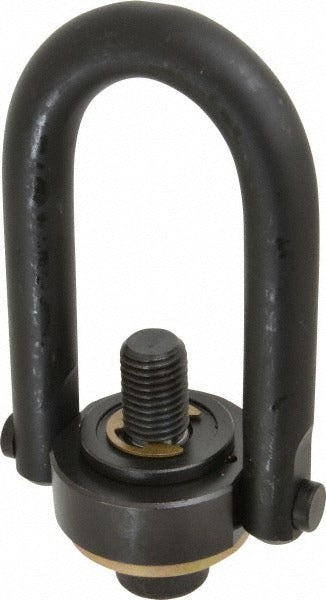

Jergens 23526 Center Pull Hoist Ring 10000 Lb Bolt-on

Product Description

The JERGENS 23526 is a safety engineered center pull hoist ring designed for bolt-on mounting in demanding lifting and rigging applications. Built from alloy steel with a black oxide finish, this hoist ring provides a 10,000 lb working load limit and accepts a 1-8 thread size fastener. The center pull design allows the load to be applied from any angle without binding or side-loading the bolt, which reduces stress on the mounting point during lifts. It is installed by licensed riggers and millwrights on machinery, molds, dies, and heavy industrial equipment where reliable, repeatable overhead lifting is required.

This hoist ring is suited for industrial manufacturing, tooling, and heavy equipment handling environments. The bolt-on configuration with a single mounting hole allows installation directly into tapped holes on workpieces without additional hardware. The black oxide finish provides mild corrosion resistance for shop and factory floor conditions. The CE standard rating makes it appropriate for applications requiring documented compliance in both domestic and international industrial settings.

Key Features

• 10,000 lb working load limit for heavy-duty lifting applications
• Center pull design allows multi-directional load application without side-loading the mounting bolt
• 1-8 thread size for direct installation into standard tapped holes
• Alloy steel construction with black oxide finish for strength and mild corrosion resistance
• Single bolt-on mount for fast installation and removal
• CE certified for compliance in industrial and international work environments

Compatibility

Designed as a bolt-on replacement or new-installation hoist ring for industrial machinery, molds, dies, and fabricated assemblies with a 1-8 tapped mounting hole requiring a 10,000 lb rated center pull lift point.

Installation Notes

Installation should be performed by a qualified rigger or millwright following applicable ASME B30 rigging standards and the equipment manufacturer's torque specifications. Ensure the mounting surface is flat and the tapped hole depth is sufficient to fully engage the bolt before applying any load. Inspect the hoist ring, mounting hardware, and surrounding material for damage or thread wear prior to each use. Never exceed the rated working load limit and do not use the ring if it shows signs of deformation, cracking, or corrosion.
