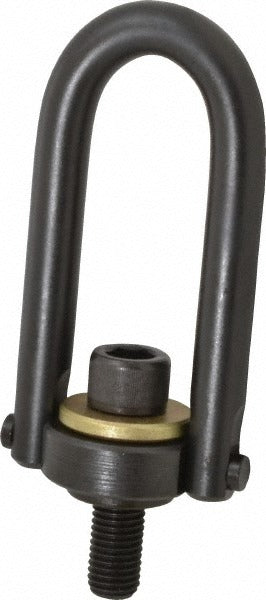

Jergens 23518 Center Pull Hoist Ring 5000 Lb 3/4-10

Product Description

The JERGENS 23518 is a safety engineered center pull hoist ring designed for secure, balanced lifting in industrial rigging and material handling applications. Rated at a 5,000 lb working load limit, it features a 3/4-10 threaded shank for positive attachment to load-bearing fixtures. Constructed from alloy steel, the ring is built to handle demanding overhead lift conditions. The center pull design allows the load to be applied along the central axis of the fastener, reducing side loading and maintaining a stable lift path. This hardware is installed by millwrights, riggers, and maintenance mechanics working with overhead hoists, cranes, and lifting fixtures.

The JERGENS 23518 is suited for use on machine tools, jigs, fixtures, molds, and fabricated assemblies that require a reliable, repositionable lift point. Its center pull geometry keeps the lifting force aligned with the bolt axis, making it appropriate for precision lifting where load control is critical. The 3/4-10 thread size fits standard tapped holes found on a wide range of industrial equipment. This hoist ring is appropriate for both shop floor and field maintenance environments where controlled overhead lifts are performed.

Key Features

• 5,000 lb working load limit for heavy-duty overhead lifting
• Safety engineered center pull design maintains axial load alignment
• 3/4-10 threaded shank for positive engagement with standard tapped holes
• Alloy steel construction for high-strength, fatigue-resistant performance
• Ring external width of 3.52 inches and internal width of 1.5 inches accommodate standard hook and shackle hardware
• Compact projection of 1.22 inches from gage line to nose end suits tight clearance installations

Compatibility

Designed as an OEM-style replacement or direct-fit hoist ring for industrial fixtures, molds, and machine assemblies using a standard 3/4-10 tapped hole lift point.

Installation Notes

Installation should be performed by qualified riggers or maintenance mechanics familiar with ASME B30.26 below-the-hook lifting device standards. Before installing or removing the hoist ring, ensure all energy sources to the associated equipment are isolated and locked out per facility LOTO procedures. Thread the hoist ring fully into the tapped hole and verify it is fully seated and secure before applying any load. Never exceed the rated working load limit and inspect the ring for visible wear, deformation, or cracking before each use.
