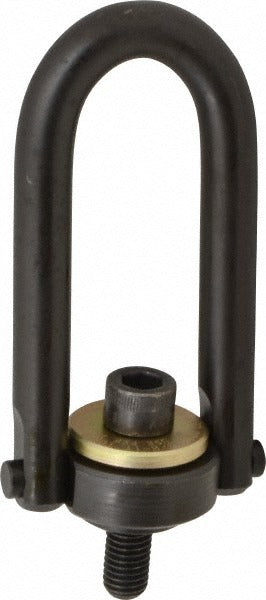

Jergens 23515 Center Pull Hoist Ring 4000 Lb Bolt-on

Product Description

The JERGENS 23515 is a safety engineered center pull hoist ring designed for bolt-on mounting to machinery, fixtures, and heavy equipment. It carries a 4,000 lb working load limit and is constructed from alloy steel with a black oxide finish for corrosion resistance. The 5/8-11 thread size and single mounting hole configuration allow straightforward installation on prepared surfaces. This hoist ring is built to pivot and swivel, keeping the lift load centered regardless of pull angle, which reduces side-load stress on the anchor point. Installation typically requires a torque of 60 ft-lb to the mounting fastener to achieve rated capacity. Rigging professionals, millwrights, and industrial maintenance technicians are the primary users.

The JERGENS 23515 is suited for industrial lifting and rigging applications where a secure, swiveling tie-on point is needed on machined parts, molds, dies, heavy fabrications, or production equipment. The center pull geometry distributes load evenly during vertical and angled lifts. Its CE-marked construction meets recognized safety standards, making it appropriate for use in facilities that require documented compliance. It is intended for use with compatible hoisting hardware and overhead lifting equipment operated by qualified personnel.

Key Features

• 4,000 lb working load limit for demanding industrial lift applications
• Bolt-on mount with 5/8-11 thread size and single mounting hole for direct installation
• Center pull swivel design reduces side-loading and keeps load path aligned
• Alloy steel construction with black oxide finish for strength and corrosion resistance
• CE-certified to recognized rigging and lifting standards
• 60 ft-lb installation torque specification ensures full rated capacity is achieved

Compatibility

Designed as a bolt-on replacement or new-install center pull hoist ring for industrial machinery, tooling, and equipment accepting a 5/8-11 threaded mounting hole with adequate boss material to support the rated load.

Installation Notes

Installation should be performed by a qualified millwright, rigger, or industrial maintenance technician familiar with ASME B30.26 and applicable lifting safety standards. De-energize, depressurize, and secure any equipment before installing or replacing hoist rings. Torque the mounting fastener to the specified value using a calibrated torque wrench to ensure the ring achieves its rated working load limit. Inspect the hoist ring for wear, deformation, or damage before each lift and remove from service if any defects are found.
