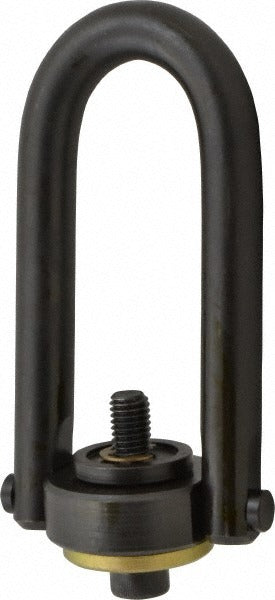

Jergens 23511 Center Pull Hoist Ring 2500 Lb Bolt-on

Product Description

The JERGENS 23511 is a safety engineered center pull hoist ring designed for bolt-on mounting in industrial lifting applications. Built from alloy steel with a black oxide finish, this hoist ring delivers a 2,500 lb working load limit and is engineered to pivot and swivel freely, keeping the load path centered and reducing side-loading stress on the fastener. The single-hole bolt-on design accepts a 1/2-13 thread size and installs with a specified torque of 28 ft-lb. Licensed trades and rigging professionals working in manufacturing, heavy equipment service, and fabrication shops rely on this type of hardware for controlled overhead lifts on machinery and structural components.

The JERGENS 23511 is suited for use on machine tools, dies, molds, fixtures, and other industrial equipment requiring a secure, repeatable overhead lift point. The center pull geometry allows the ring to align with the load vector during a lift, which is critical when rigging asymmetrical loads or working in confined vertical clearances. It is appropriate for both single-point and multi-point lift configurations where a bolt-on attachment is required. This hoist ring meets CE standards, making it suitable for applications where European conformity is required on industrial equipment.

Key Features

• 2,500 lb working load limit for reliable overhead lifting capacity
• Bolt-on mount with 1/2-13 thread size and single mounting hole
• Alloy steel construction for high strength-to-weight performance
• Black oxide finish for corrosion resistance in shop environments
• 28 ft-lb installation torque for consistent preload and secure seating
• CE certified to meet applicable industrial lifting standards

Compatibility

Designed as a bolt-on replacement or new-installation hoist ring for industrial equipment, molds, dies, and fixtures requiring a 1/2-13 threaded mount point with a 2,500 lb working load limit.

Installation Notes

Installation should be performed by a qualified rigger or licensed millwright familiar with ASME B30.26 and applicable overhead lifting regulations. Ensure the mating threaded hole is clean, undamaged, and of sufficient thread engagement depth before installation. Torque the fastener to 28 ft-lb using a calibrated torque wrench. Inspect the hoist ring for visible damage, deformation, or corrosion before each lift and remove from service immediately if any defects are found.
