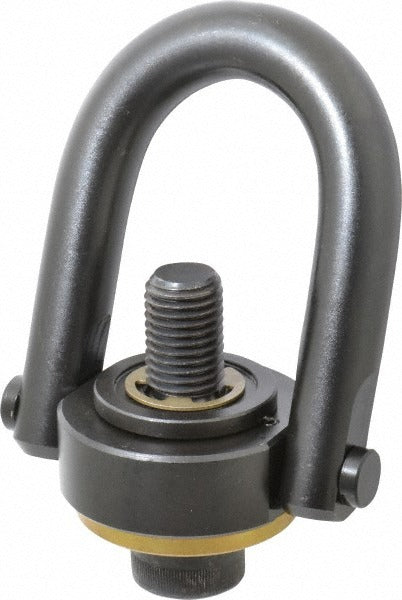

Jergens 23426 Center Pull Hoist Ring Bolt-on 10000 Lb

Product Description

The JERGENS 23426 is a safety engineered center pull hoist ring designed for bolt-on installation in heavy lifting applications. Built from 4140 alloy steel with a black oxide finish, this hoist ring carries a 10,000 lb working load limit and is engineered to maintain centered load alignment during overhead lifts. The single bolt-on mounting design simplifies installation on machinery, dies, molds, and large fabricated components. It meets CE standards and is installed by millwrights, maintenance technicians, and rigging professionals in industrial and manufacturing environments.

This hoist ring is suited for use on production machinery, heavy tooling, press dies, and fabricated steel assemblies requiring a permanent or semi-permanent lifting point. The center pull geometry keeps the load path aligned through the ring regardless of the sling angle, reducing side-loading stress on the mounting bolt. It is appropriate for both shop floor lifting operations and field maintenance work where a reliable, load-rated attachment point is required.

Key Features

• 10,000 lb working load limit for heavy industrial lifts
• 4140 alloy steel construction for high strength and durability
• Black oxide finish provides corrosion resistance in shop environments
• Single bolt-on mount with 1-8 thread size for straightforward installation
• CE-rated design meets recognized lifting hardware standards
• Center pull geometry reduces off-axis loading on the mounting bolt

Compatibility

Designed as an OEM-style bolt-on lifting point for machinery, molds, dies, and fabricated assemblies using a 1-8 threaded mounting hole where a 10,000 lb rated hoist ring attachment is required.

Installation Notes

Installation should be performed by a qualified millwright, rigger, or maintenance technician familiar with ASME B30.26 below-the-hook lifting device requirements. The mounting bolt must be torqued to 230 ft-lb using a calibrated torque wrench before any lift is attempted. Never use this hoist ring if the mounting hole thread is damaged, stripped, or undersized. Inspect the ring and mounting hardware for wear or deformation before each use.
