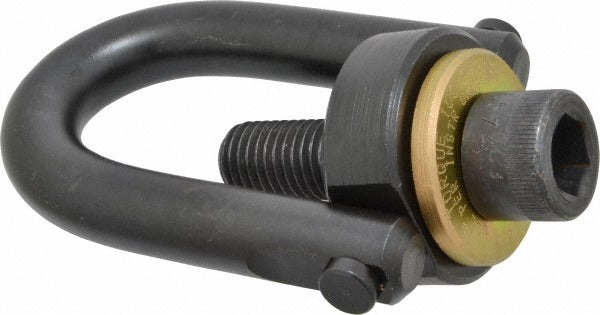

Jergens 23418 Center Pull Hoist Ring 5000 Lb 3/4-10

Product Description

The JERGENS 23418 is a safety engineered center pull hoist ring designed for bolt-on installation in heavy rigging and lifting applications. Built from 4140 alloy steel with a black oxide finish, this hoist ring provides a 5,000 lb working load limit with a single 3/4-10 threaded mounting hole. The center pull design allows the ring to swivel and pivot freely, keeping the load path aligned regardless of the lift angle. At 3 pounds, it is a robust forged assembly suited for demanding industrial lifting environments. Installation requires a torque of 100 ft/lb to the mounting bolt. This hardware is CE-rated and engineered for use by qualified rigging and millwright professionals.

Center pull hoist rings are used in manufacturing, fabrication, and maintenance settings where machinery, molds, dies, tooling, and heavy components require repeated or precision lifts. The bolt-on mount makes this ring suitable for both permanent and temporary attachment points on steel structures and machined components. The swivel and pivot action of the ring reduces side-loading on the anchor point during multi-angle lifts, improving safety and load control. This part is appropriate for industrial facilities, machine shops, and any operation requiring certified overhead lifting hardware.

Key Features

• 5,000 lb working load limit for heavy industrial lifts
• 4140 alloy steel construction for high tensile strength
• Black oxide finish provides corrosion resistance in shop environments
• Bolt-on single-hole mount with 3/4-10 thread size
• Center pull design allows 360-degree swivel and pivot for aligned load paths
• CE certified to meet applicable lifting hardware standards
• 100 ft/lb installation torque specification for secure mounting

Compatibility

Designed as an OEM-style bolt-on replacement or new-installation hoist ring for machinery, tooling, and fabricated steel components requiring a 3/4-10 threaded anchor point with a 5,000 lb working load limit.

Installation Notes

Installation must be performed by a qualified rigger or millwright familiar with ASME B30.26 overhead lifting hardware requirements. Before installation or removal, ensure all suspended loads are fully lowered and the lifting system is de-energized or secured. Mount the hoist ring to a clean, flat, load-bearing steel surface and torque the fastener to 100 ft/lb using a calibrated torque wrench. Inspect the ring for cracks, deformation, or thread damage before each use and remove from service if any defects are found.
