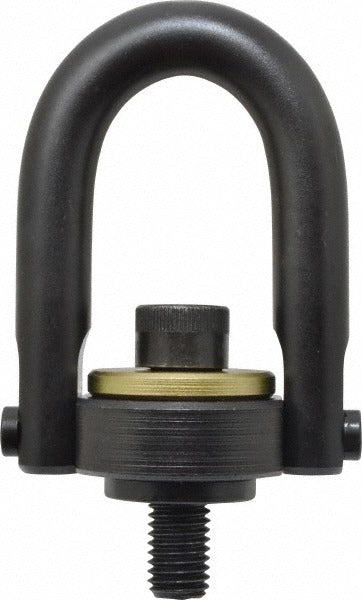

Jergens 23414 Center Pull Hoist Ring Bolt-on 4000 Lb

Product Description

The JERGENS 23414 is a safety engineered center pull hoist ring designed for secure, load-rated lifting in industrial rigging applications. The bolt-on mount uses a single 5/8-11 threaded hole and is torqued to 60 ft-lb for a fixed, reliable connection. Constructed from 4140 alloy steel with a black oxide finish, it carries a 4,000 lb working load limit. The center pull design allows the ring to swivel and pivot freely, keeping the load path centered and reducing stress on the mounting hardware. Millwrights, maintenance technicians, and rigging crews install this ring when lifting heavy machinery, molds, or fabricated assemblies.

This hoist ring is suited for industrial manufacturing environments where repeatable, overhead lifting points are required on machinery or tooling. The bolt-on configuration allows installation directly into a tapped hole in the workpiece, making it a common choice for machine builders, die shops, and heavy fabrication operations. The CE standard compliance makes it appropriate for facilities operating under European safety requirements as well as general North American industrial use.

Key Features

• 4,000 lb working load limit with center pull swivel and pivot action for multi-angle lifts
• 5/8-11 bolt-on mount torqued to 60 ft-lb for a secure, fixed connection
• 4140 alloy steel construction for high strength in demanding lifting environments
• Black oxide finish provides corrosion resistance and surface protection
• CE certified for compliance with applicable safety standards
• Single mounting hole design simplifies installation into existing tapped locations

Compatibility

Designed as a bolt-on replacement or new-installation hoist ring for any workpiece with a tapped 5/8-11 mounting hole requiring a 4,000 lb rated center pull lift point.

Installation Notes

Installation should be performed by a qualified millwright or rigging professional familiar with lifting hardware requirements. Torque the bolt-on mount to 60 ft-lb using a calibrated torque wrench before placing the ring under any load. Verify the receiving hole thread condition and depth before installation, and never exceed the rated working load limit. Inspect the hoist ring for cracks, deformation, or thread damage before each use.
