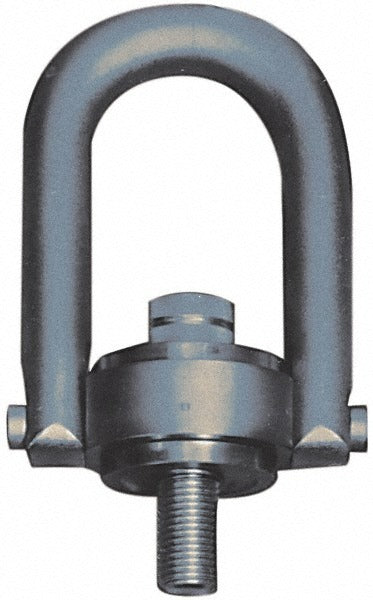

Jergens 23404 Center Pull Hoist Ring 550 Lb 1/4-20

Product Description

The JERGENS 23404 is a safety engineered center pull hoist ring designed for secure vertical and multi-directional lifting applications. Built from alloy steel, this hoist ring threads directly into a tapped hole using a 1/4-20 thread and provides a working load limit of 550 pounds. The center pull design allows the load to be applied along the central axis of the fastener, reducing bending stress on the threaded connection during lift. Rigging professionals and millwrights rely on this type of hardware for machine positioning, die handling, and precision equipment lifts where load alignment and safety factor compliance are critical.

This hoist ring is suited for use in industrial and manufacturing environments where a compact, threaded lifting point is required. The 1/4-20 thread size makes it appropriate for lighter machinery components, tooling fixtures, and machined parts that require a reliable and repeatable lift point. Its safety engineered construction is intended to meet the demands of professional rigging and lifting operations in both shop and field settings.

Key Features

• 550 lb working load limit for rated, load-tested lifting performance
• 1/4-20 thread size for direct installation into standard tapped holes
• Alloy steel construction for strength and durability under load
• Center pull design minimizes bending stress on the threaded shank during vertical lifts
• Compact ring profile with 1.84 inches external width suits tight clearance installations
• 0.75 inches internal ring width accommodates standard rigging hardware and shackles

Compatibility

Designed as an OEM-style threaded hoist ring for use in industrial fixtures, tooling, and machinery components requiring a 1/4-20 tapped lift point with a 550 lb working load limit.

Installation Notes

Installation should be performed by a qualified rigger or millwright familiar with ASME B30.26 standards for rigging hardware. Ensure the receiving tapped hole meets the required thread depth and material strength to support the rated load before installing. De-energize and lock out any associated equipment before attaching rigging. Do not exceed the stated working load limit or use this hardware for overhead lifts without confirming the full rigging system is rated appropriately.
