Jergens 22702 Angular Handwheel 3 Inch Aluminum

Product Description

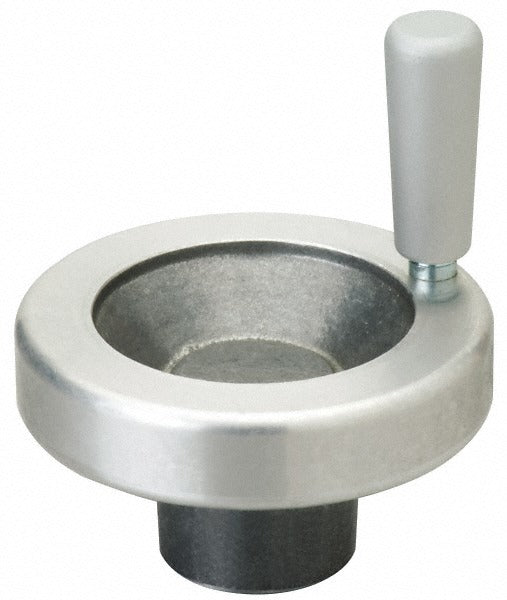

The JERGENS 22702 is an angular handwheel with handle, manufactured from Grade 319 aluminum alloy for a balance of strength and light weight. Designed for manual valve and machine control applications, this handwheel measures 3 inches in overall diameter with a 1-1/4 inch hub diameter and a 1-7/32 inch hub length. The angular spoke profile provides a positive grip surface for operators requiring precise rotational control. Maintenance technicians, millwrights, and machine builders install this type of hardware on manual valves, jigs, fixtures, and industrial equipment where hand-operated positioning is required.

This handwheel is suited for use in light industrial and manufacturing environments. Typical applications include manual override controls on valves, feed screws, and positioning fixtures in machine shops, assembly lines, and process equipment. The aluminum alloy construction resists corrosion in moderately demanding environments. The 5/8 inch smaller bore diameter and 1-11/16 inch larger diameter range accommodates a variety of shaft and bushing configurations.

Key Features

• 3 inch overall diameter for a compact footprint in tight control panels or machine enclosures
• Grade 319 aluminum alloy construction provides durability with reduced component weight
• 1-1/4 inch hub diameter with 1-7/32 inch hub length for secure shaft engagement
• Angular handwheel profile with integrated handle for improved torque application
• Bore range from 5/8 inch to 1-11/16 inch accommodates multiple shaft sizes

Compatibility

Designed as an OEM-style or replacement manual control handwheel for industrial valves, machine tool feed mechanisms, and positioning fixtures requiring a 3 inch diameter aluminum handwheel with handle.

Installation Notes

Installation is typically performed by millwrights, maintenance mechanics, or machine builders. Before installation, ensure the equipment is de-energized, de-pressurized, and locked out per applicable OSHA lockout/tagout procedures. Verify shaft diameter compatibility with the hub bore range before mounting. Secure the handwheel to the shaft using the appropriate key, set screw, or bushing per the equipment manufacturer's specifications.
