Jergens 215-066109 Thread Locking Insert Unf Heavy-duty

Product Description

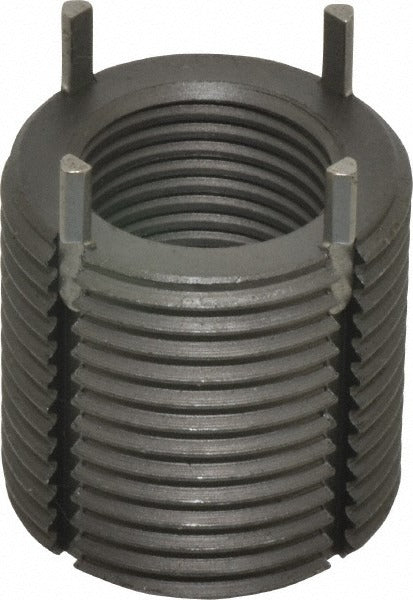

The JERGENS 215-066109 is a heavy-duty keylocking thread locking insert designed to create a permanent, load-bearing threaded hole in parent materials that require a stronger thread than the base material alone can provide. Machined from C1215 carbon steel with a zinc phosphate coating, this insert features a 3/4-16 UNF internal thread and a 1-1/8-12 UNF external thread. The overall length is 1.12 inches. The keylocking design uses locking keys driven into slots to mechanically anchor the insert, resisting both torque and pushout forces under heavy load. Licensed machinists, maintenance technicians, and tooling specialists install this type of insert in production and MRO applications.

This insert is suited for use in ferrous and non-ferrous parent materials where thread stripping is a concern or where a damaged thread must be restored to full load capacity. Typical applications include heavy equipment, aerospace fixtures, tooling plates, and industrial machinery where vibration, high clamp loads, or repeated fastener removal cycles are present. The zinc phosphate finish provides baseline corrosion resistance for indoor industrial environments. Installation is performed with a drill, tap, and keylocking installation tool set matched to the insert size.

Key Features

• 3/4-16 UNF internal thread with 2B class of fit for standard fastener compatibility
• 1-1/8-12 UNF external thread with 2A class of fit for secure parent material engagement
• Heavy-duty keylocking design resists torque and axial pushout under high load
• C1215 carbon steel construction for strength in demanding service environments
• Zinc phosphate coating for corrosion resistance and surface preparation
• Meets NAS 1394 standard for keylocking threaded inserts

Compatibility

Designed as a standard keylocking thread insert replacement or new installation fitting for applications requiring a 3/4-16 UNF internal thread in a 1-1/8-12 UNF tapped parent hole per NAS 1394.

Installation Notes
