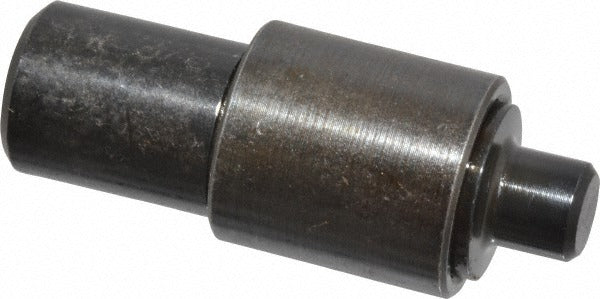

Jergens 215-064724 Thread Insert Hand Installation Tool

Product Description

The JERGENS 215-064724 is a hand installation tool designed for installing key locking threaded inserts into prepared holes. It is compatible with UNC thread sizes ranging from 3/8-16 and 3/8-24 up to 1/2-13, making it a practical choice for technicians and machinists working with key locking insert systems. The tool supports insert lengths of 0.5000 inches and is intended for manual, hand-driven installation without the need for power tools. At 0.0833 pounds, it is compact and lightweight for bench or field use. Maintenance professionals, millwrights, and mechanical technicians typically keep this tool on hand when working with thread repair or thread reinforcement applications.

This tool is suited for use in manufacturing, maintenance, and repair operations where key locking inserts are used to create durable threaded connections in metal workpieces. It is appropriate for both light industrial and precision assembly environments. The hand installation method gives the user controlled, tactile feedback during insert seating, reducing the risk of cross-threading or over-driving the insert. It is commonly used when a power driver is not available or not appropriate for the work environment.

Key Features

• Compatible with key locking threaded inserts in UNC thread standard
• Covers thread sizes from 3/8-16 and 3/8-24 minimum up to 1/2-13 maximum
• Designed for 0.5000-inch insert length
• Hand installation type for controlled, manual insert driving
• Lightweight at 0.0833 pounds for easy handling at the workbench or in the field

Compatibility

Designed for use with key locking threaded inserts in UNC thread sizes from 3/8-16 and 3/8-24 up to 1/2-13.

Installation Notes

Installation is performed by hand without power tools, making it suitable for precision applications where torque control is critical. Before use, ensure the host material has been properly drilled and tapped to the required insert specification. Follow the insert manufacturer's seating instructions and confirm the insert is fully seated and flush before applying load. This tool is typically used by machinists, maintenance technicians, and millwrights in accordance with applicable facility and equipment standards.
