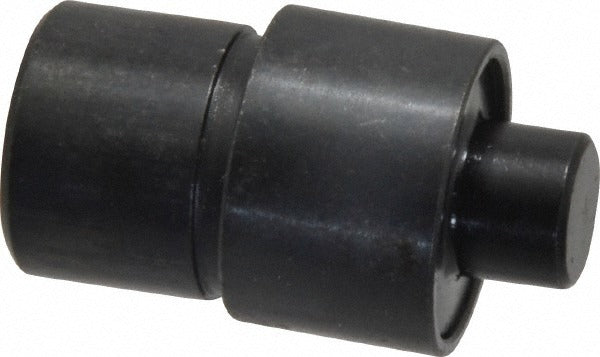

Jergens 215-064708 Thread Insert Hand Installation Tool

Product Description

The JERGENS 215-064708 is a hand installation tool designed for setting key locking thread inserts in threaded holes. It works with UNC-threaded key locking inserts and covers a thread size range from 5/8-11 and 5/8-18 up to 7/8-14. The tool drives the insert into a prepared host material by hand, allowing controlled installation without power tools. At an insert engagement length of 1.12 inches, this tool suits standard-depth insert applications. Machinists, maintenance technicians, and toolroom professionals use this type of tool when installing locking inserts in metal, composite, or other structural materials where thread retention is critical.

This installation tool is suited for shop floor, maintenance, and repair applications where key locking inserts must be installed by hand rather than with a power driver. It is appropriate for use in both production and field repair scenarios. The UNC thread compatibility makes it a common choice for general industrial fastening work in North American shops. Typical host materials include steel, aluminum, and cast iron where stripped or reinforced threads require a durable locking insert solution.

Key Features

• Hand installation tool for key locking thread inserts
• Covers minimum thread size of 5/8-11 and 5/8-18 up to maximum 7/8-14
• Designed for UNC thread standard inserts
• Insert engagement length of 1.12 inches suits standard-depth applications
• Manual operation allows controlled, torque-sensitive installation without power tools

Compatibility

Compatible with key locking thread inserts in UNC thread sizes ranging from 5/8-11 and 5/8-18 minimum up to 7/8-14 maximum, as specified by the manufacturer.

Installation Notes

Installation of key locking thread inserts is typically performed by machinists or maintenance technicians. Before beginning, ensure the host material is properly drilled and tapped to the correct thread specification per the insert manufacturer's requirements. Use the hand tool to drive the insert flush or to the specified depth without overtorquing, which can damage the host threads. Always follow applicable shop safety practices and the insert manufacturer's installation instructions.
