Jcm 201-019001 Coupling 1-1/2 x 5 in.

Product Description

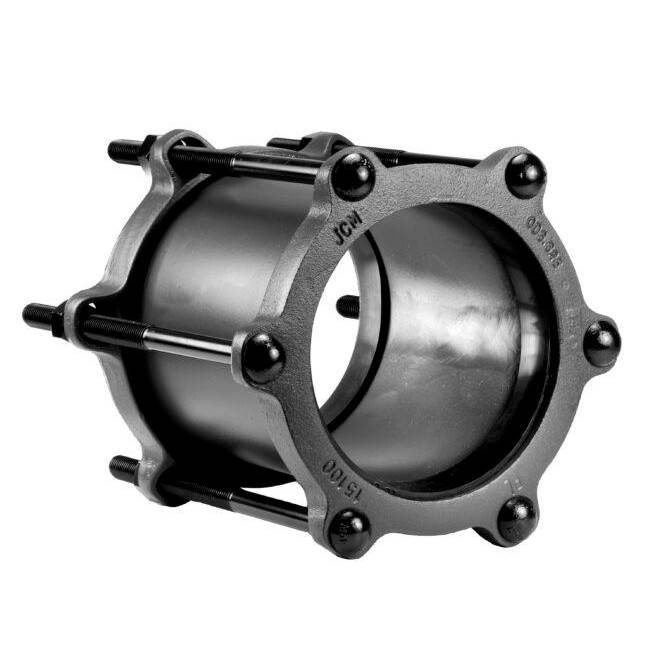

The JCM 201-019001 steel coupling provides an easy way to join plain end pipes, especially steel, galvanized, PVC, and other pipes with standard steel dimensions. It is suitable for pipe sizes 1/2" - 24". JCM 201 couplings are furnished standard with black "ECoat" electrocoat epoxy.

• No beveling, costly threading, or exact pipe alignment is required.
• Assembly/disassembly of pipe sections is fast.
• Quick and simple to install, using only a wrench.

Product Highlights

The JCM 201-019001 coupling makes pipe connections simple. Couplings are applicable for use on steel, galvanized, PVC and other pipe with standard steel dimensions.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 201-019001
• Country of Origin: China

Technical Specifications

• ANSI: ANSI 372, ANSI 61, ANSI A21.11, ANSI C219
• ASTM: ASTM A-242, ASTM A-307, ASTM A-36, ASTM A-512, ASTM A-53, ASTM A-536, ASTM D-2000
• AWWA: AWWA C-111, AWWA C-213, AWWA C-219
• Clean Bagged: No
• Coating: Black Electrocoated Epoxy
• Collection: Model #201
• End Connection 1: Bolt
• End Connection 2: Bolt
• End Connections: Bolt
• FM Approved: No
• Fitting Size 1: 1-1/2
• Fitting Size 2: 1-1/2
• Fitting Sizes: 1-1/2 in
• Fitting Type: Coupling, Straight
• IAPMO Listed: No
• Length: 5 in
• Material: Steel
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure Class: 150#
• UL Listed: No
• Type: Bolt Style
• Nominal Size: 1-1/2 inch
• Standards: ASTM, AWWA
• Fitting/Connector Type: Coupling
• Pressure Rating: 250 psi
• Series: 201
• Thickness: 0.157 in
• Product Type: Coupling
• Finish: Heavy Black E Coat
• Applications: Steel pipe
• Bolt Material: Low Alloy
• Gasket Material: Nitrile Butadiene Rubber
• Middle Ring Material: Steel
• Nominal Pipe Size: 1-1/2''
• Number Of Bolts: 2
• Pipe Outer Diameter: 1.9''
• Sleeve Length: 5''
• Sleeve Thickness: 0.16''
