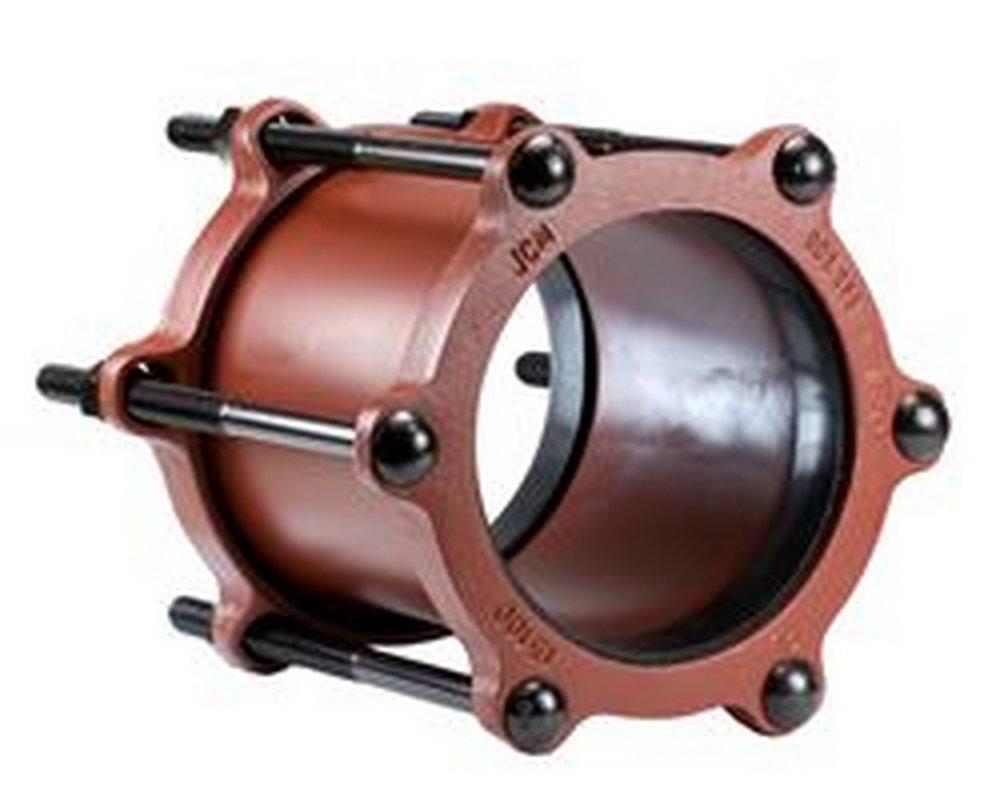

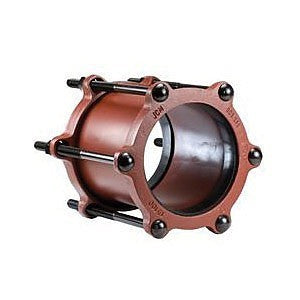

Jcm 201-016601 Pipe Coupling 1-1/4 in

Product Description

The JCM 201-016601 pipe coupling is designed for joining steel, galvanized, PVC, and other pipes with standard steel dimensions from 1/2" to 24". It is also available for cast iron and other pipes in sizes 14" and larger. This coupling has a 1-1/4 in nominal size, 0.138 in thickness and 5 in length.

• Joins steel, galvanized, PVC, and other pipes
• Suitable for pipes with standard steel dimensions 1/2 to 24 in
• Features a heavy coat of corrosion-resistant shop coat primer finish

Product Highlights

The JCM pipe coupling is ideal for use in various applications. It features ductile iron ASTM A-536 followers and a nitrile butadiene rubber gasket.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 201-016601

Technical Specifications

• ANSI: ANSI 372, ANSI 61, ANSI A21.11, ANSI C219
• ASTM: ASTM A-242, ASTM A-307, ASTM A-36, ASTM A-512, ASTM A-53, ASTM A-536, ASTM D-2000
• AWWA: AWWA C-111, AWWA C-213, AWWA C-219
• Clean Bagged: No
• Coating: Black Electrocoated Epoxy
• Collection: Model #201
• End Connection 1: Bolt
• End Connection 2: Bolt
• End Connections: Bolt
• FM Approved: No
• Fitting Size 1: 1-1/4
• Fitting Size 2: 1-1/4
• Fitting Sizes: 1-1/4 in
• Fitting Type: Coupling, Straight
• IAPMO Listed: No
• Length: 5 in
• Material: Carbon Steel
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Pressure Class: 150#
• UL Listed: No
• Pipe Size: 1-1/4 in
• Series: 201
• Dimensions: 1.66 in OD
• Fitting/Connector Type: Coupling
• Nominal Size: 1-1/4 in
• Pressure Rating: 250 psi
• Thickness: 0.138 in
• Brand: JCM Industries
• UNSPSC: 40172602
• Manufacturer: JCM Industries
• Manufacturer Part Number: 201-016601
• Nominal: 1-1/4 in
• Pressure: 250 psi
• OD: 1.66 in
• Temperature: -40 to 212 deg F
• Manufacturers: JCM Industries
