Jcm 110-0350-6 Model #110 Patch Clamp 3 x 3 in.

Product Description

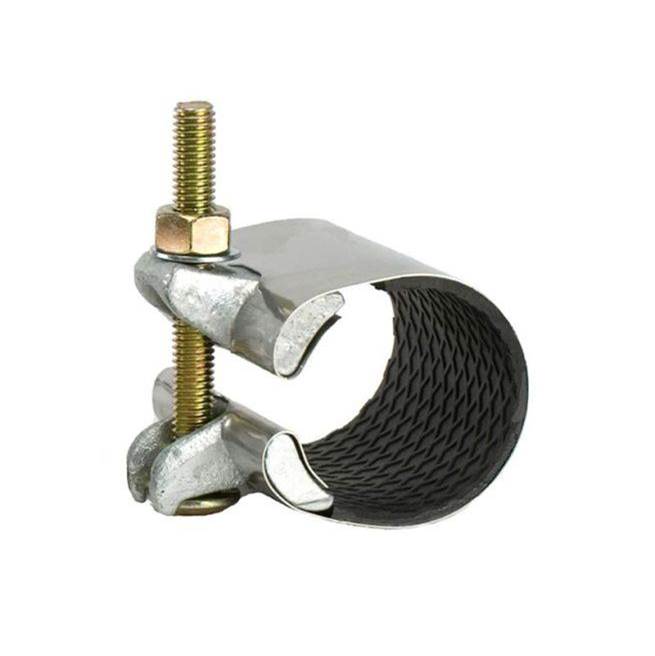

The JCM 110-0350-6 Model #110 patch clamp provides fast, economical repair to permanently fix pinholes, punctures, or splits in steel pipes. The stainless steel band conforms to the pipe circumference, and bolt torque is applied directly to the spot gasket for sealing. Standard clamp furnished with buna-n gasket.

• Fast, economical repair clamps
• Permanently repair pinholes, punctures or splits in steel pipe
• Partial gasket creates a patch area applied directly over the damage

Product Highlights

The JCM patch clamp is designed for fast and effective repair of steel pipes, ensuring a secure and lasting seal.

Product Information

Standard Information

• Brand: JCM
• Manufacturer Part Number: 110-0350-6

Technical Specifications

• ANSI: ANSI 372, ANSI 61
• ASTM: ASTM A-536
• Application: Pipe Repair
• Coating: Electrogalvanized
• Collection: Model #110
• Diameter - Outside: 3-1/2 in
• Fits Pipe Size: 3 in
• Material: Ductile Iron, Rubber, Stainless Steel, Steel
• Material Type: 304, Buna-N
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Product Type: Repair Clamp
• Width: 6
• Finish: Electro Galvanized
• Band Material: 18-8 304 Stainless Steel
• Bolt Finish: Electro Galvanized
• Bolt Material: Stainless Steel
• Clamp Width: 6''
• Gasket Material: Nitrile Butadiene Rubber
• Hardware Material: Electro Galvanized Steel
• Lug Material: Ductile Iron
• Nominal Pipe Size: 3''
• Pipe Outer Diameter: 3.5''
• Series: 100
