JB Industries WM-2 Climate Class Wireless Manometer Set

Product Description

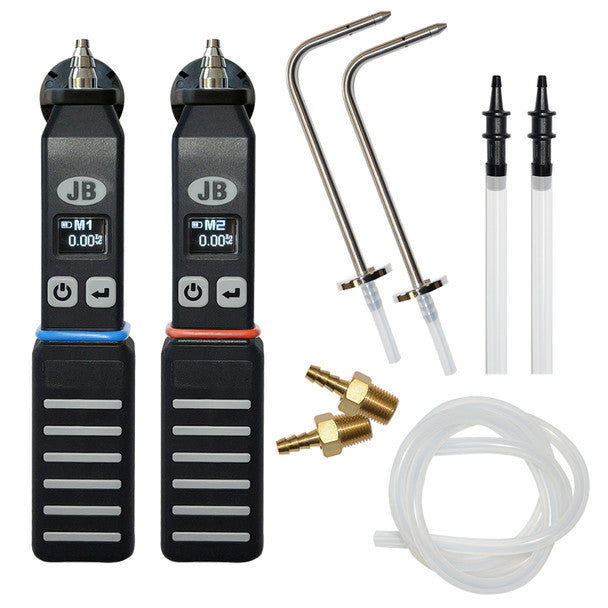

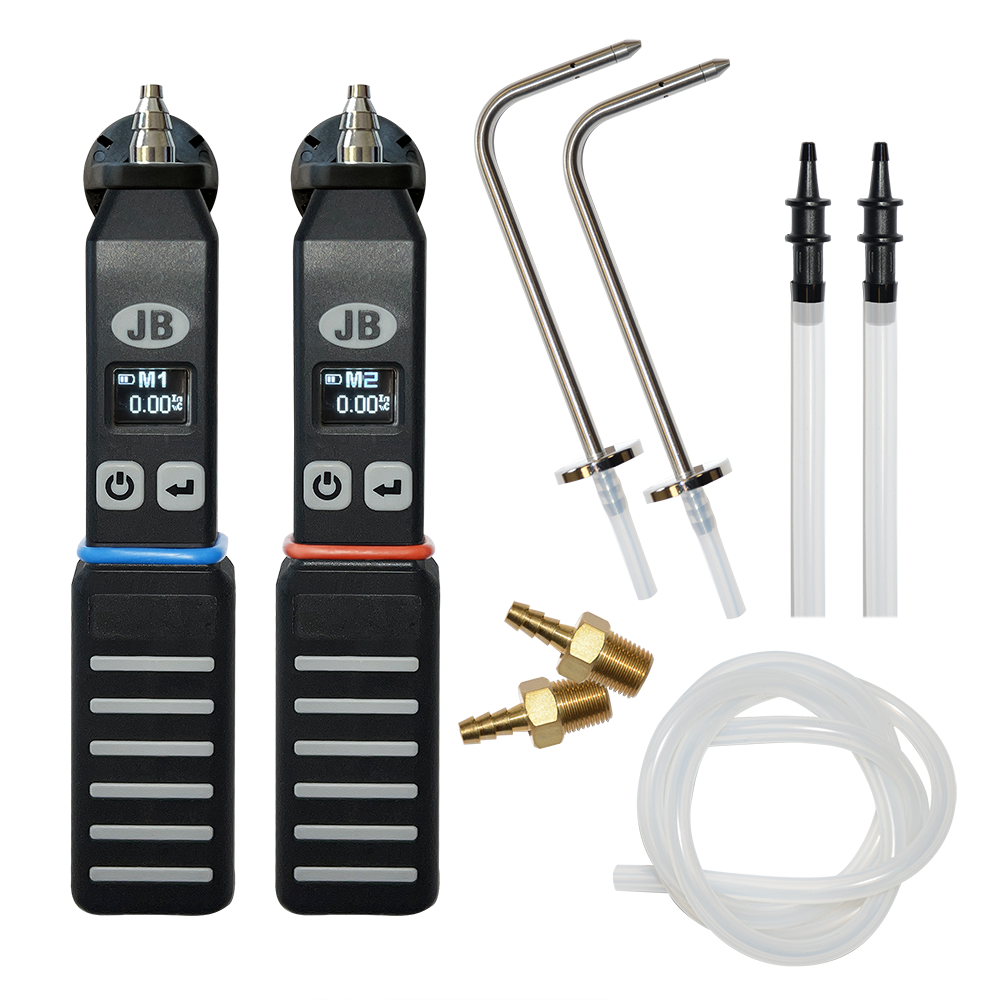

The JB Industries Climate Class Wireless Digital Manometer, model WM-2, is a tool for measuring static pressure in HVAC systems. It features a digital OLED display for clear readings. This device can operate independently or connect wirelessly through the JB GO V2 or measureQuick apps for remote monitoring. It measures return, supply, and total external static pressure (TESP). The set includes probes and short hoses for flexible configurations, also checking gas pressure at regulator inlets and outlets using a 1/8 NPT fitting or slide gas adapter.

• Measures static pressure up to +/- 60 inches of water column.
• Wireless connectivity extends up to three hundred fifty feet.
• Powered by two AA batteries with about one hundred twenty hours of battery life.

Product Highlights

This manometer is essential for HVAC applications, offering accurate pressure readings, flexible connectivity options, and ease of use.

Product Information

Standard Information

• Brand: JB Industries
• MPN: WM-2

Technical Specifications

• Measurement Type: Static Pressure
• Accuracy: +/- 0.02 from 0 to 2 inches WC, +/- 1.5% FS from 2 to 60 inches WC
• Static Pressure Measurement Range: +/- 60 inches WC
• Units of Measure: inches WC, mm WC, mbar, psi, Pa
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: 14°F to 140°F (-10°C to 60°C)
• Wireless Range: Up to 350 feet (106.6m), dependent on environment
• Power Supply: 2 AA batteries (included)
• Battery Life: Approximately 120 hours
• Display: OLED
• Unit Weight: 8 oz
• Compatibility: iOS Version: 10.0+, Android Version: 6.0+
• Battery Life Indicator: Yes
• Warranty: 1 Year
