JB Industries JB-M2-460 Compound Manifold Gauge

Product Description

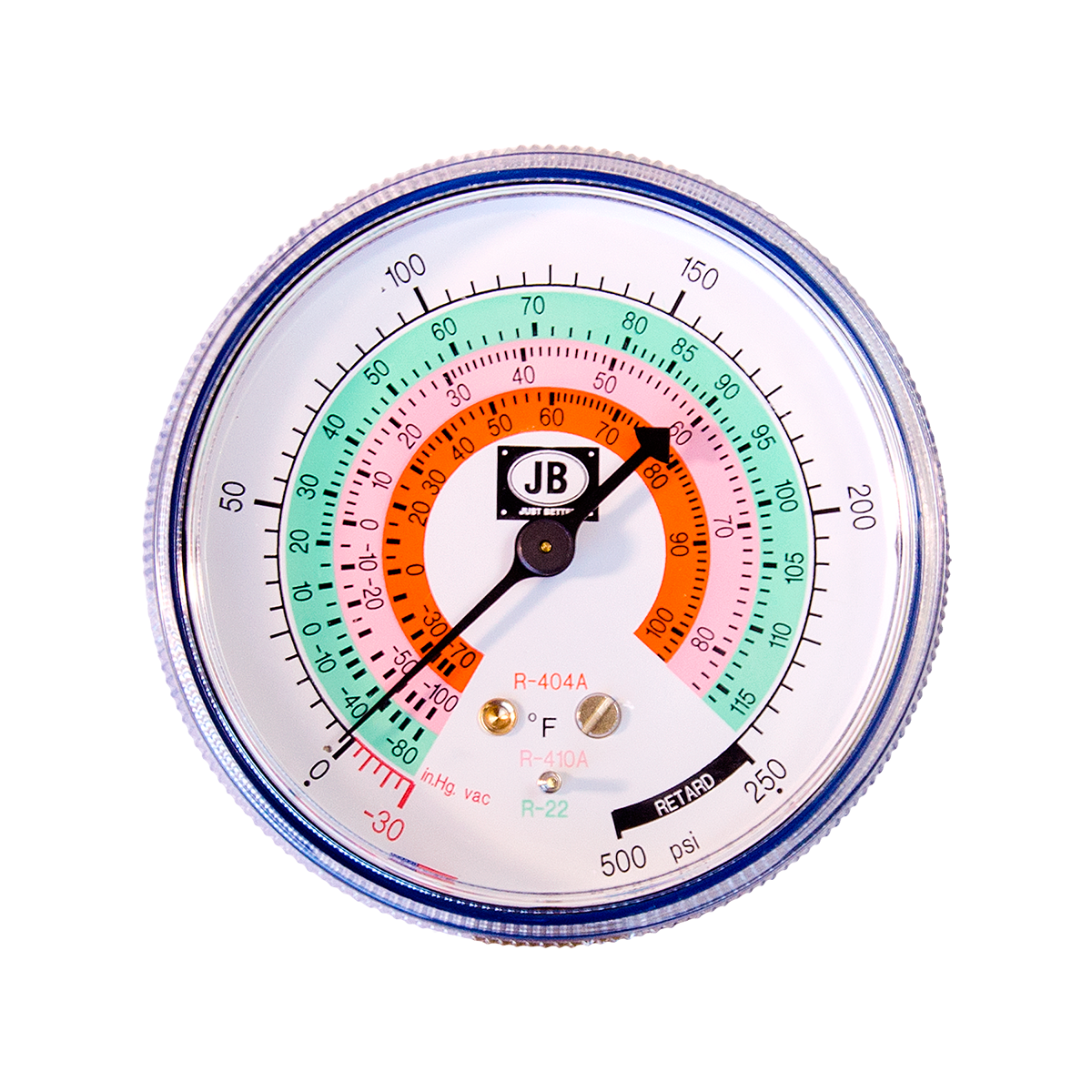

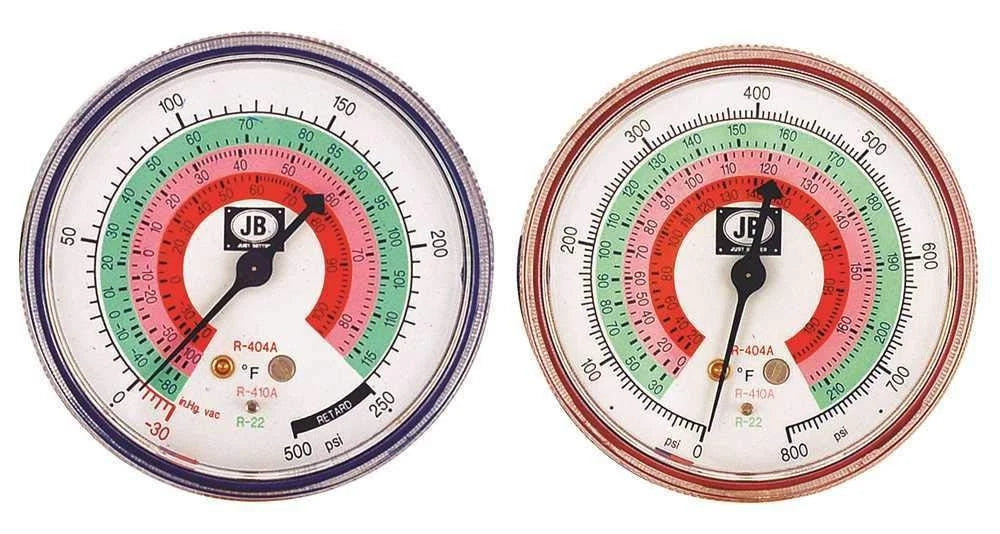

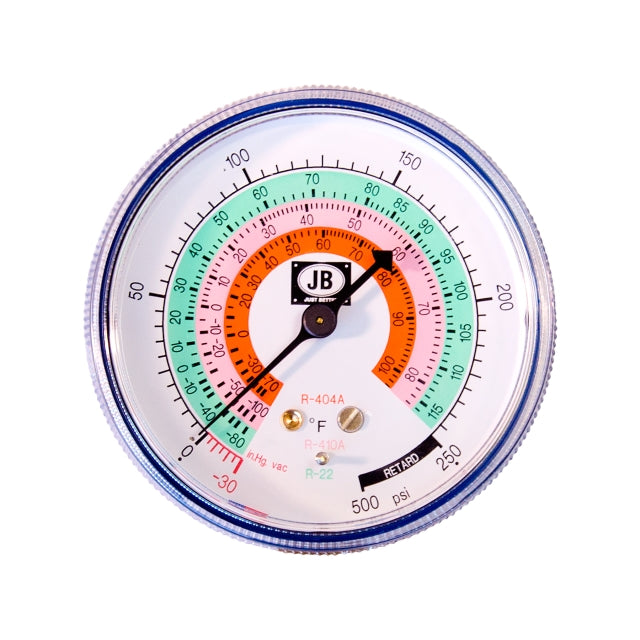

The JB Industries JB-M2-460 is a compound manifold gauge suitable for R22, R404A, and R410A refrigerants. This gauge features a blue low-side gauge with a pressure range from thirty inches of vacuum to two hundred fifty psi, with a retard pressure limit of five hundred psi. It has full-size brass movements and surge dampening for improved accuracy. The recalibration screw allows for easy adjustments. The two and a half-inch face is protected by a high-impact clear Lexan lens. Connections are made with one eighth MPT.

• Compatible with R22, R404A, and R410A refrigerants.
• Pressure range is from thirty vacuum to two hundred fifty psi with a retard of five hundred psi.
• Includes one eighth MPT connections.

Product Highlights

This manifold gauge is designed for professionals needing precision in pressure and vacuum testing. Its robust construction makes it ideal for demanding environments.

Product Information

Standard Information

• Brand: JB Industries
• UPC: 0684520169562

Technical Specifications

• Gauge Fill: Dry
• Color: Blue
• Gauge Purpose: Pressure, Vacuum, Test, Charging, Evacuation
• Refrigerant: R22, R404A, R410A
• Type: Pressure & Vacuum Gauges
• Model: M2-460
• Item Weight: 0.35 pounds
• Quantity Per Pack: 1 pack
• Length: 4 inches
• Width: 1.63 inches
• Height: 6.75 inches
• Gauge Face: 2.5 inches
• Connection: 1/8 inch MPT connection
• Pressure Gauge Type: Standard
• Minimum Pressure: 250 psi
• Maximum Pressure: 500 psi
• Application: Testing Systems
• Case Material: Metal
• Digital: No
