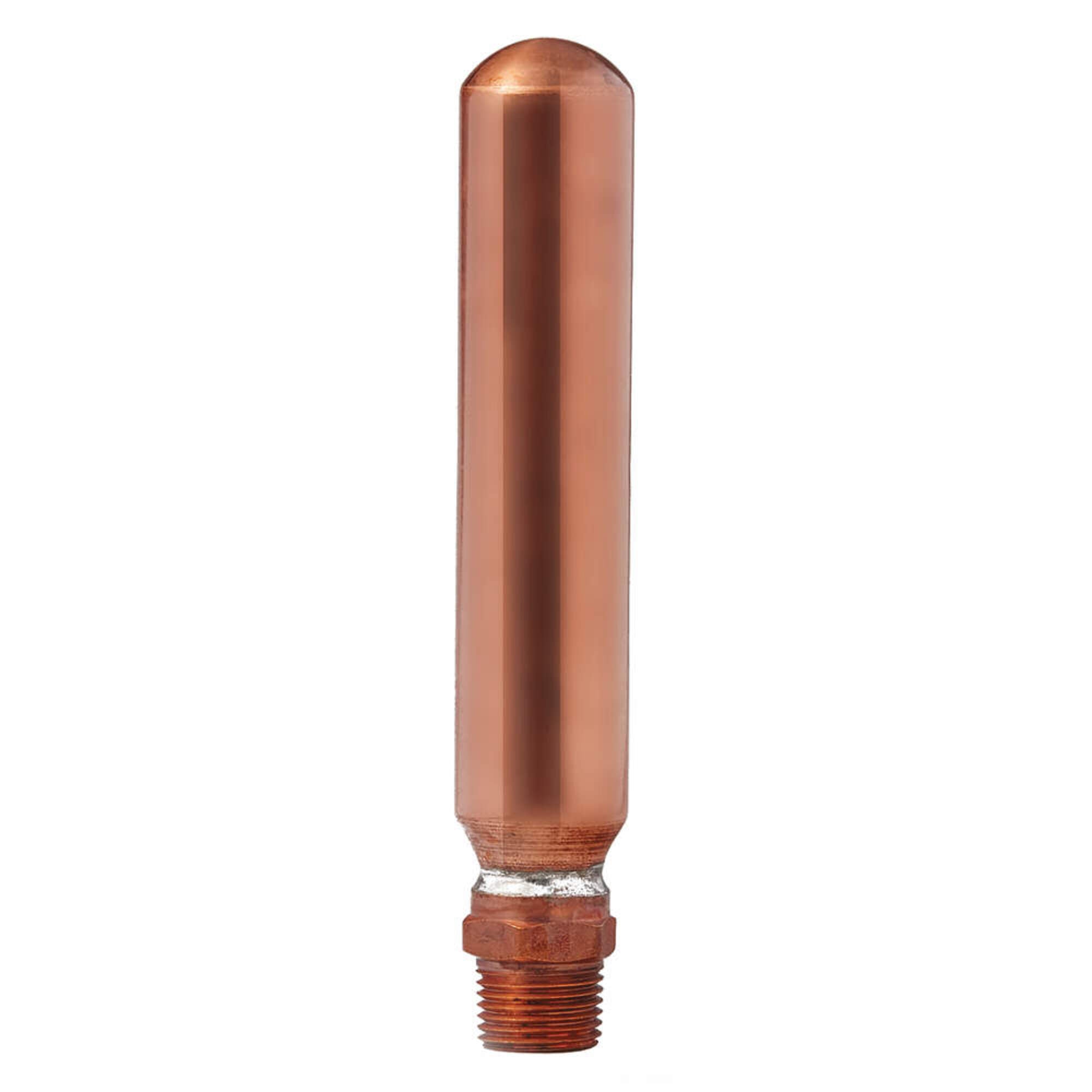

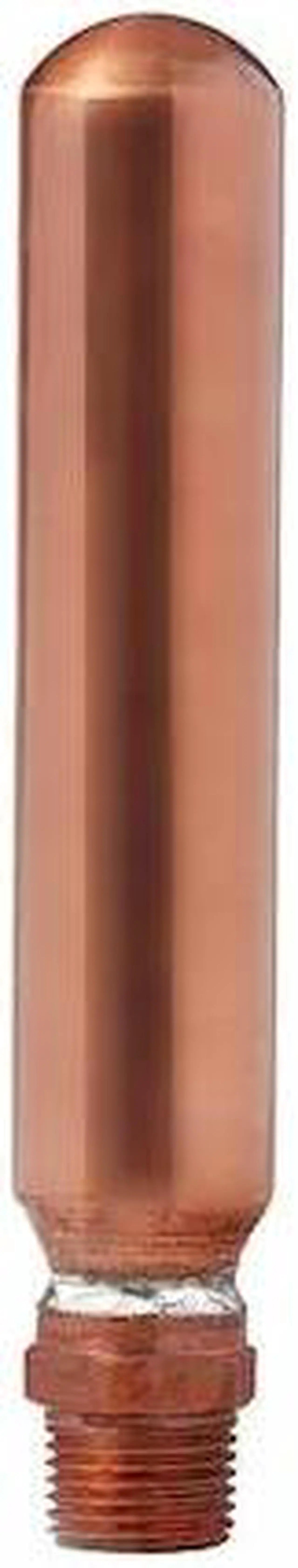

Jay R Smith 520-T-A Piston Water Hammer Arrester 350 psig

Product Description

The Smith 520-T-A Piston Water Hammer Arrester is designed to control water pressure shock and prevent water hammer conditions. It has a 1/2 in nominal pipe size and thread end style, with a 350 psig pressure rating and 60 psig set pressure. It is suitable for installation in new or existing plumbing systems at any angle.

• 1/2 in Nominal, Thread End Style
• 350 psig Pressure, 60 psig Set Pressure
• Suitable for installation in new or existing plumbing systems

Product Highlights

The Smith 520-T-A Water Hammer Arrester is certified for use in potable water conditions.

Product Information

Standard Information

• Brand: JAY R SMITH
• Manufacturer Part Number: 520-T-A
• Country of Origin: South Korea

Technical Specifications

• SKU: 353632981
• Model Number: 520-T-A
• Brand: JAY R. SMITH MFG. CO
• Body Material: Copper
• Connection Type: Threaded
• Pipe Size: 1/2 in
• Factory Set Pressure: 60 psi
• Overall Height: 6-7/8 in
• Diameter: 1-1/8 in
• Max. Pressure: 350 psi
• Temp. Range: 33 to 250 F
• Standards: Asse Standard 1010; File No. 4785; IAPMO Listed
• Compliance: Lead Plumbing Law, Certified By IAPMO R and T, File No. 8477 (NSF/ANSI 372)
• Manufacturer Part Number: 520-T-A
• UNSPSC: 40141719
