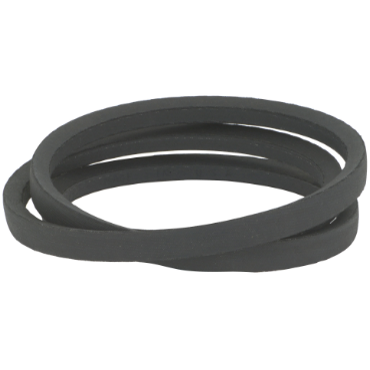

Jason Industrial B54 V-Belt 57 in

Product Description

The Jason Industrial B54 V-Belts are designed for multiple V-belt drives, maintaining drive efficiency. The B54 model features a B section, 57 in outside length, and 21/32 in top width. Constructed with polyester reinforcement and a blend of cotton, natural rubber, polyester, and SBR, it offers resistance to heat and oil.

• Classical belts are built to RMA engineering standard IP-20 and are dual branded with classical multiple size and FHP size
• FHP designation denotes outside length
• Classical designation denotes inside length

Product Highlights

This V-belt ensures matched performance, easy installation, and meets RMA standards for heat and oil resistance, suitable for various industrial applications.

Product Information

Standard Information

• Brand: JASON INDUSTRIAL
• Manufacturer Part Number: B54

Technical Specifications

• Model: B54
• Section Size: B
• Outside Length: 57 in
• Top Width: 21/32 in
• Thickness: 31/32 in
• Angle: 40 deg
• Reinforced Material: Polyester
• Resists: Heat, Oil
• Material: Cotton/Natural Rubber/Polyester Blend/SBR
• Belt Size: B
• Cogged: No
• Belt Cross Section Style: B
• Cross Section Height: 13/32 in
• Inside Length: 54 in
• Belt Style: Non-Cogged
• Cross Section Width: 21/32 in
• Belt Match: 1
