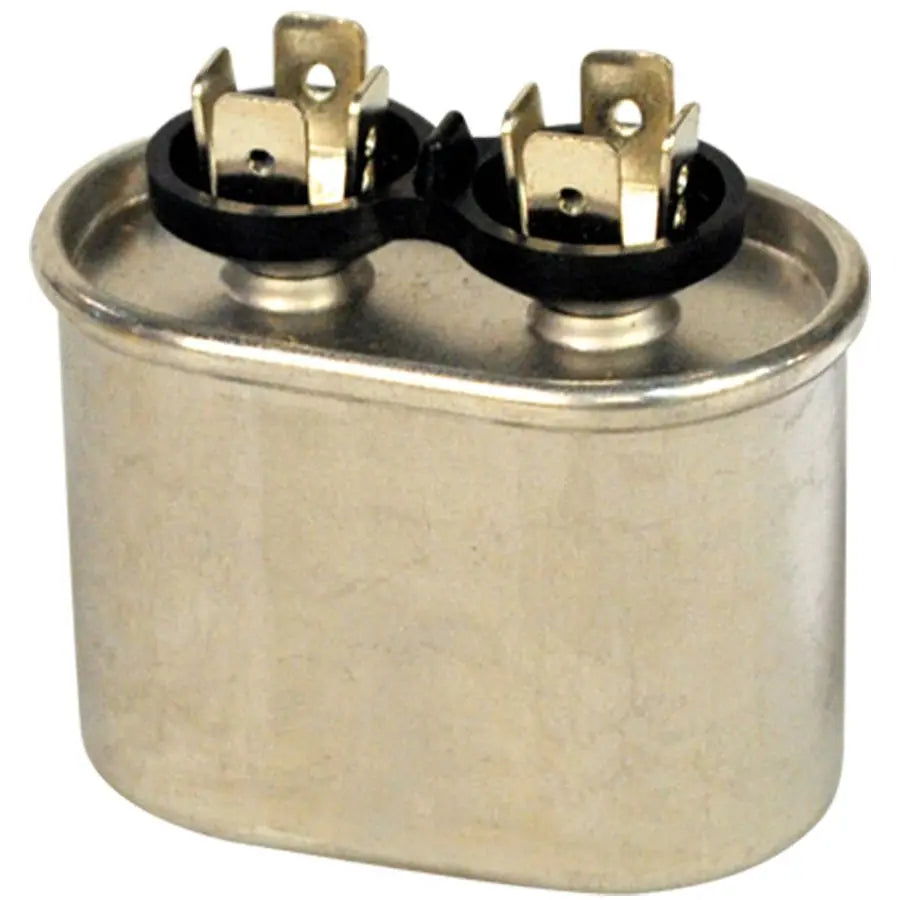

Jard 12963 20/5 mfd 370V Oval Run Capacitor

Product Description

The JARD 12963 is a 20/5 Mfd 370V oval run capacitor with a wide selection of ratings. These non-PCB capacitors offer economy and quality. UL Listed and CSA certified, these capacitors are perfect for general replacements due to their compact dimensions. A physical interrupter enhances safety.

• Widest selection of ratings in the industry
• Non-PCB capacitors
• UL Listed
• Perfect for general replacements - smallest dimensions available

Product Highlights

This dual section run capacitor is primarily used to serve two microfarad applications and can be used in various combinations for other microfarad ratings.

Product Information

Standard Information

• Brand: JARD
• Manufacturer Part Number: 12963
• Country of Origin: Mexico

Technical Specifications

• Brand: JARD
• MPN: 12963
• Capacitor Type: Dual Run Capacitor
• Shape: Oval
• MFD Rating: 20/5
• Voltage: 370
• Hz: 50/60
• Case Height (in.): 2.375
• Width (in.): 2.81
• Overall Height (in.): 2.875
• Depth (in.): 1.81
• Temp. Range: -40°C to +70°C
• Operational Life: 60,000 Hrs.
• Terminals: 4
• Composition: Aluminum
• Microfarad Rating (MFD): 20+5 µF
• Material: Aluminum
• Supply Voltage: 370V
• Hertz: 50/60Hz
• Product Width: 2.806 "
• Product Length/Depth: 1.806 "
