Jacobs 7319DN Drill Chuck Arbor JT33 Mount 3MT Shank

Product Description

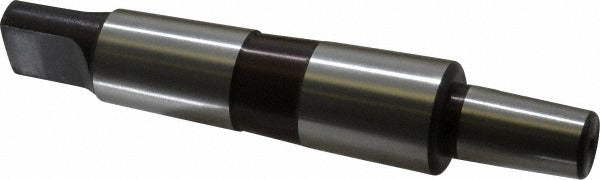

The JACOBS 7319DN is a taper drill chuck arbor designed to connect a Jacobs Taper 33 (JT33) drill chuck to a No. 3 Morse Taper (3MT) spindle or tailstock. This arbor serves as the mechanical interface between the chuck and the machine, transmitting rotational force while maintaining precise axial alignment. It is a standard component in drilling setups where the chuck and spindle use different taper standards. Machinists, tool and die technicians, and maintenance mechanics install this type of arbor in drill presses, lathes, and milling machine setups that require a JT33 chuck connection on a 3MT spindle.

This arbor fits drilling applications in both production and maintenance environments. It is suited for use on floor-standing and benchtop drill presses with a No. 3 Morse Taper spindle bore, as well as lathe tailstocks configured for 3MT tooling. The JT33 mount end accepts any drill chuck manufactured to the Jacobs Taper 33 specification. This makes it a direct-fit component for replacing worn or damaged arbors in existing setups without retooling the spindle or the chuck.

Key Features

• JT33 mount taper interfaces with Jacobs Taper 33 drill chucks
• No. 3 Morse Taper shank seats directly into 3MT spindles and tailstocks
• Tapered mount and shank design provides self-centering, interference-fit connection without fasteners
• Compact, single-piece construction minimizes runout between chuck and spindle centerline
• Weighs 0.6875 pounds - lightweight enough for easy single-hand installation and removal

Compatibility

Designed as a direct-fit arbor for drill chucks with a JT33 (Jacobs Taper No. 33) mount installed on machines with a No. 3 Morse Taper spindle or tailstock bore.

Installation Notes

Installation is performed by machinists or maintenance mechanics. Before installing or removing the arbor, power down the machine and confirm the spindle is fully stopped. Clean both the 3MT shank and the spindle bore with a lint-free cloth to remove chips, oil, and debris - contamination on taper surfaces causes runout and premature loosening. Drive the arbor firmly into the spindle bore by hand or with a soft-faced mallet; use a drift and knockout slot to remove it. Never use a steel hammer directly on the arbor or chuck body.
